Combined Instrument

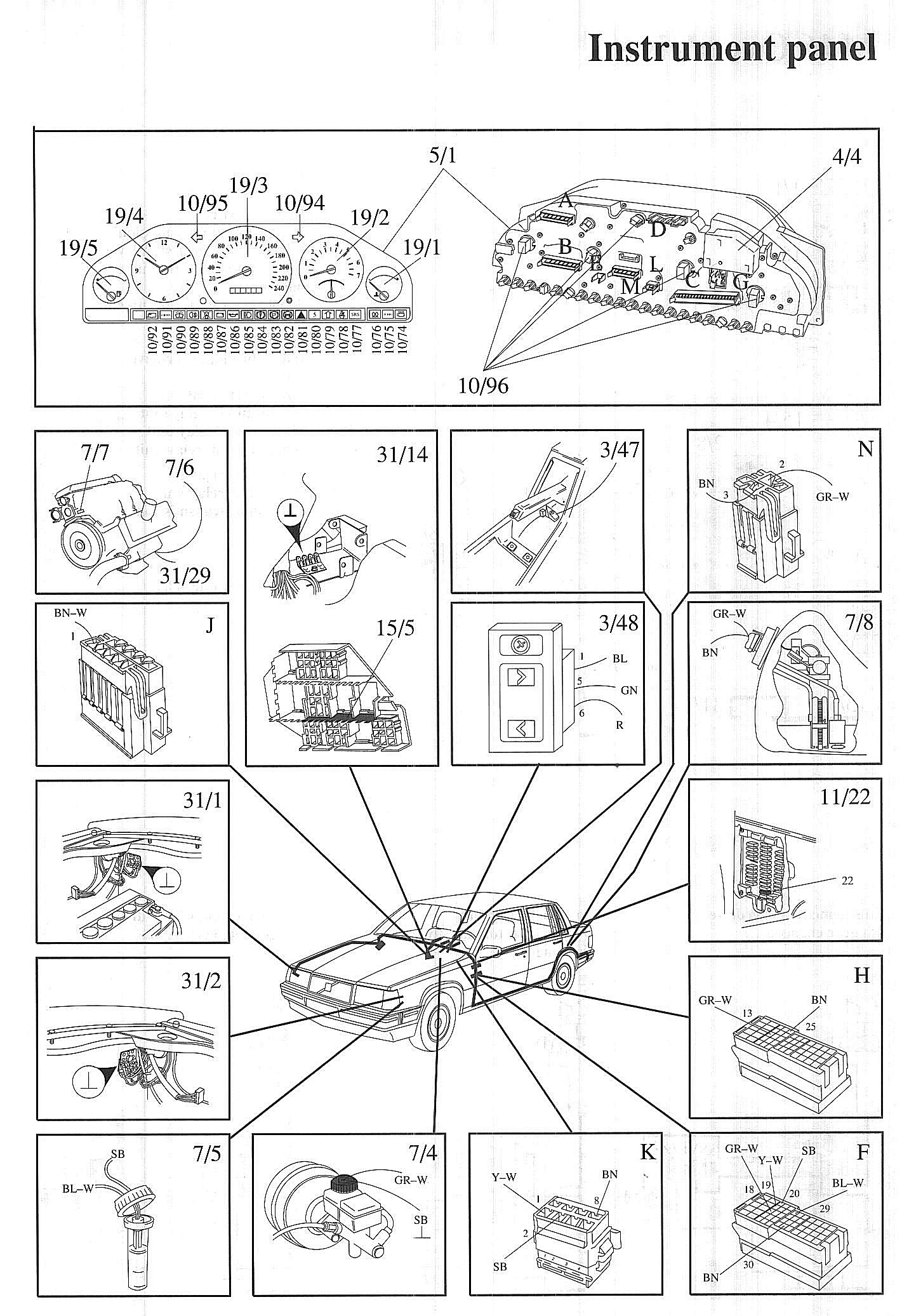

Component / Connector Views:

Wiring Diagrams:

LEGEND
1/1 Battery
2/9 Relay, ETC
3/1 Ignition switch
3/47 Switch, parking brake
3/48 Clock set buttons
4/4 Rheostat
4/5 Safety circuit, SRS
5/1 Instrument panel
7/4 Brake fluid level sensor
7/5 Washer fluid level sensor
7/6 Oil pressure sensor
7/7 Coolant temperature sensor
7/8 Fuel level sensor

10/74 Indicator light, exhaust gas temperature
10/75 Indicator light, charge air over pressure
10/76 Indicator light, diesel preheater
10/77 Warning light, SRS
10/78 Seat belt reminder light
10/79 Indicator light, overdrive disengaged
10/80 Indicator light, overdrive
10/81 Indicator light, ETC
10/82 Warning light, ABS
10/83 Parking brake reminder light
10/84 Brake failure warning light
10/85 Indicator light, high beams
10/86 Oil pressure warning light
10/87 Alternator warning light
10/88 Indicator light, bulb failure warning sensor
10/89 Indicator light, rear fog light
10/90 Indicator light, washer fluid level
10/91 Service reminder light
10/92 Indicator light, trailer
10/94 Indicator light, direction indicator, right
10/95 Indicator light, direction indicator, left
10/96 Instrument panel light
11/22 Fuse
15/1 Positive terminal
15/5 31 terminal, relay unit
19/1 Coolant temperature gauge
19/2 Tachometer
19/3 Speedometer
19/4 Clock
19/5 Fuel gauge
20/3 Speed warning
31/1 Ground point, right front fender
31/2 Ground point, left front fender
31/9 Ground point, parking brake
31/14 Ground point, relay unit
31/29 Ground point, engine
