Fuel Injection System

Component / Connector Views:

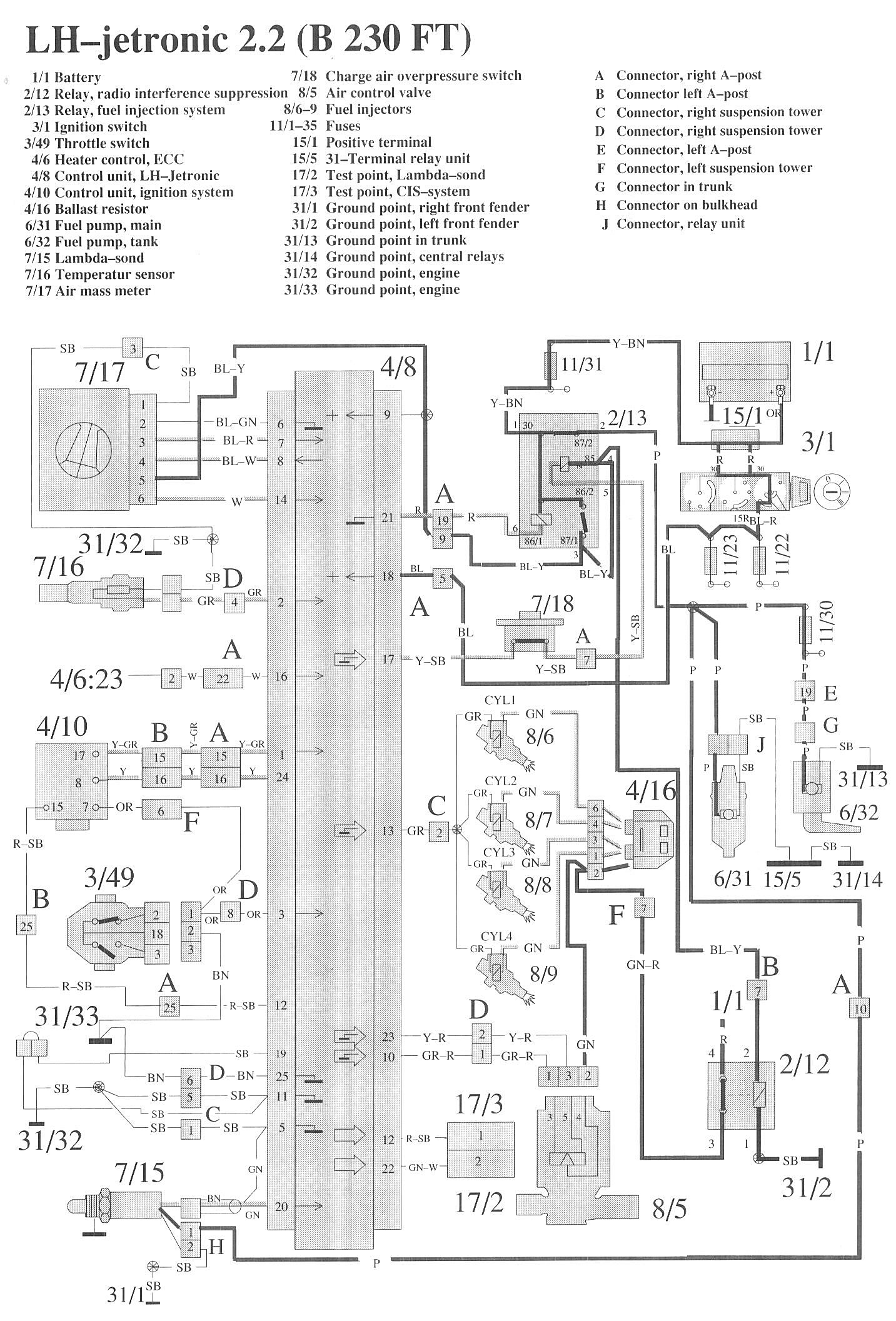

Wiring Diagrams:

LEGEND
1/1 Battery
2/12 Relay, radio interference suppress
2/13 Relay, fuel injection system
3/1 Ignition switch
3/49 Throttle switch
4/6 Heater control, ECC
4/8 Control unit, LH-Jetronic
4/10 Control unit, ignition system
4/16 Ballast resistor
6/31 Fuel pump, main
6/32 Fuel pump, tank
7/15 Lambda-sond
7/16 Temperature sensor
7/17 Air mass meter
7/18 Charge air overpressure switch ion
8/5 Air control valve
8/6-9 Fuel injectors

11/1-35 Fuses
15/1 Positive terminal
15/5 31-Terminal relay unit
17/2 Test point, Lambda-sond
17/3 Test point, CIS-system
31/1 Ground point, right front fender
31/2 Ground point, left front fender
31/13 Ground point in trunk
31/14 Ground point, central relays
31/32 Ground point, engine
31/33 Ground point, engine
