Ignition System

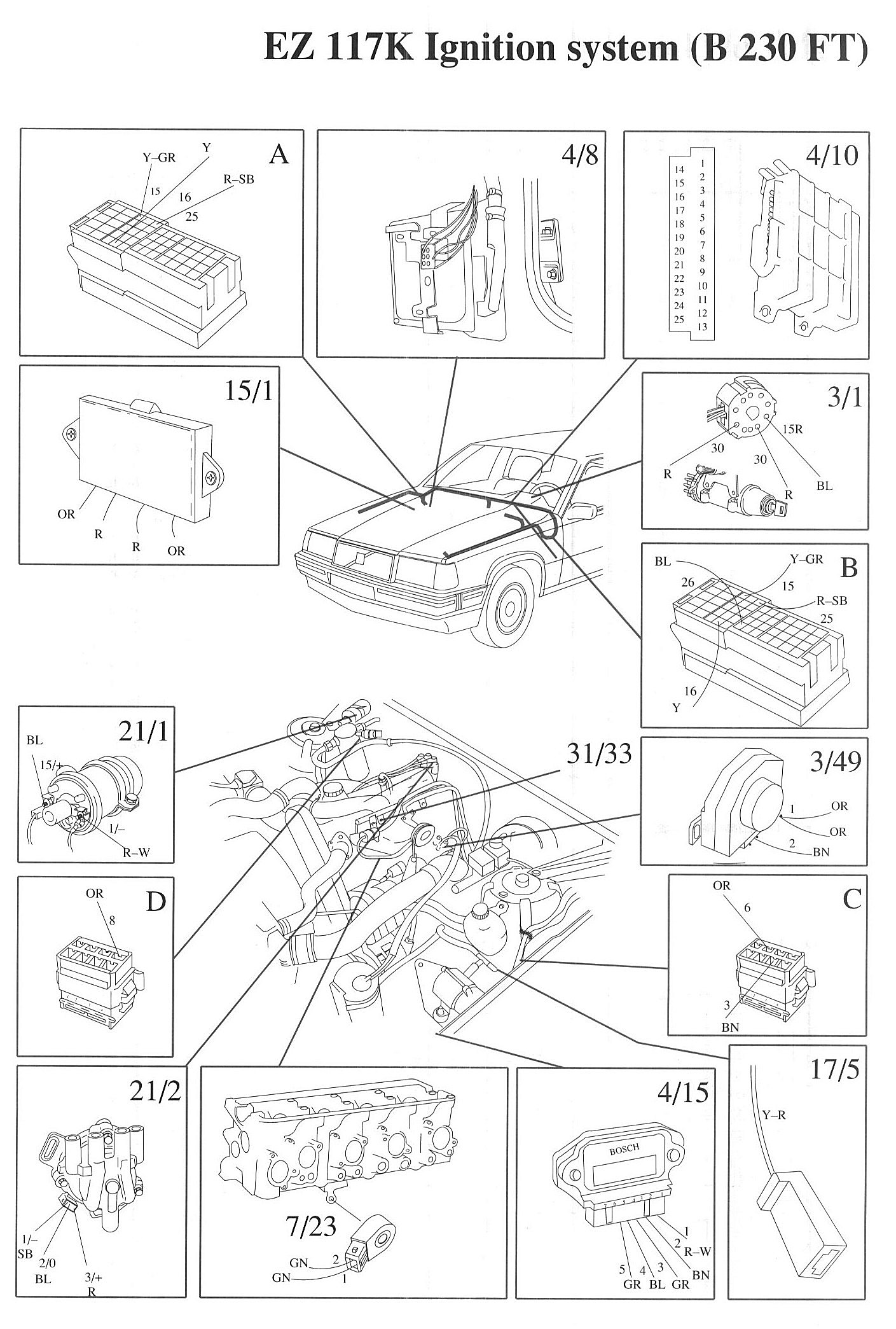

Component / Connector Views:

Wiring Diagrams:

LEGEND
1/1 Battery
2/11 Relay, electric cooling fan
3/1 Ignition switch
3/49 Throttle switch
4/8 Control unit, fuel system
4/10 Control unit, ignition system
4/15 Power stage, ignition system
7/14 Thermostat, electrical cooling
7/23 Knock sensor

15/1 Positive terminal
17/5 Test socket, ignition system
21/1 Ignition coil
21/2 Distributor
21/3-6 Spark plugs
31/33 Ground point on engine fan
