Windshield Wash/Wipe

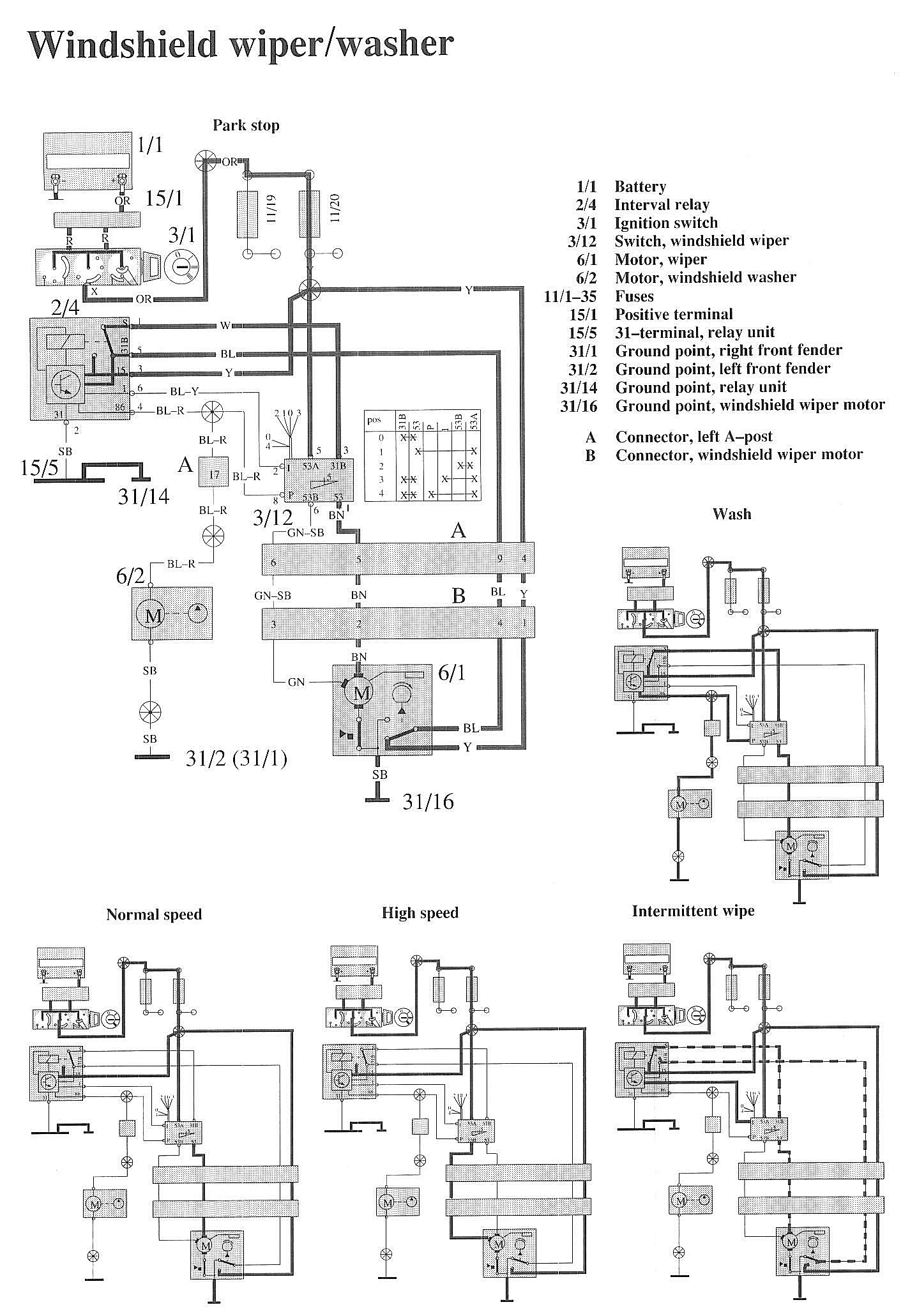

Wiring Diagrams:

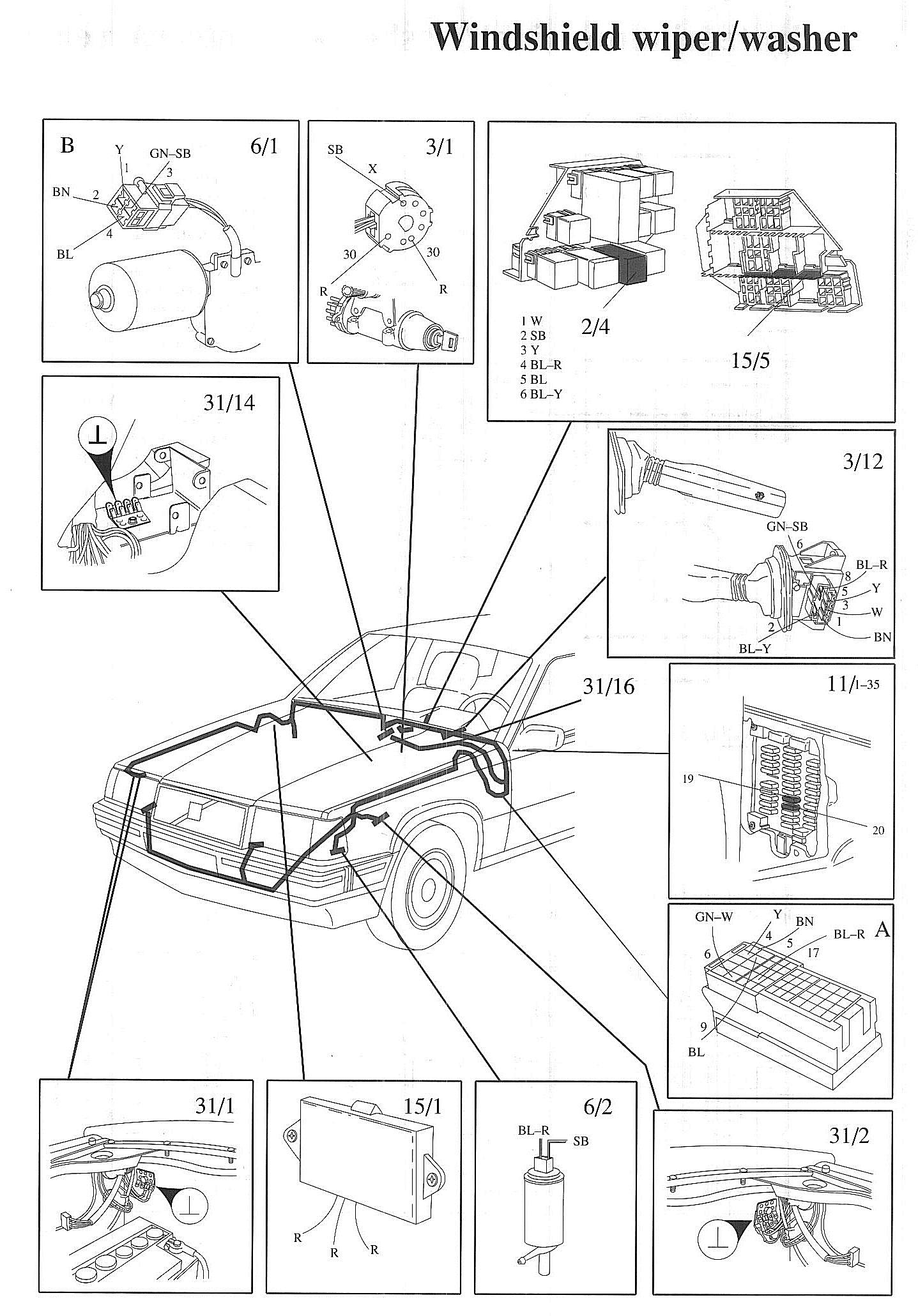

Component / Connector Views:

LEGEND
1/1 Battery
2/4 Interval relay
3/1 Ignition switch
3/12 Switch, windshield wiper
6/1 Motor, wiper
6/2 Motor, windshield washer

11/1-35 Fuses
15/1 Positive terminal
15/5 31-terminal, relay unit
31/1 Ground point, right front fender
31/2 Ground point, left front fender
31/14 Ground point, relay unit
31/16 Ground point, windshield wiper motor
