Radio/Stereo: Locations

Component / Connector Views:

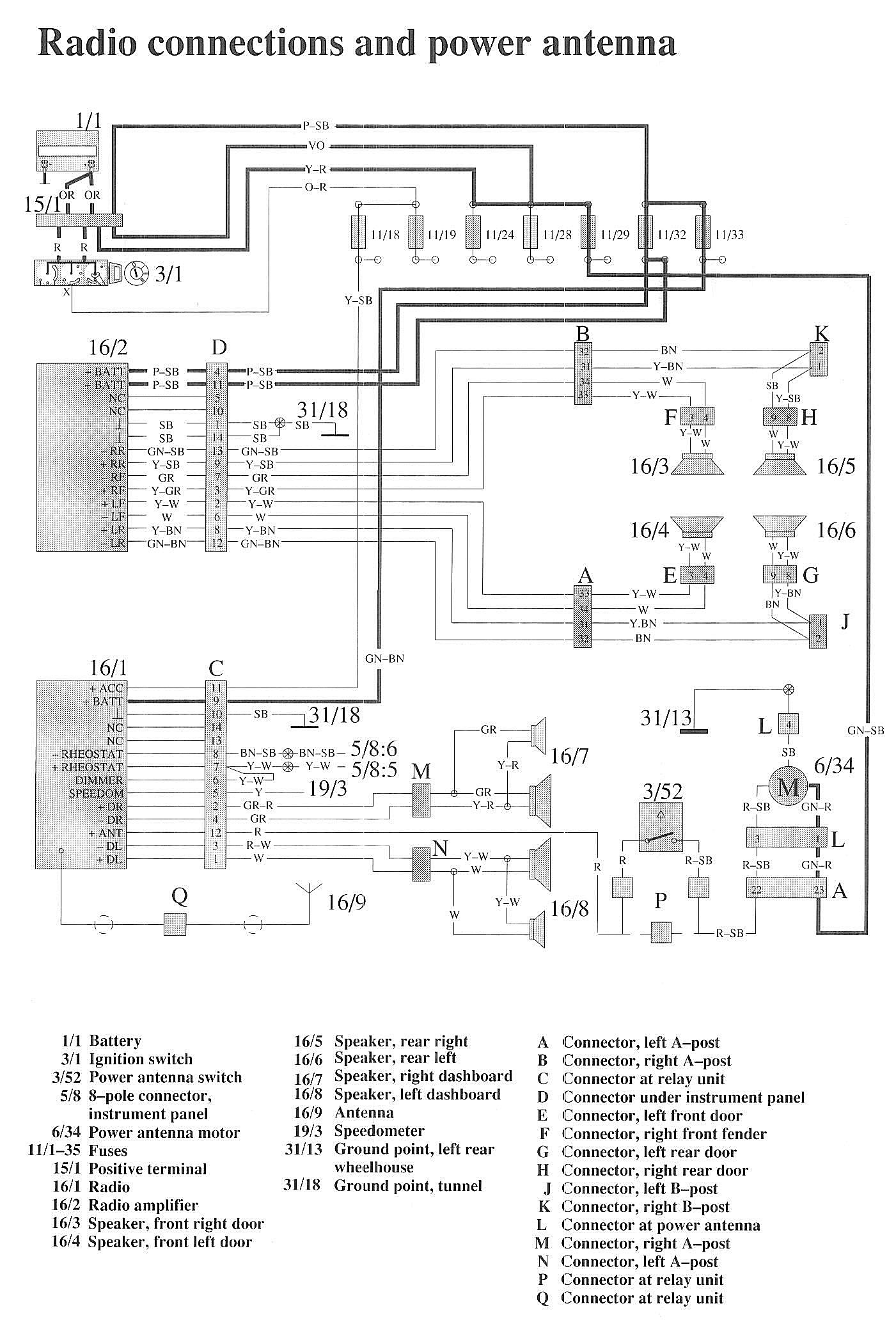

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition switch
3/52 Power antenna switch
5/8 8-pole connector, instrument panel
6/34 Power antenna motor

11/1-35 Fuses
15/1 Positive terminal
16/1 Radio
1612 Radio amplifier
16/3 Speaker, front right door
16/4 Speaker, front left door
16/5 Speaker, rear right
16/6 Speaker, rear left
16/7 Speaker, right dashboard
16/8 Speaker, left dashboard
16/9 Antenna
19/3 Speedometer
31/13 Ground point, left rear wheelhouse
31/18 Ground point, tunnel
