Power Door Mirrors

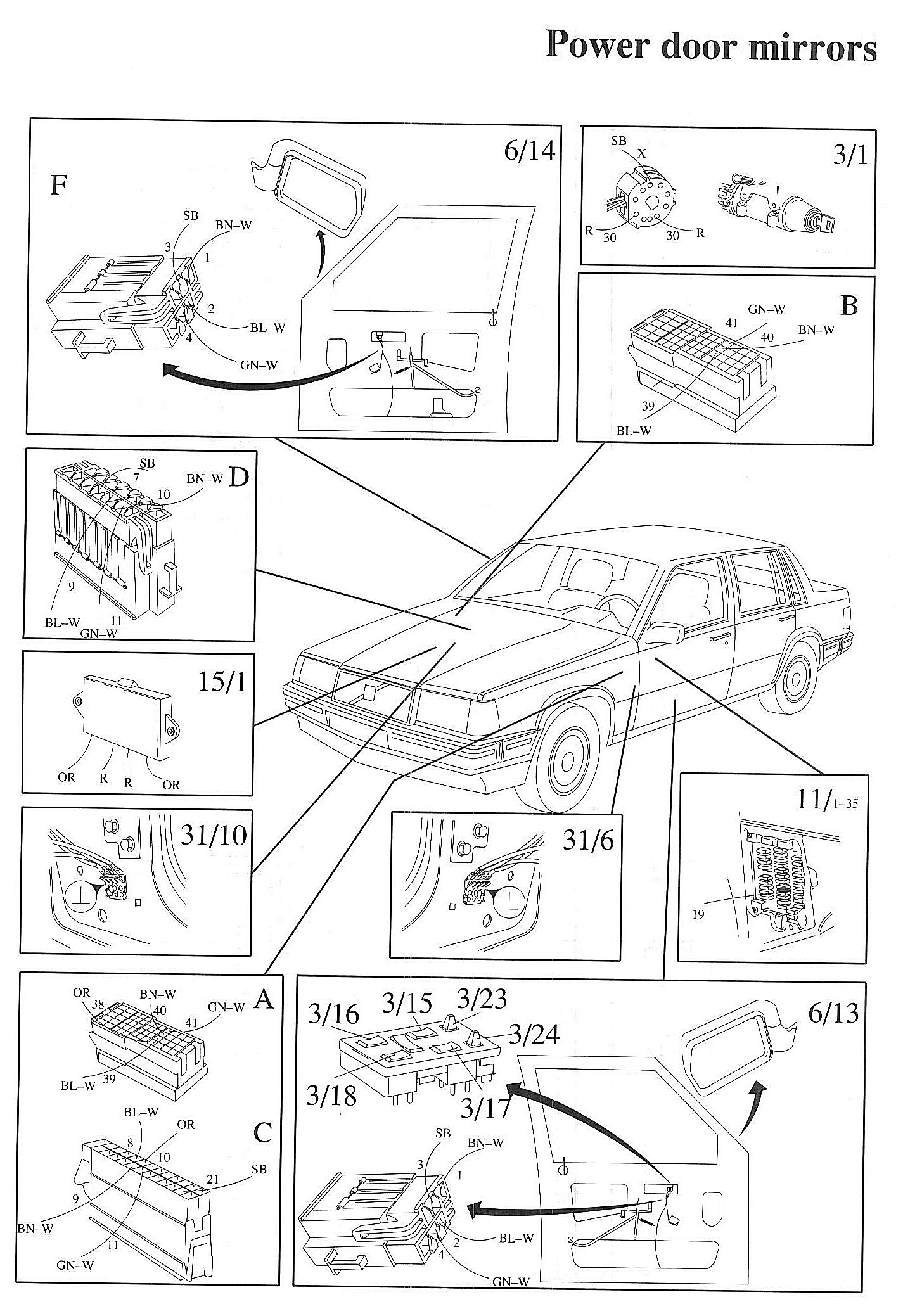

Component / Connector Views:

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition switch
3/15-18 Power window switches, driver door
3/23 Power door mirror switch, driver side
3/24 Power door mirror switch, passenger side
6/13 Power mirror, driver side
6/14 Power mirror, passenger side

11/1-35 Fuses
15/1 Positive terminal
31/6 Ground point, left A-post
31/10 Ground point, right A-post
