Sunroof / Moonroof: Locations

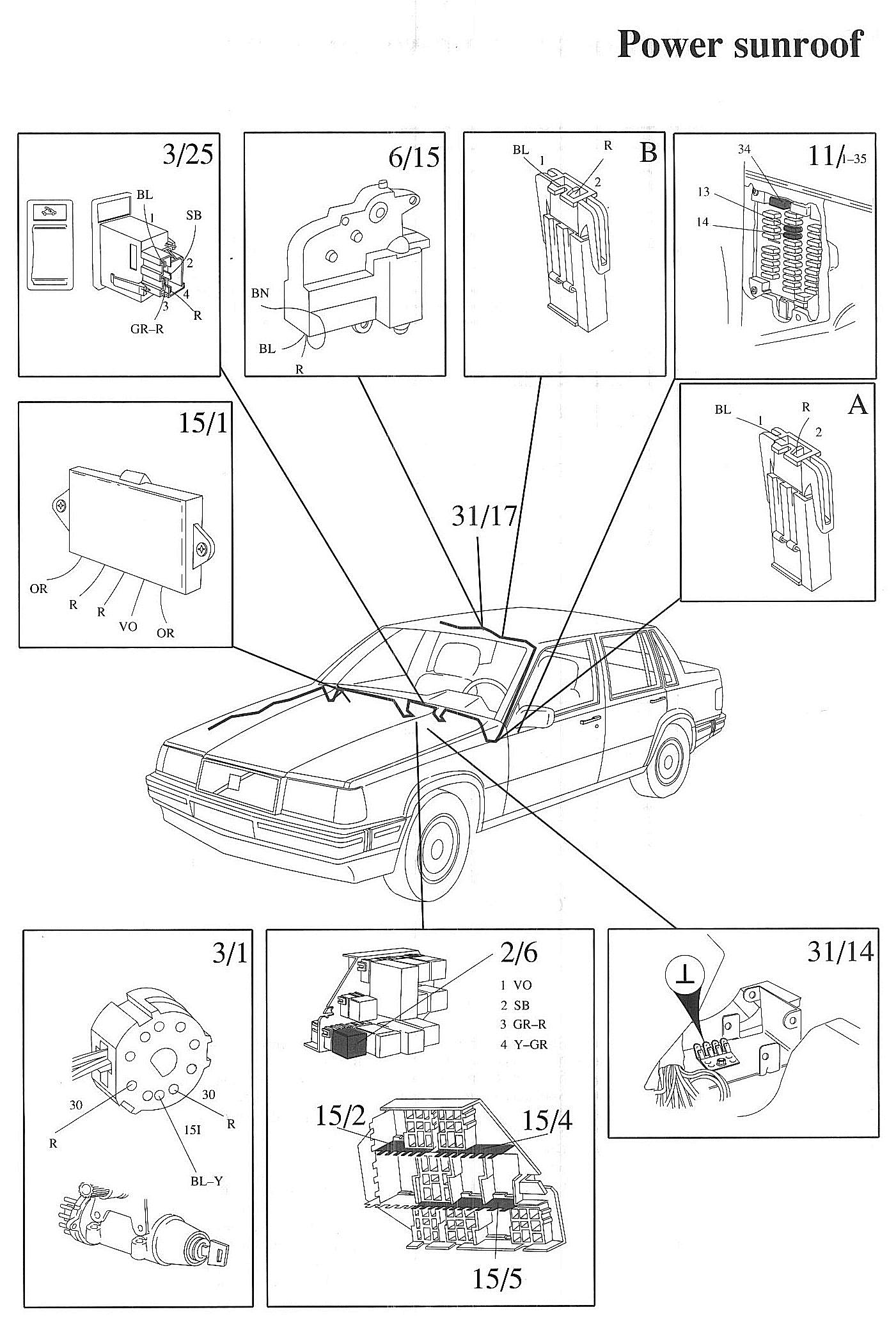

Component / Connector Views:

Wiring Diagrams:

LEGEND
1/1 Battery
2/6 Headlight relay 15I
3/1 Ignition switch
3/25 Sunroof switch
6/15 Sunroof motor

11/1-35 Fuses
15/1 Positive terminal
15/2 30-terminal, relay unit
15/4 15I-terminal, relay unit
15/5 31-terminal, relay unit
31/14 Ground point, relay unit
31/17 Ground point, sunroof motor
