Backup Lamp

Wiring Diagrams:

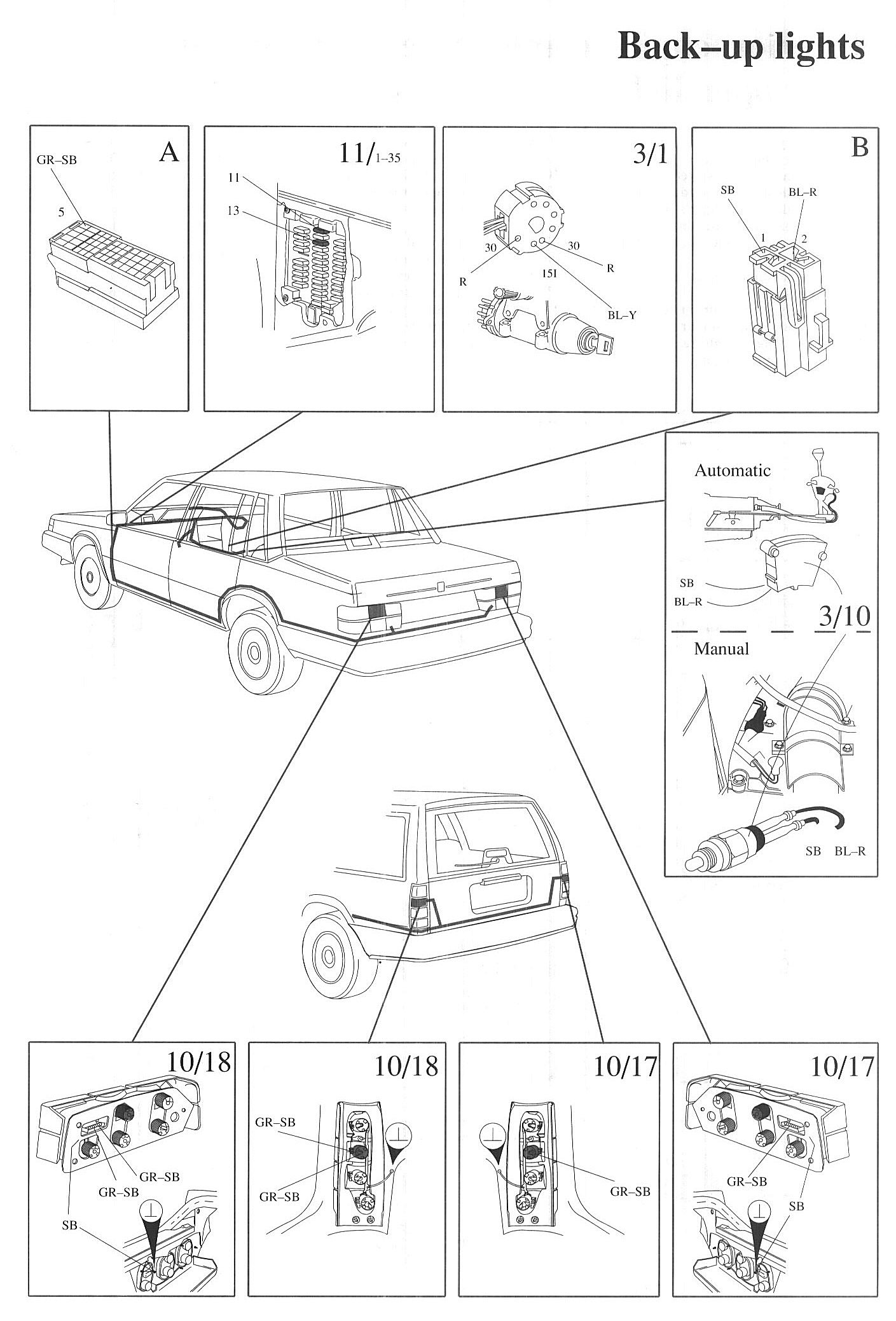

Component / Connector Views:

LEGEND
1/1 Battery
3/1 Ignition switch
3/10 Back-up light switch

10/17 Right tail light
10/18 Left tail light
10/48 Right back-up light
10/55 Left hack-up light
11/1-35 Fuses
15/1 Positive terminal
31/11 Ground point, left tail light
31/12 Ground point, right tail light
