Overdrive Assembly, M/T

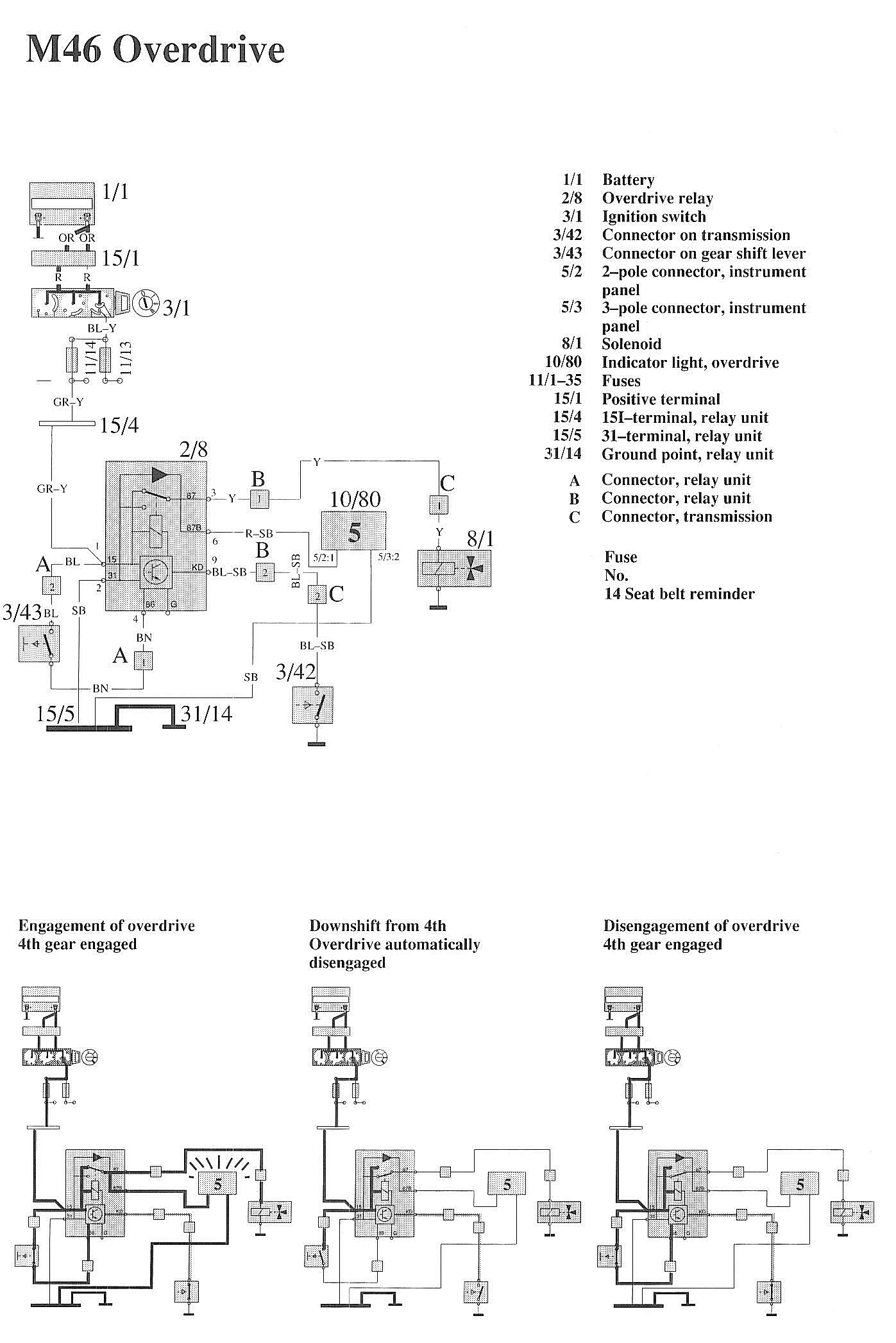

Wiring Diagrams:

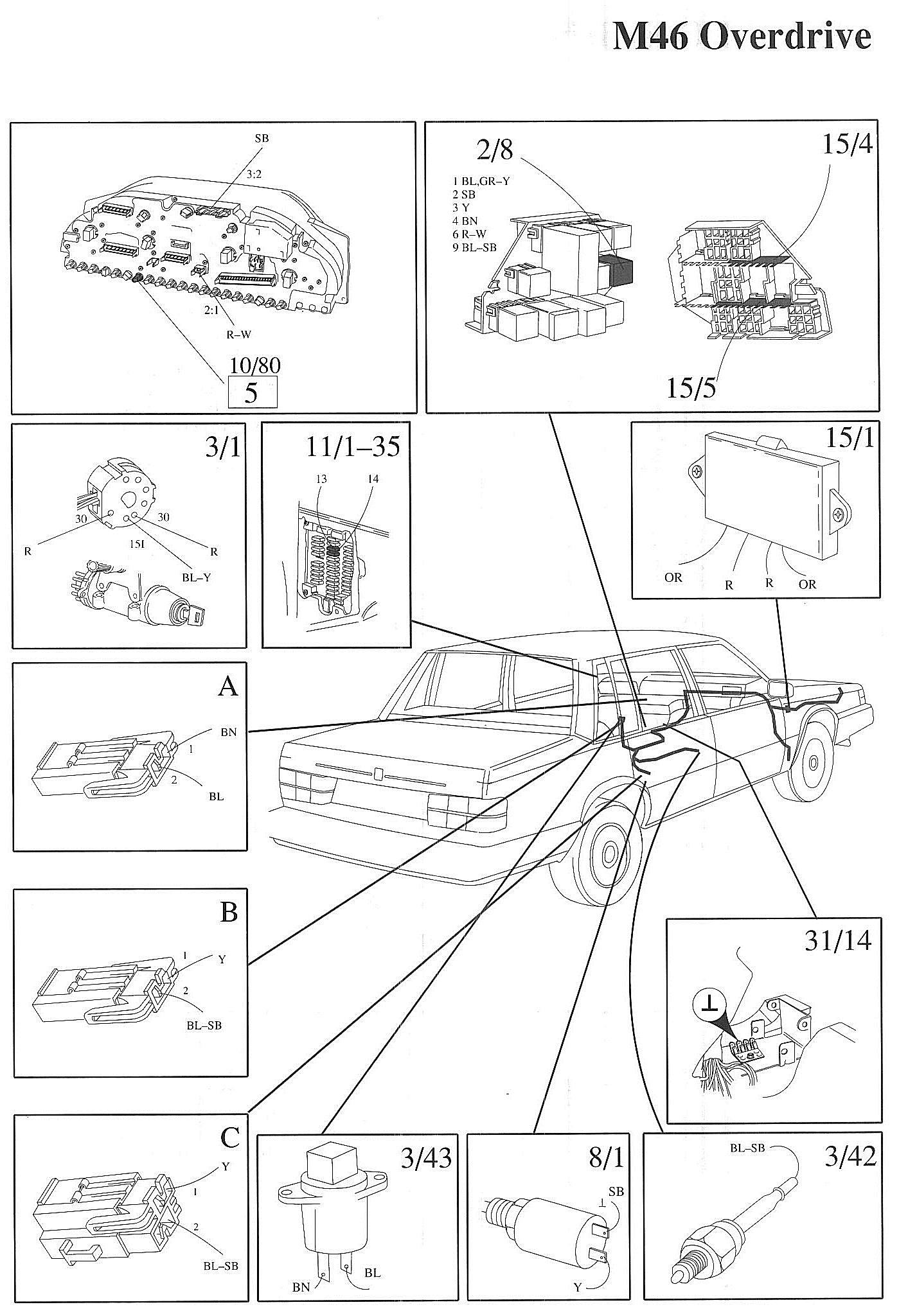

Component / Connector Views:

LEGEND
1/1 Battery
2/8 Overdrive relay
3/1 Ignition switch
3/42 Connector on transmission
3/43 Connector on gear shift lever
5/2 2-pole connector, instrument panel
5/3 3-pole connector, instrument panel
8/1 Solenoid

10/80 Indicator light, overdrive
11/1-35 Fuses
15/1 Positive terminal
15/4 15I-terminal, relay unit
15/5 31-terminal, relay unit
31/14 Ground point, relay unit
