Bulb Failure Warning Sensor

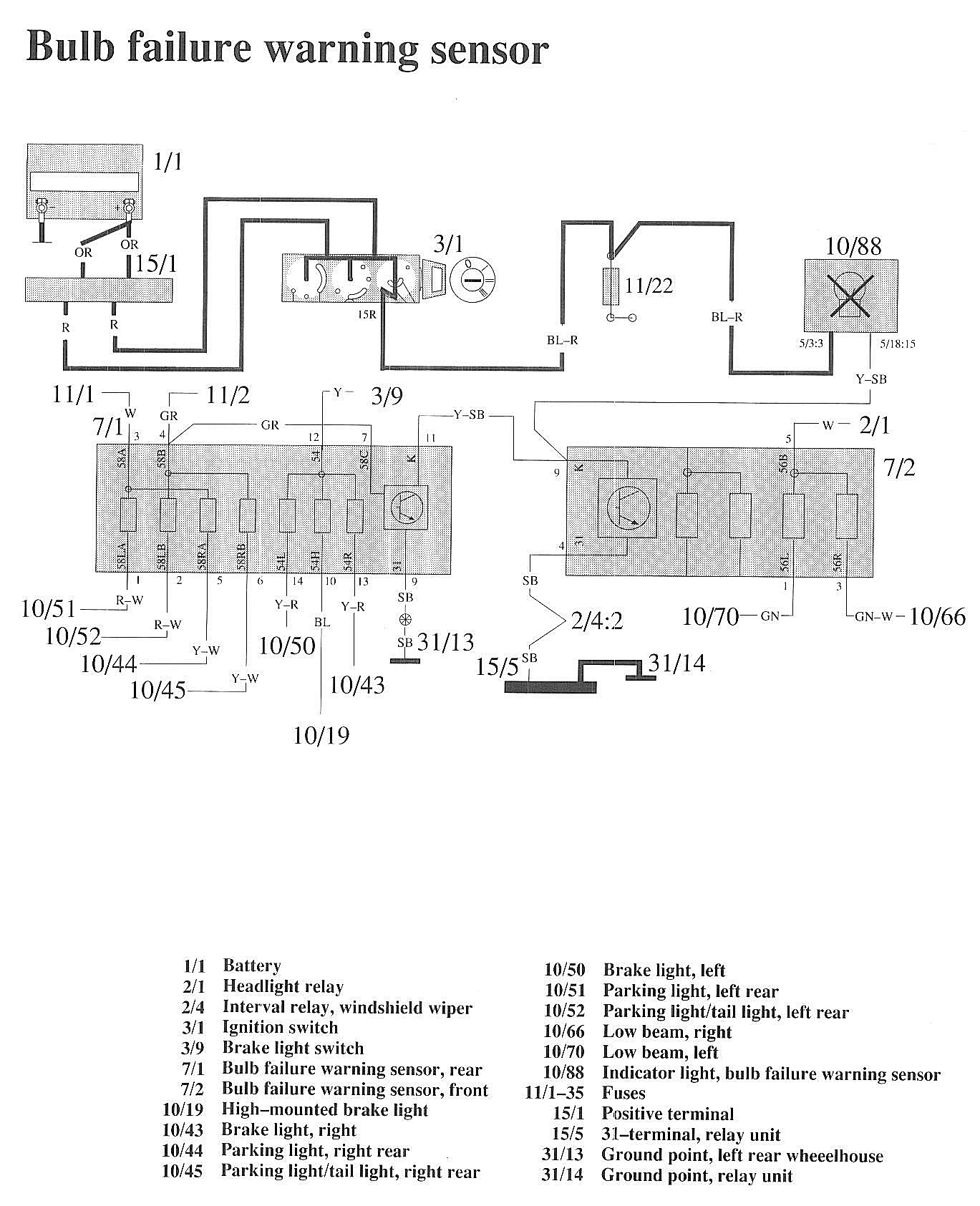

Wiring Diagrams:

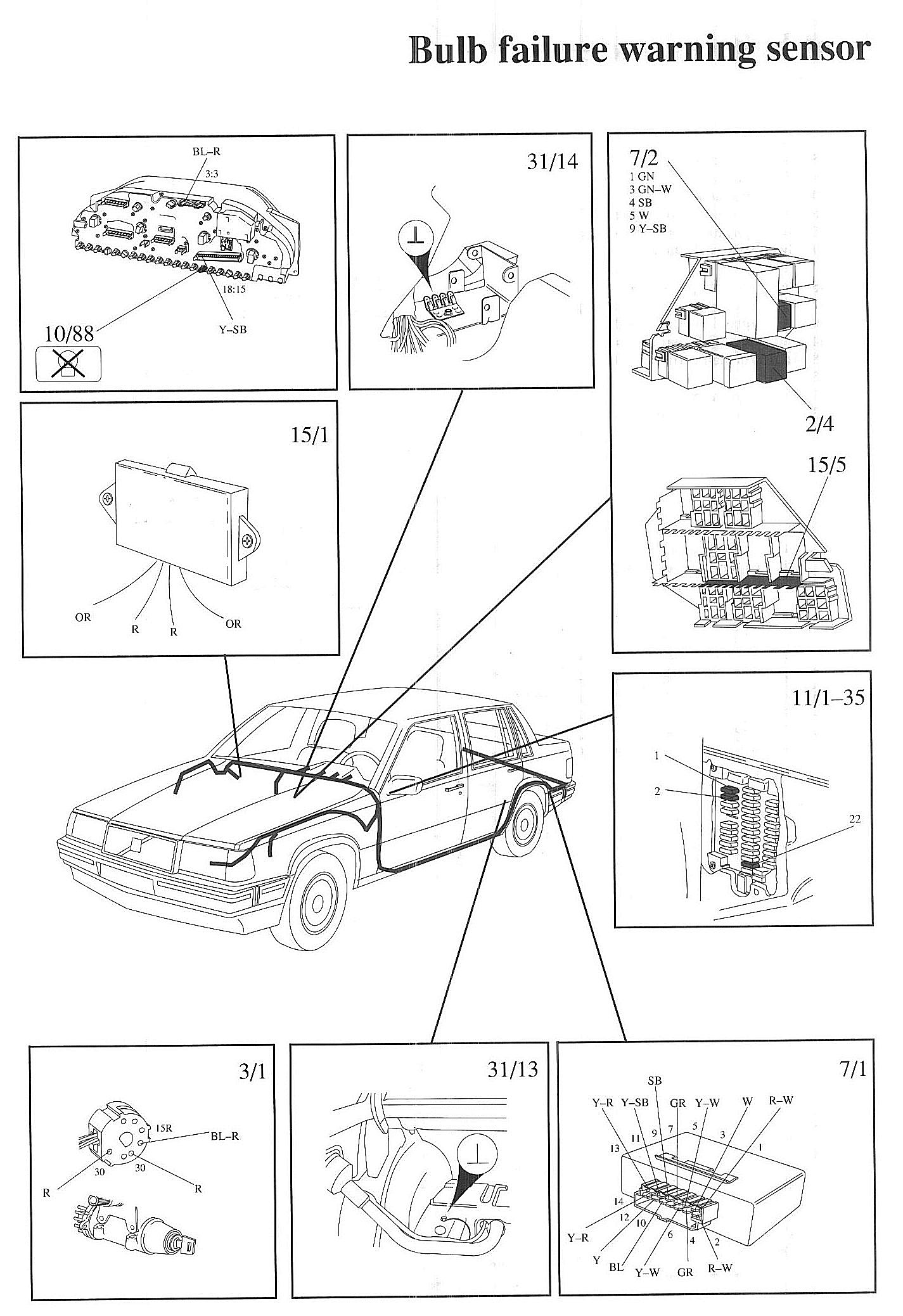

Component / Connector Views:

LEGEND
1/1 Battery
2/1 Headlight relay
214 Interval relay, windshield wiper
3/1 Ignition switch
319 Brake light switch
7/1 Bulb failure warning sensor, rear
7/2 Bulb failure warning sensor, front

10/19 High-mounted brake light
10/43 Brake light, right
10/44 Parking light, right rear
10/45 Parking light/tail light, right rear
10/50 Brake light, left
10/51 Parking light, left rear
10/52 Parking light/tail light, left rear
10/66 Low beam, right
10/70 Low beam, left
10/88 Indicator light, bulb failure warning sensor
11/1-35 Fuses
15/1 Positive terminal
15/5 31-terminal, relay unit
31/13 Ground point, left rear wheelhouse
31/14 Ground point, relay unit
