Instrument and Control Panel Lighting

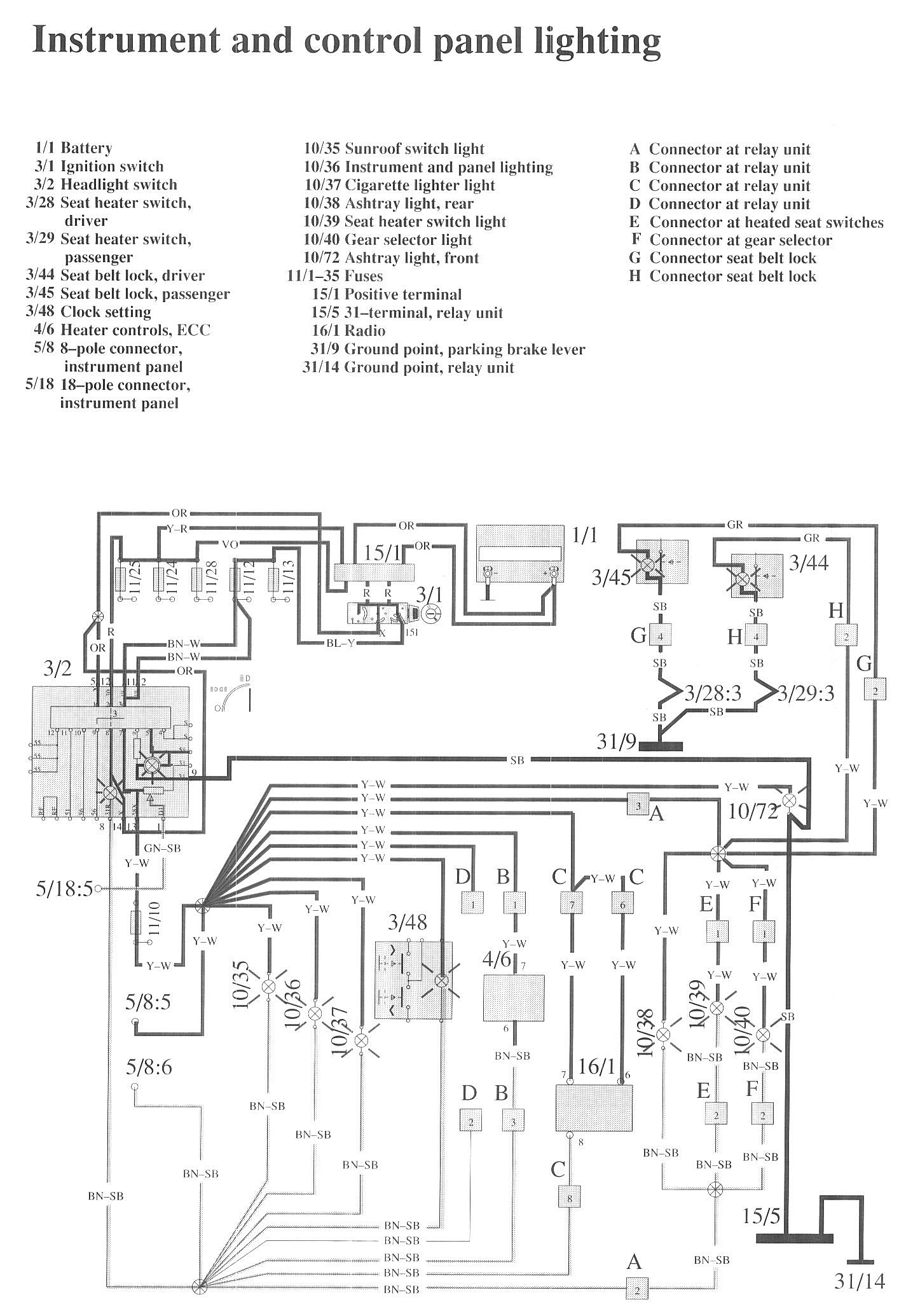

Wiring Diagrams:

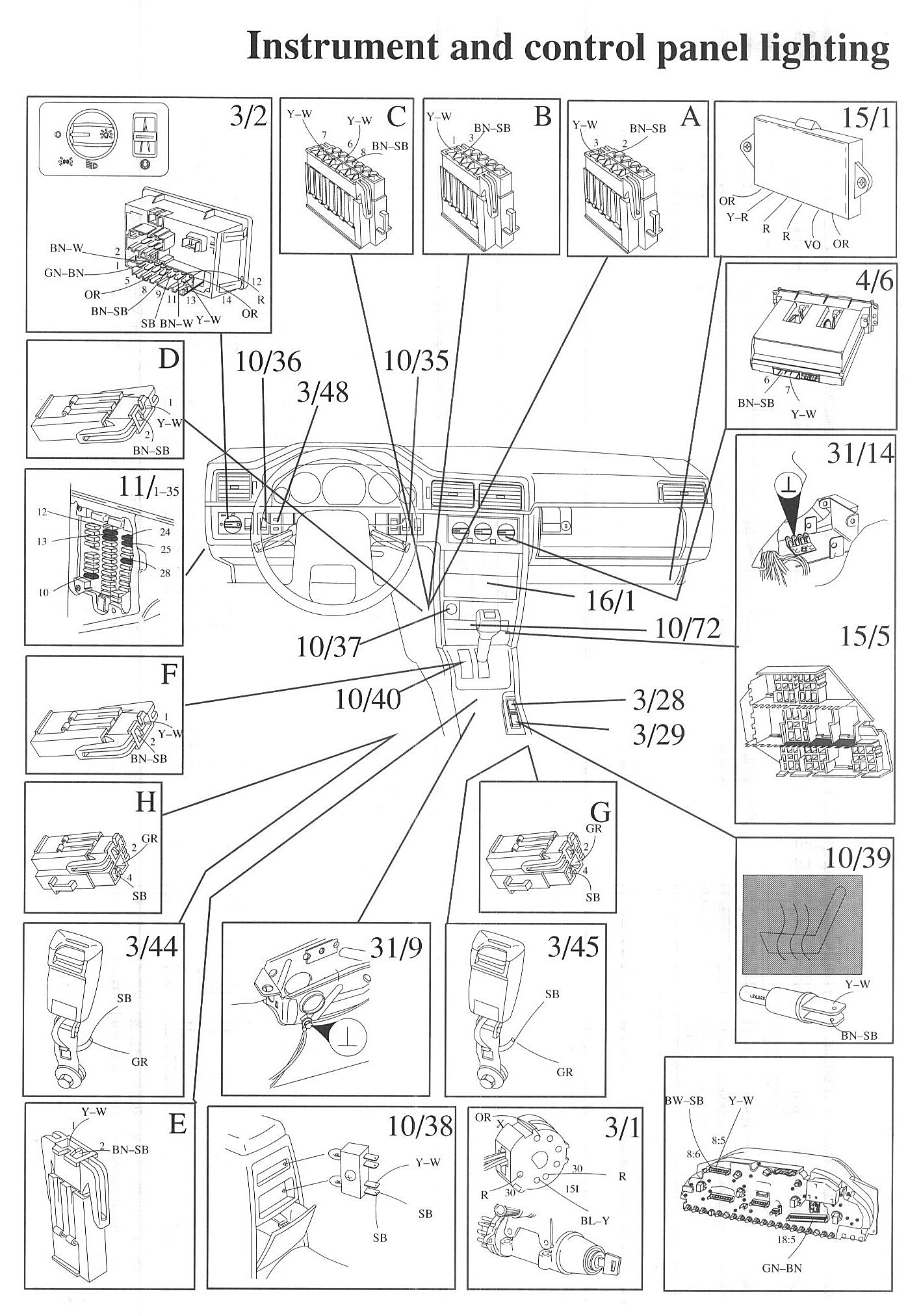

Component / Connector Views:

LEGEND
1/1 Battery
3/1 Ignition switch
3/2 Headlight switch
3/28 Seat heater switch, driver
3/29 Seat heater switch, passenger
3/44 Seat belt lock, driver
3/45 Seat belt lock, passenger
3/48 Clock setting
4/6 Heater controls, ECC
5/8 8-pole connector, instrument panel
5/18 18-pole connector, instrument panel

10/35 Sunroof switch light
10/36 Instrument and panel lighting
10/37 Cigarette lighter light
10/38 Ashtray light, rear
10/39 Seat heater switch light
10/40 Gear selector light
10/72 Ashtray light, front
11/1-35 Fuses
15/1 Positive terminal
15/5 31-terminal, relay unit
16/1 Radio
31/9 Ground point, parking brake lever
31/14 Ground point, relay unit
