Interior, Engine Compartment, Trunk and Door Open Lights

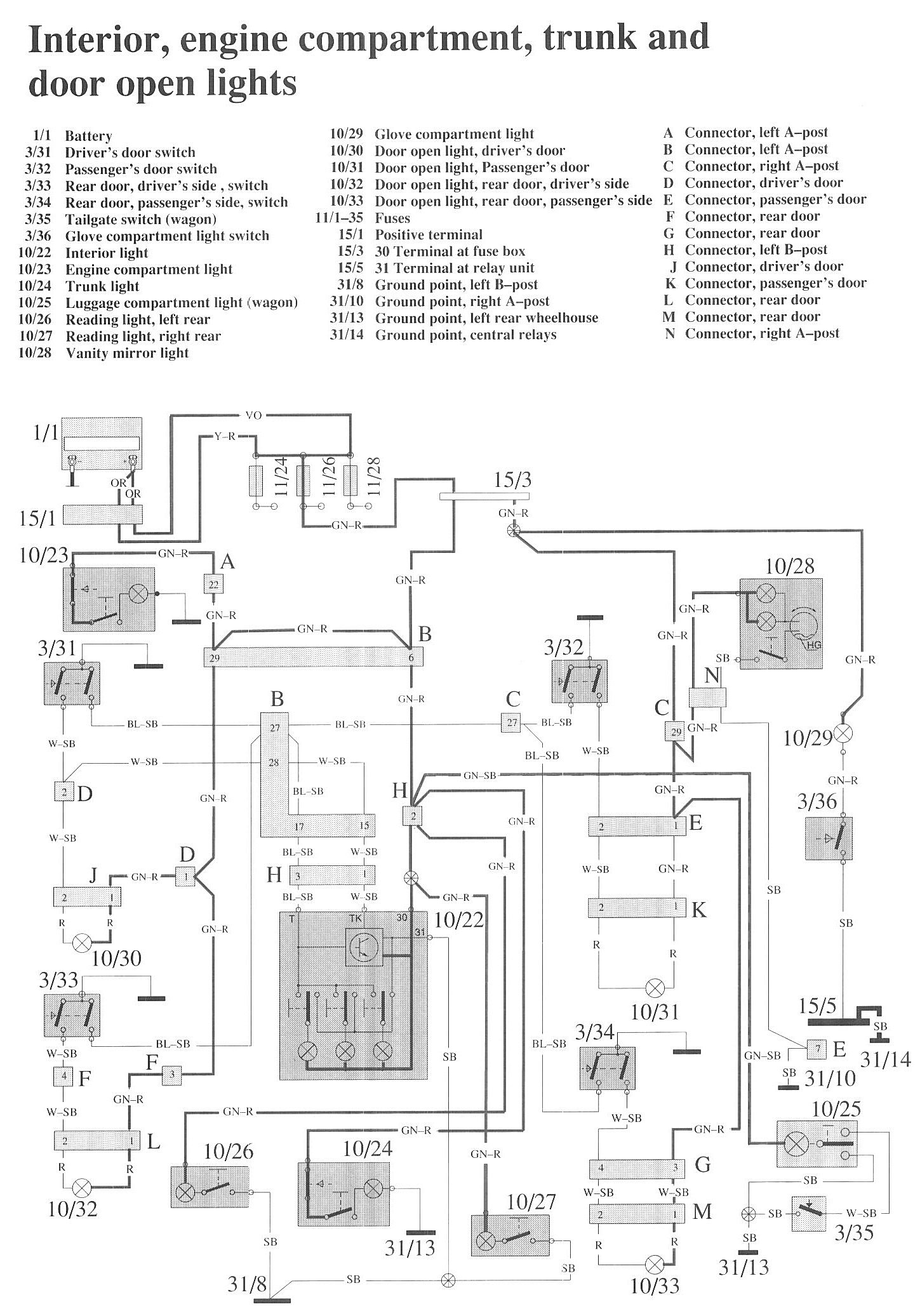

Wiring Diagrams:

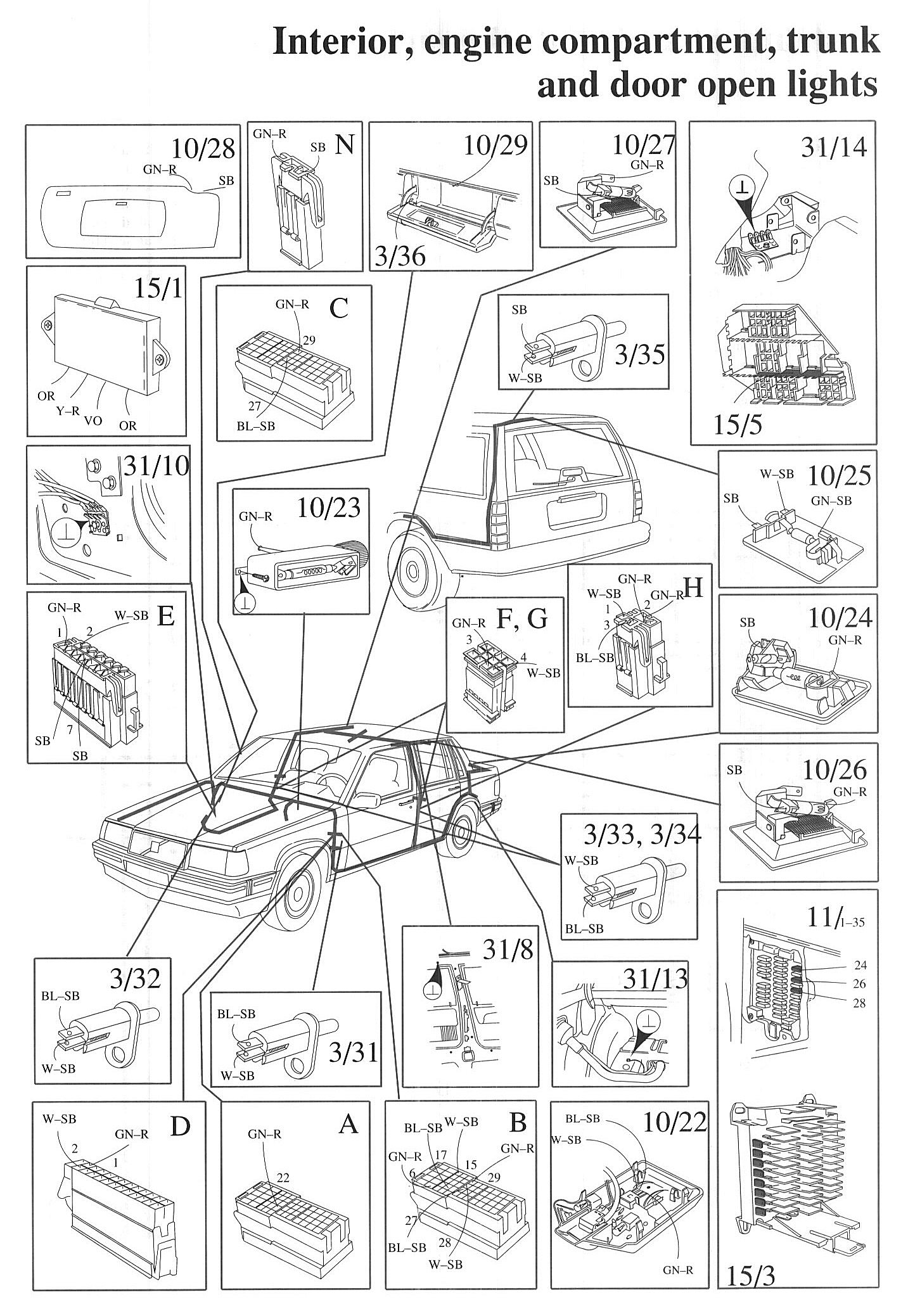

Component / Connector Views:

LEGEND
1/1 Battery
3/31 Driver's door switch
3/32 Passenger's door switch
3/33 Rear door, driver's side ,switch
3/34 Rear door, passenger's side, switch
3/35 Tailgate switch (wagon)
3/36 Glove compartment light switch

10/22 Interior light
10/23 Engine compartment light
10/24 Trunk light
10/25 Luggage compartment light (wagon)
10/26 Reading light, left rear
10/27 Reading light, right rear
10/28 Vanity mirror light
10/29 Glove compartment light
10/30 Door open light, driver's door
10/31 Door open light, Passenger's door
10/32 Door open light, rear door, driver's side
10/33 Door open light, rear door, passenger's side
11/1-35 Fuses
15/1 Positive terminal
15/3 30 Terminal at fuse box
15/5 31 Terminal at relay unit
31/8 Ground point, left B-post
31/10 Ground point, right A-post
31/13 Ground point, left rear wheelhouse
31/14 Ground point, central relays
