Fuel Injection System

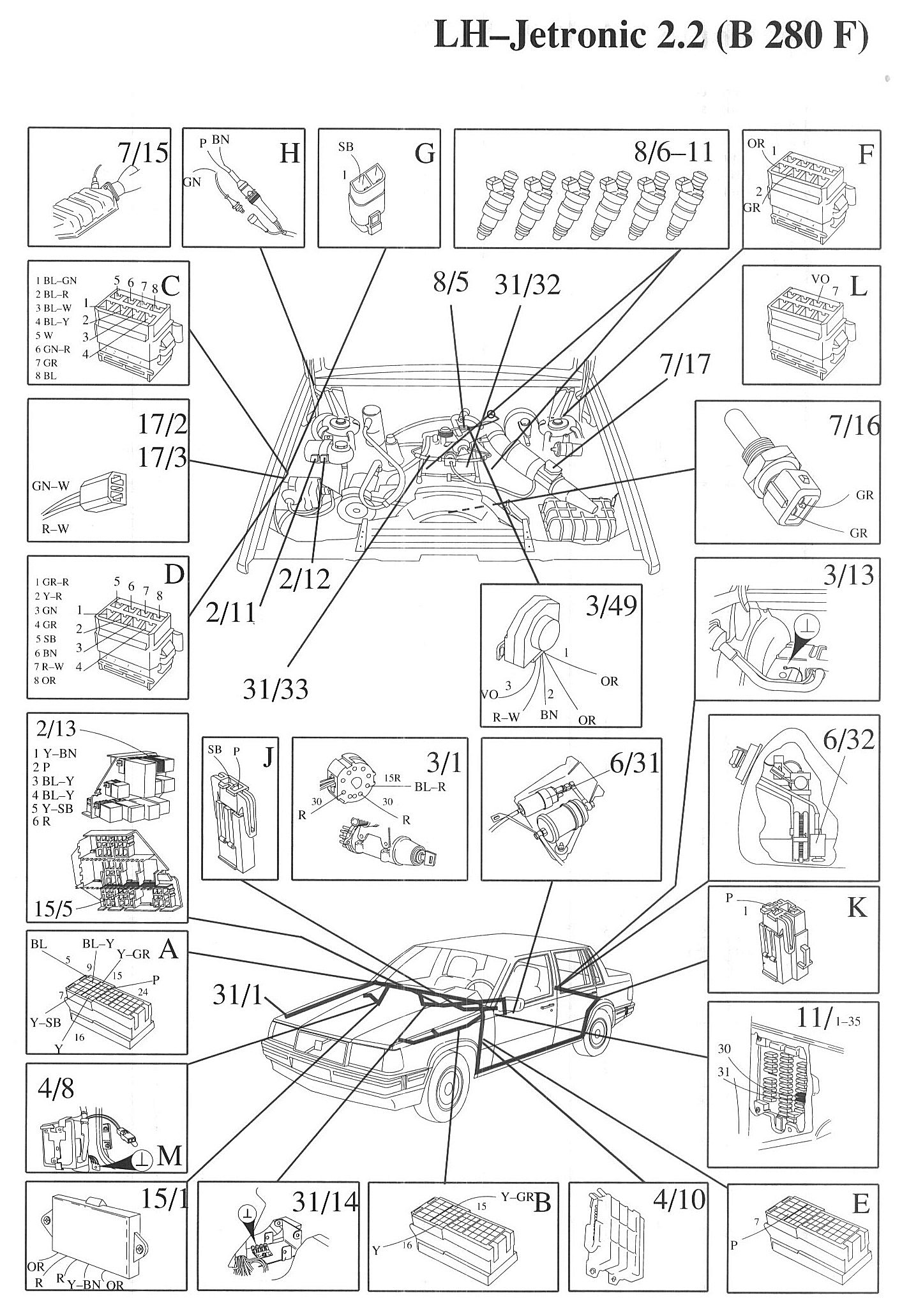

Component / Connector Views:

Wiring Diagrams:

LEGEND
1/1 Battery
2/11 Relay, electric cooling fan
2/12 Relay, radio interference suppression
2/13 Relay, fuel injection
3/1 Ignition switch
3/49 Throttle switch
4/8 Control unit,LH-Jetronic
4/10 Control unit, ignition system
6/31 Fuel pump, main
6/32 Fuel pump, tank
7/15 Lambda-sond
7/16 Temperature sensor
7/17 Air mass meter
8/5 Air control valve
8/6-11 Fuel injection

11/1-35 Fuses
15/1 Positive terminal
15/5 31 Terminal, relay unit
17/2 Test point, Lambda-sond
17/3 Test point, CIS-system
21-1 Ignition coil
31/1 Ground point, right front fender
31/13 Ground point, trunk
31/14 Ground point, relay unit
31/32 Ground point, engine
31/33 Ground point, engine
