Heated Rear Window

Component / Connector Views:

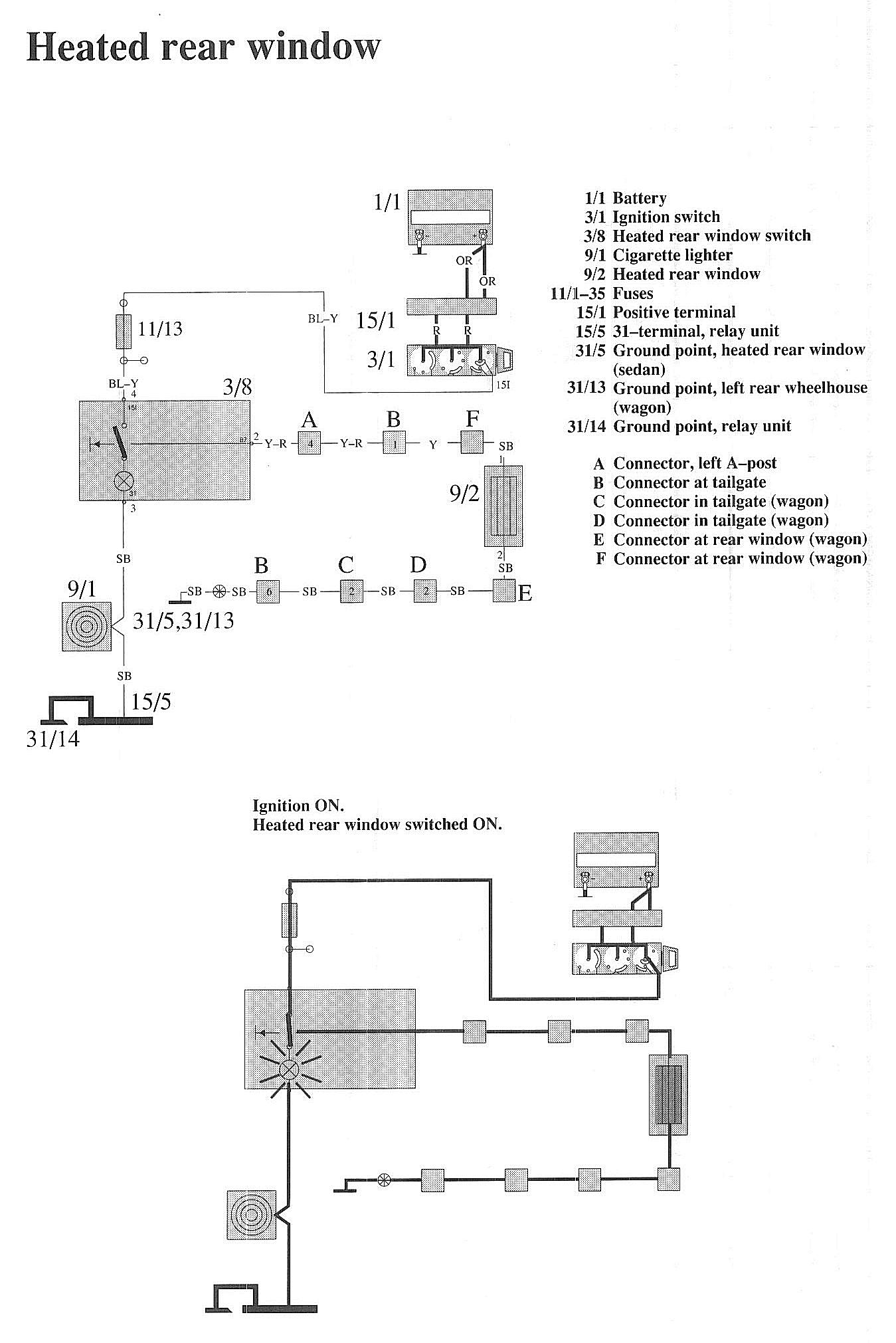

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition switch
3/8 Heated rear window switch
9/1 Cigarette lighter
9/2 Heated rear window

11/1-35 Fuses
15/1 Positive terminal
15/5 31-terminal, relay unit
31/5 Ground point, heated rear window (sedan)
31/13 Ground point, left rear wheelhouse (wagon)
31/14 Ground point, relay unit
