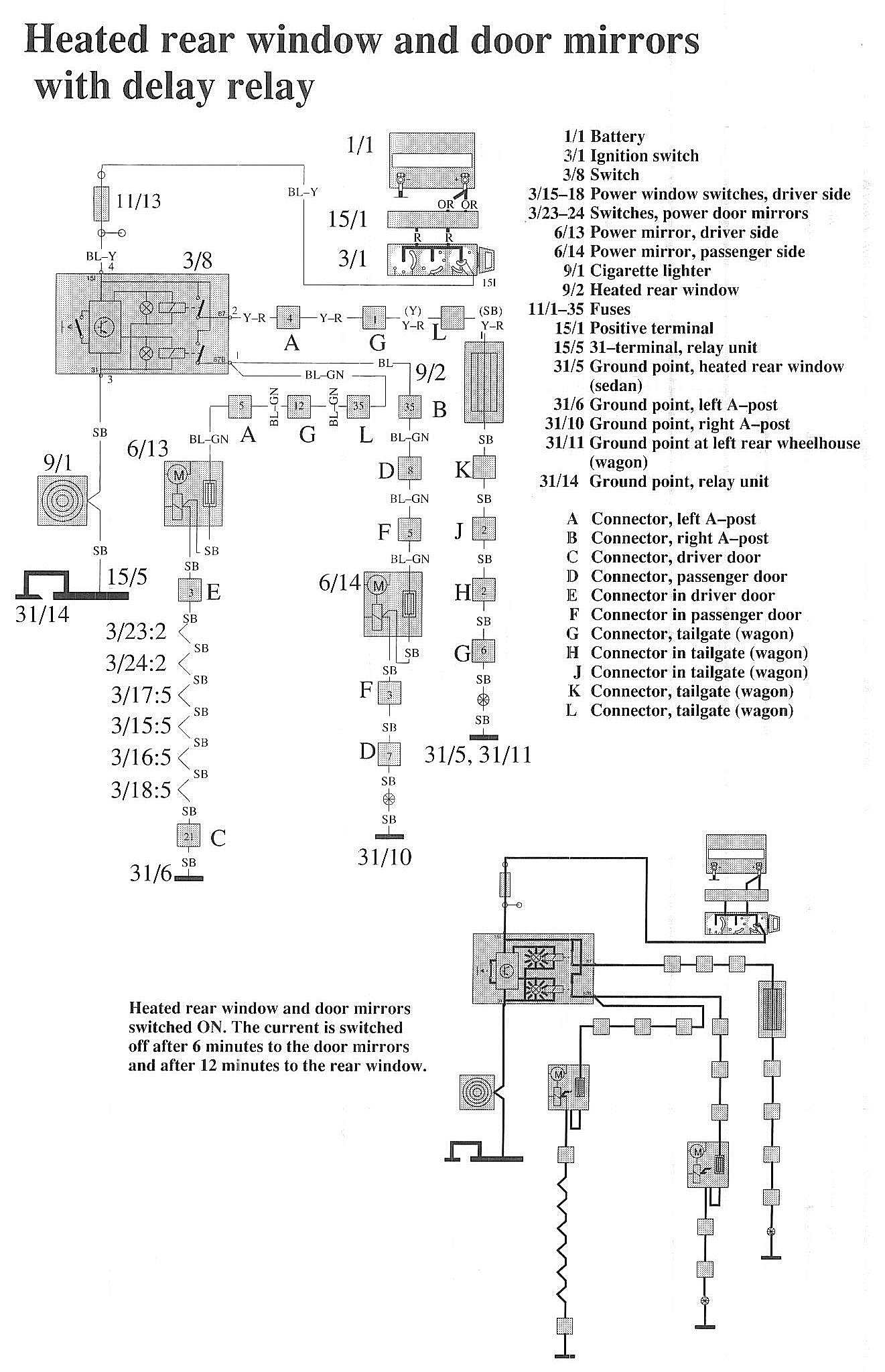

Heated Rear Window and Door Mirrors With Delay Relay

Component / Connector Views:

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition switch
3/8 Switch
3/15-18 Power window switches, driver side
3/23-24 Switches, power door mirrors
6/13 Power mirror, driver side
6/14 Power mirror, passenger side
9/1 Cigarette lighter
9/2 Heated rear window

11/1-35 Fuses
15/1 Positive terminal
15/5 31-terminal, relay unit
31/5 Ground point, heated rear window (sedan)
31/6 Ground point, left A-post
31/10 Ground point, right A-post
31/11 Ground point at left rear wheelhouse (wagon)
31/14 Ground point, relay unit
