Power Door Mirrors

Component / Connector Locations:

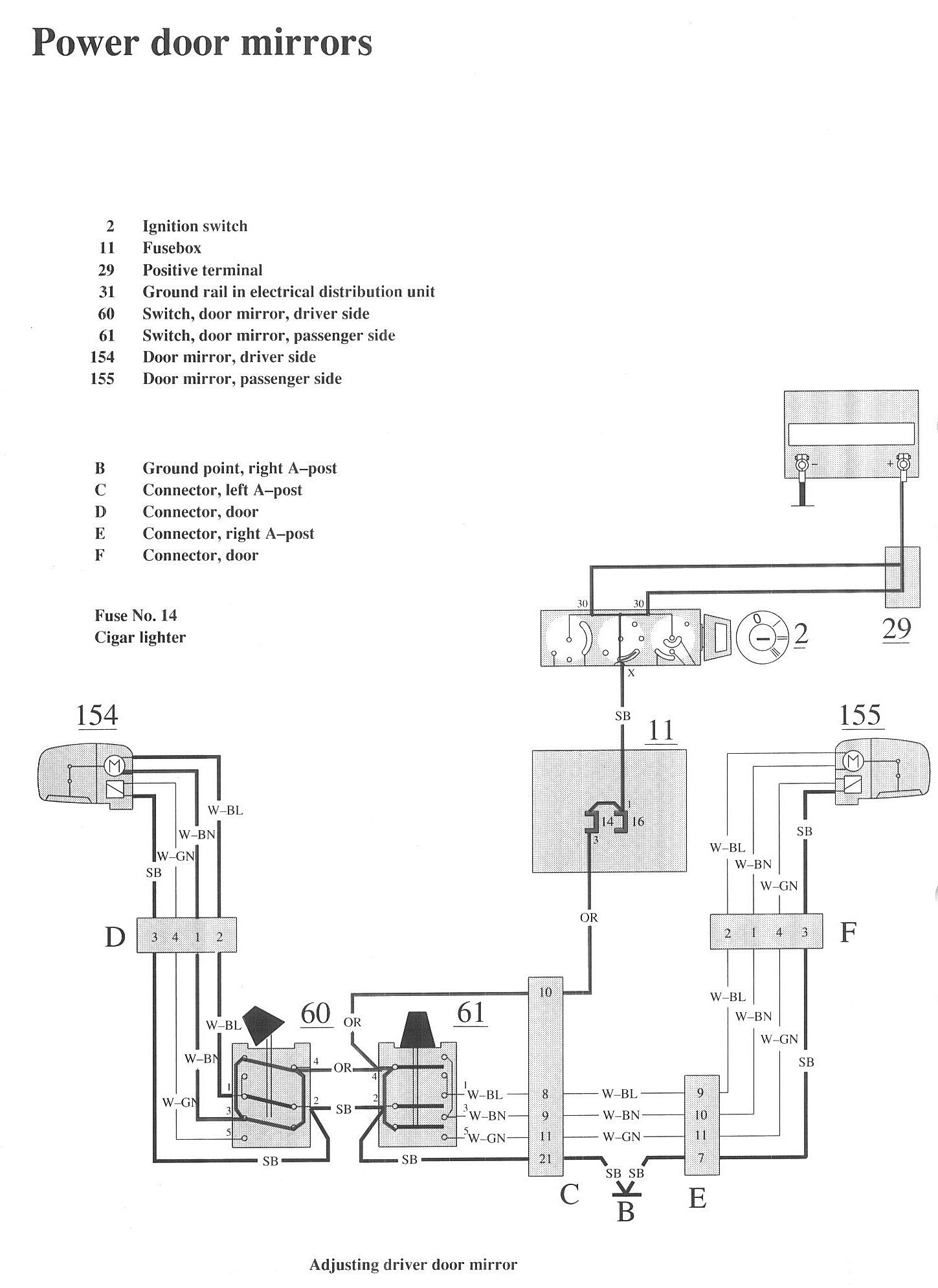

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
31 Ground rail in electrical distribution unit
60 Switch, door mirror, driver side
61 Switch, door mirror, passenger side

154 Door mirror, driver side
155 Door mirror, passenger side
