System Diagram

Wiring Diagrams:

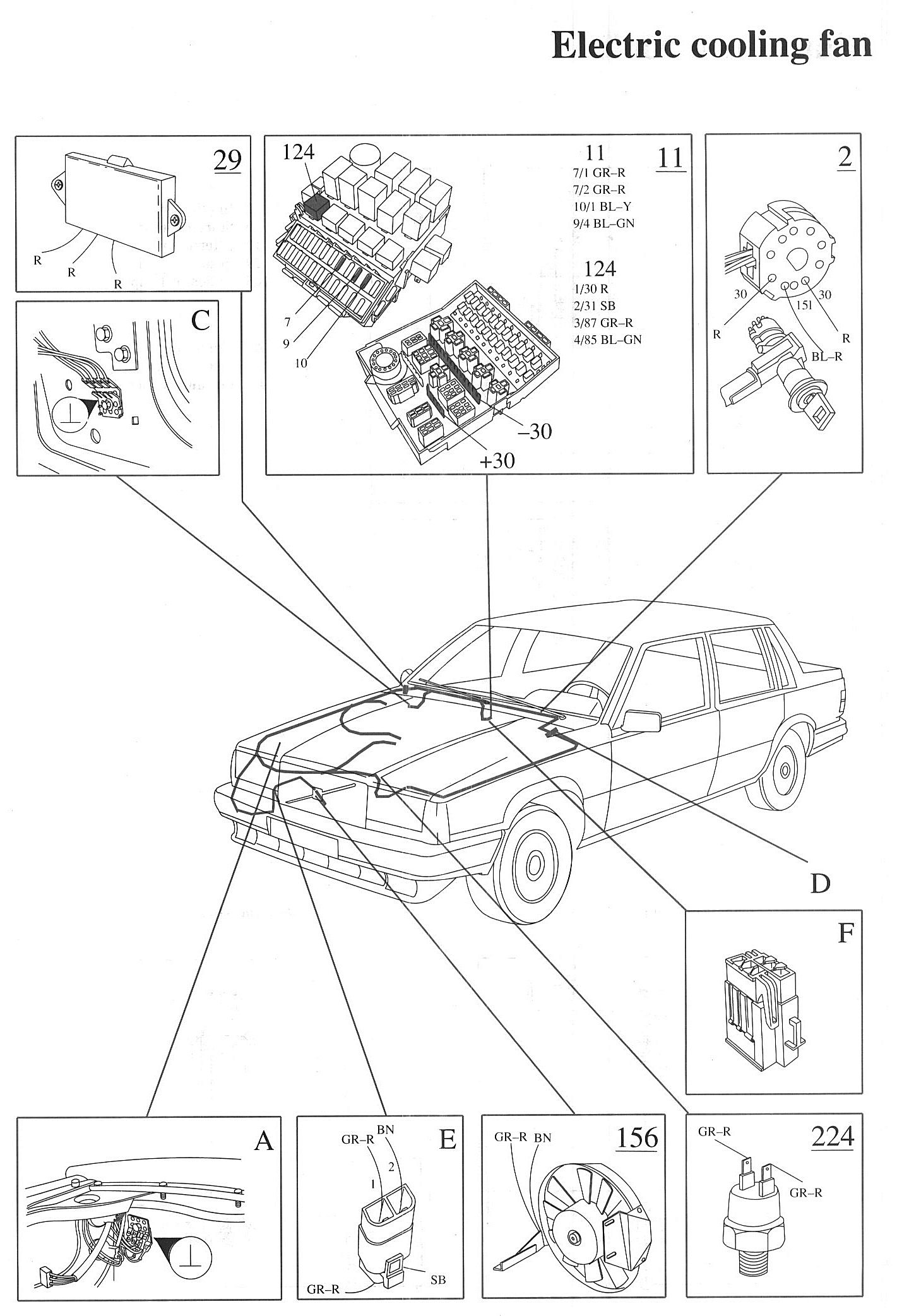

Component / Connector Locations:

LEGEND
2 Ignition switch

11 Fusebox
15 15-terminal in central distribution unit
29 Positive switch
30 30-terminal in central distribution unit
31 Ground panel in central distribution unit

124 Relay
156 Motor
224 Electric cooling fan thermal switch
