Tail Lamp

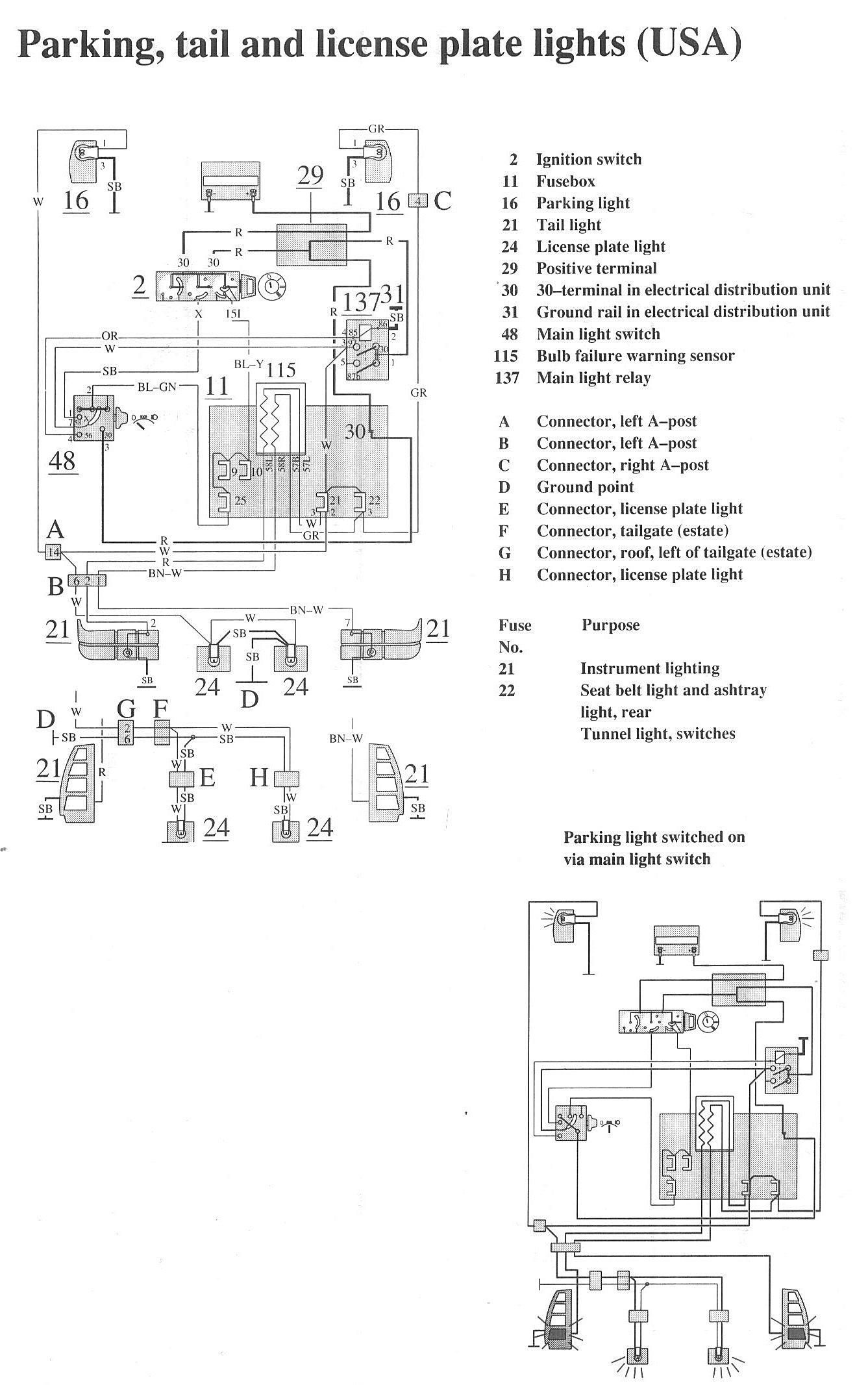

Wiring Diagrams:

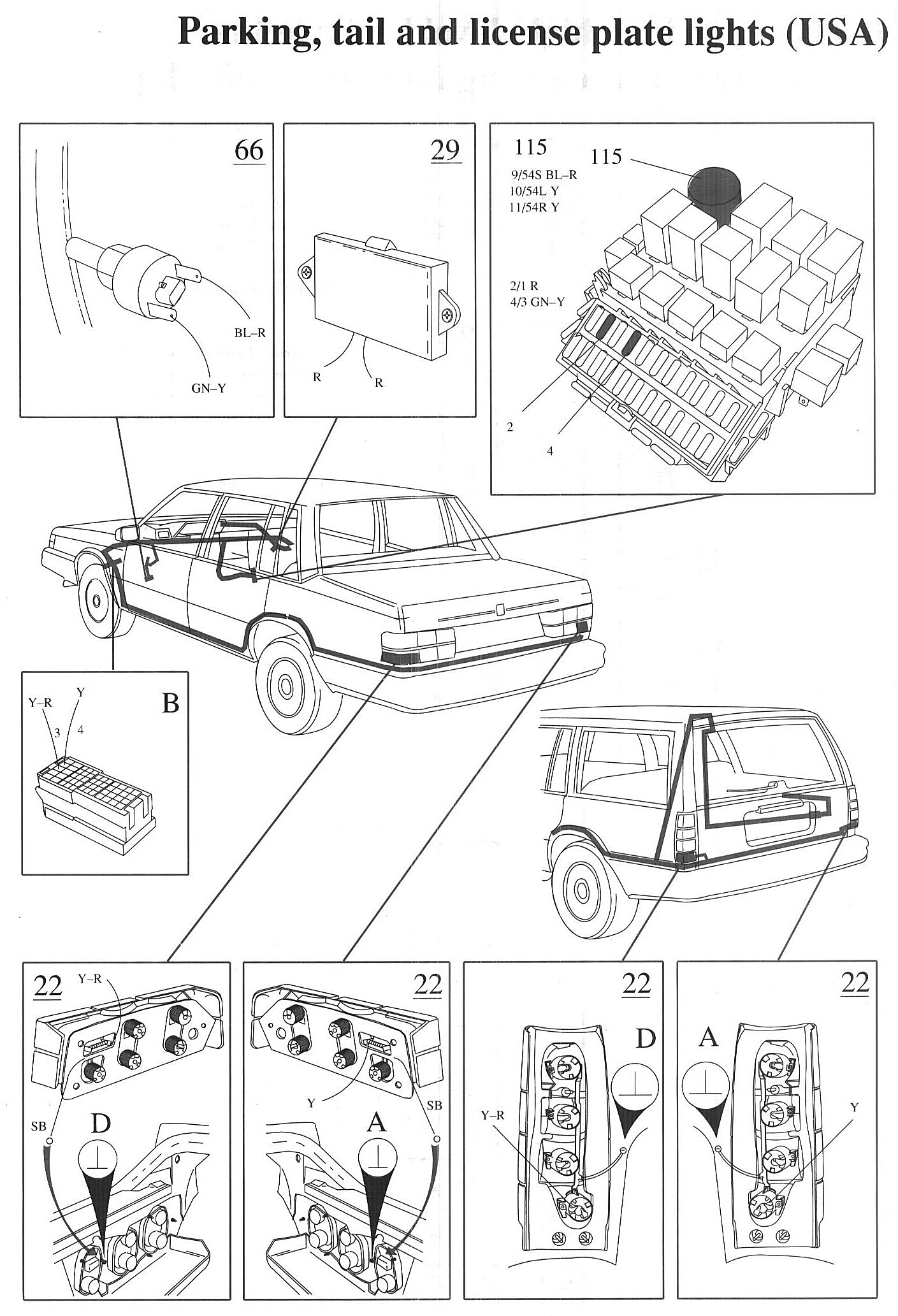

Component / Connector Locations:

LEGEND
2 Ignition switch

11 Fusebox
16 Parking light
21 Tail light
24 License plate light
29 Positive terminal
30 30-terminal in electrical distribution unit
31 Ground rail in electrical distribution unit
48 Main light switch

115 Bulb failure warning sensor
137 Main light relay
