System Diagram

Wiring Diagrams:

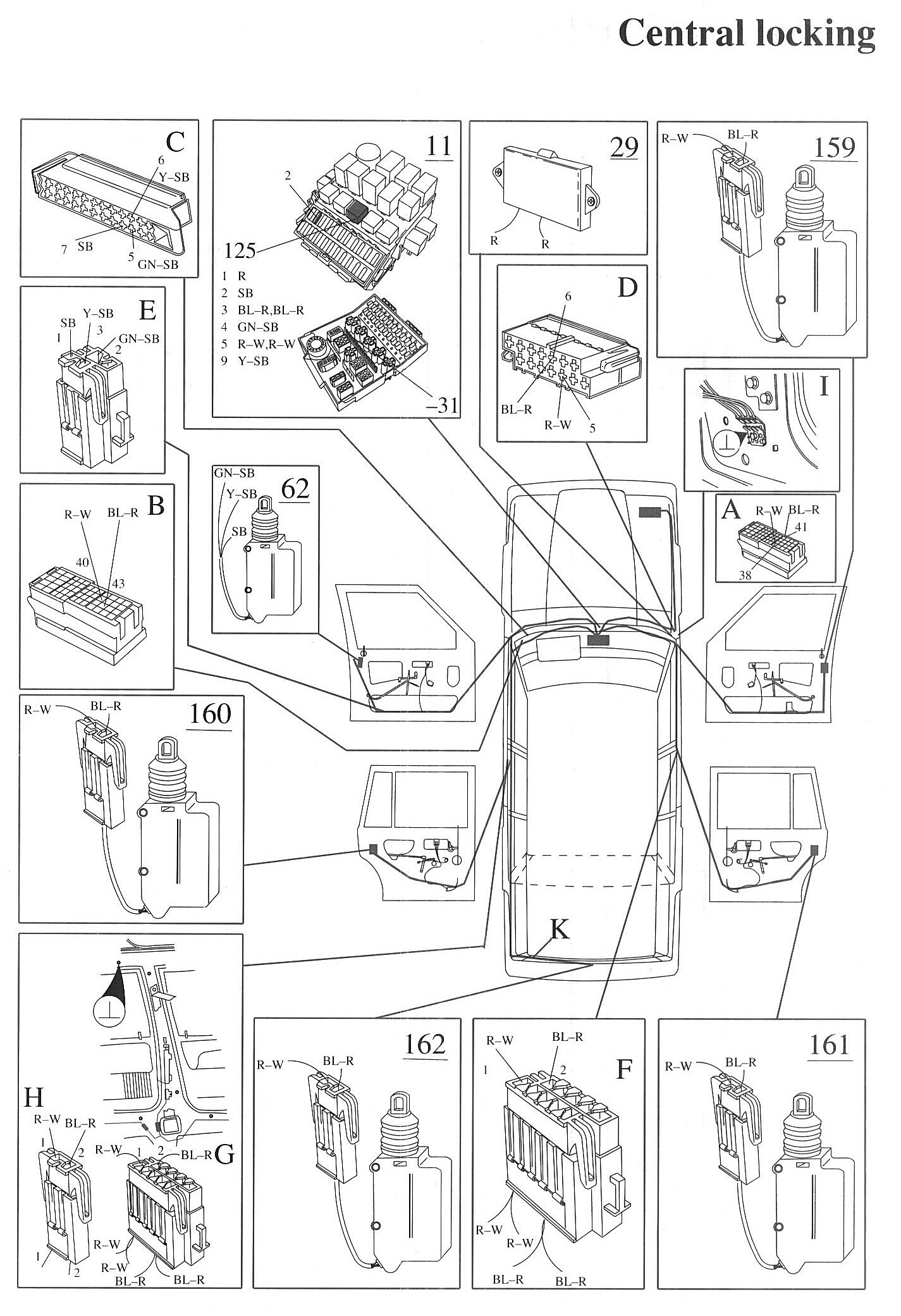

Component / Connector Locations:

LEGEND
11 Fusebox

29 Positive terminal
31 Ground rail in electrical distribution unit
62 Switch, door knob

125 Relay
159 Motor, FR
160 Motor, RL
161 Motor, RR
162 Motor, locking boot
