Radio Connections and Power Antenna

Wiring Diagrams:

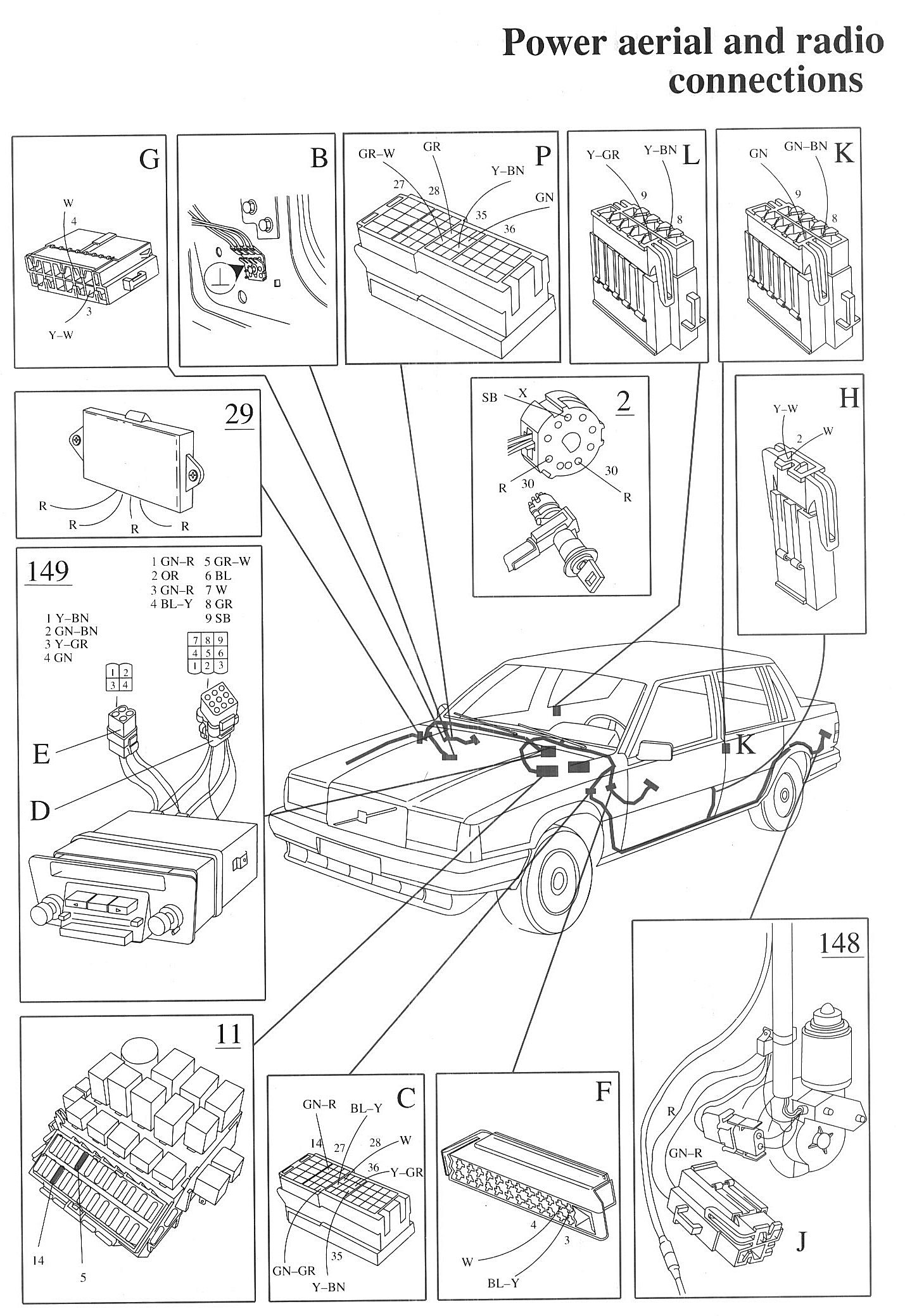

Component / Connector Locations:

LEGEND
2 Ignition switch
8 Combined instrument, 8-pole connection

11 Fusebox
29 Positive terminal

143 Loudspeaker FL
144 Loudspeaker FR
145 Loudspeaker RL
146 Loudspeaker RR
148 Motor, power aerial
149 Radio
