System Diagram

Wiring Diagrams:

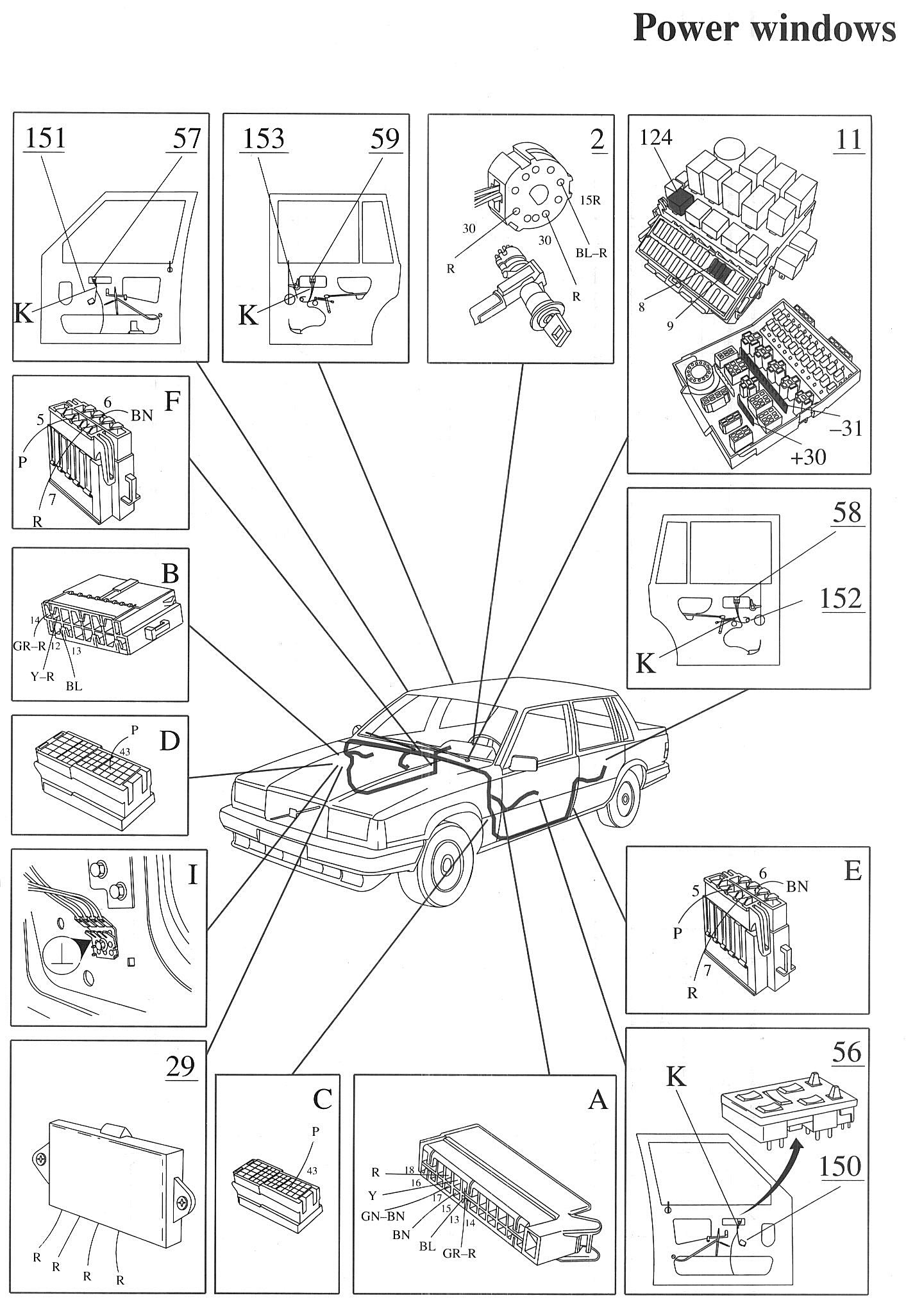

Component / Connector Locations:




LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
31 Ground rail in electrical distribution unit
56 Driver door switches:
FL = front left
FR = front right
Rear breaker for rear power windows
RL = rear left
RR = rear right
57 Passenger door switch, front
58 Switch, RL
59 Switch, RR

124 Relay, power windows
150 Motor, FL
151 Motor, FR
152 Motor, RL
153 Motor, RR
224 Electric cooling fan thermostat
