Fuel Injection System

Component / Connector Locations:

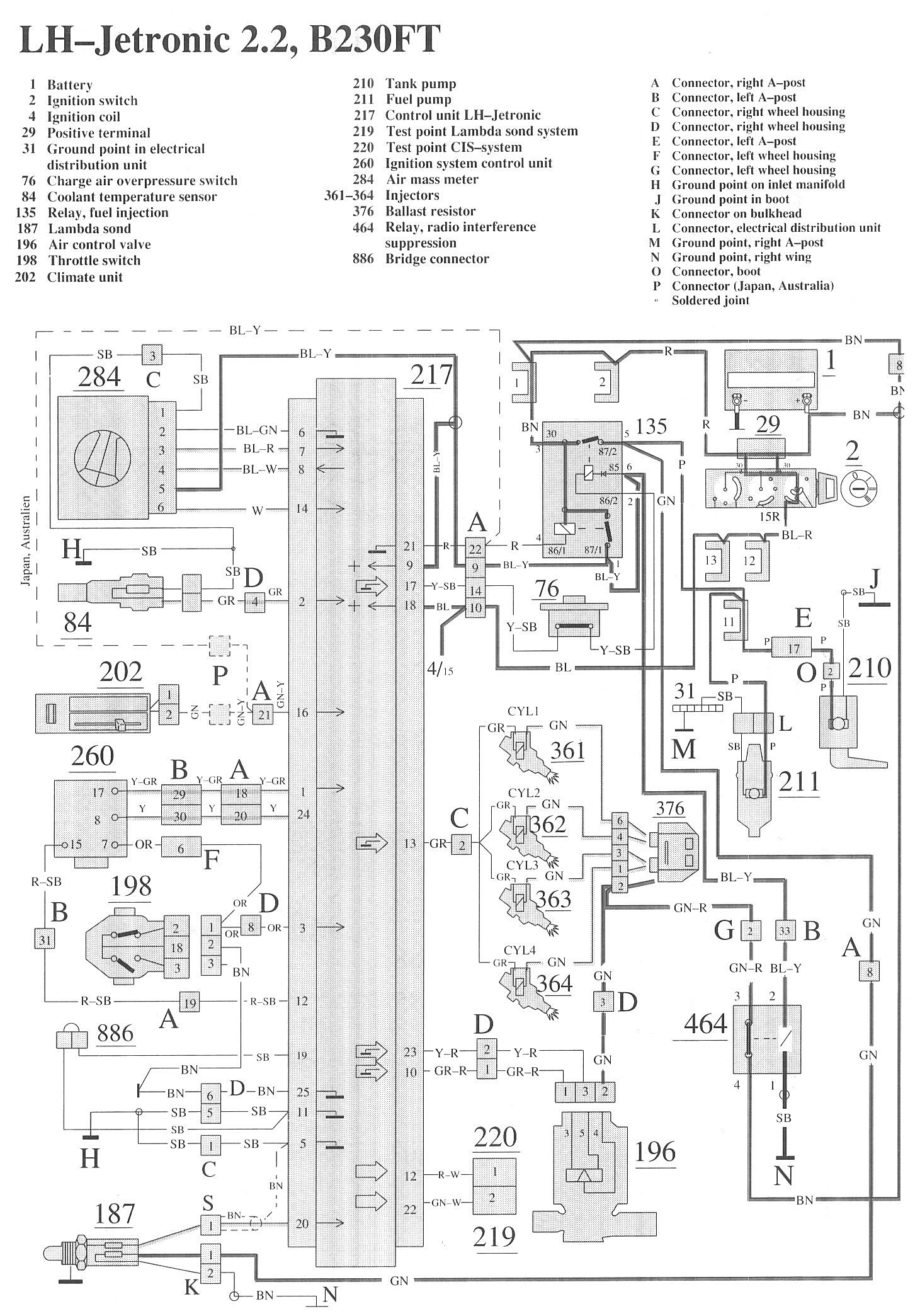

Wiring Diagrams:




LEGEND
1 Battery
2 Ignition switch
4 Ignition coil

29 Positive terminal
31 Ground point in electrical distribution unit
76 Charge air overpressure switch
84 Coolant temperature sensor

135 Relay, fuel injection
187 Lambda sond
196 Air control valve
198 Throttle switch
202 Climate unit
210 Tank pump
211 Fuel pump
217 Control unit LH-Jetronic
219 Test point Lambda sond system
220 Test point CIS-system
260 Ignition system control unit
284 Air mass meter
361-364 Injectors
376 Ballast resistor
464 Relay, radio interference suppression
886 Bridge connector
