Ignition System

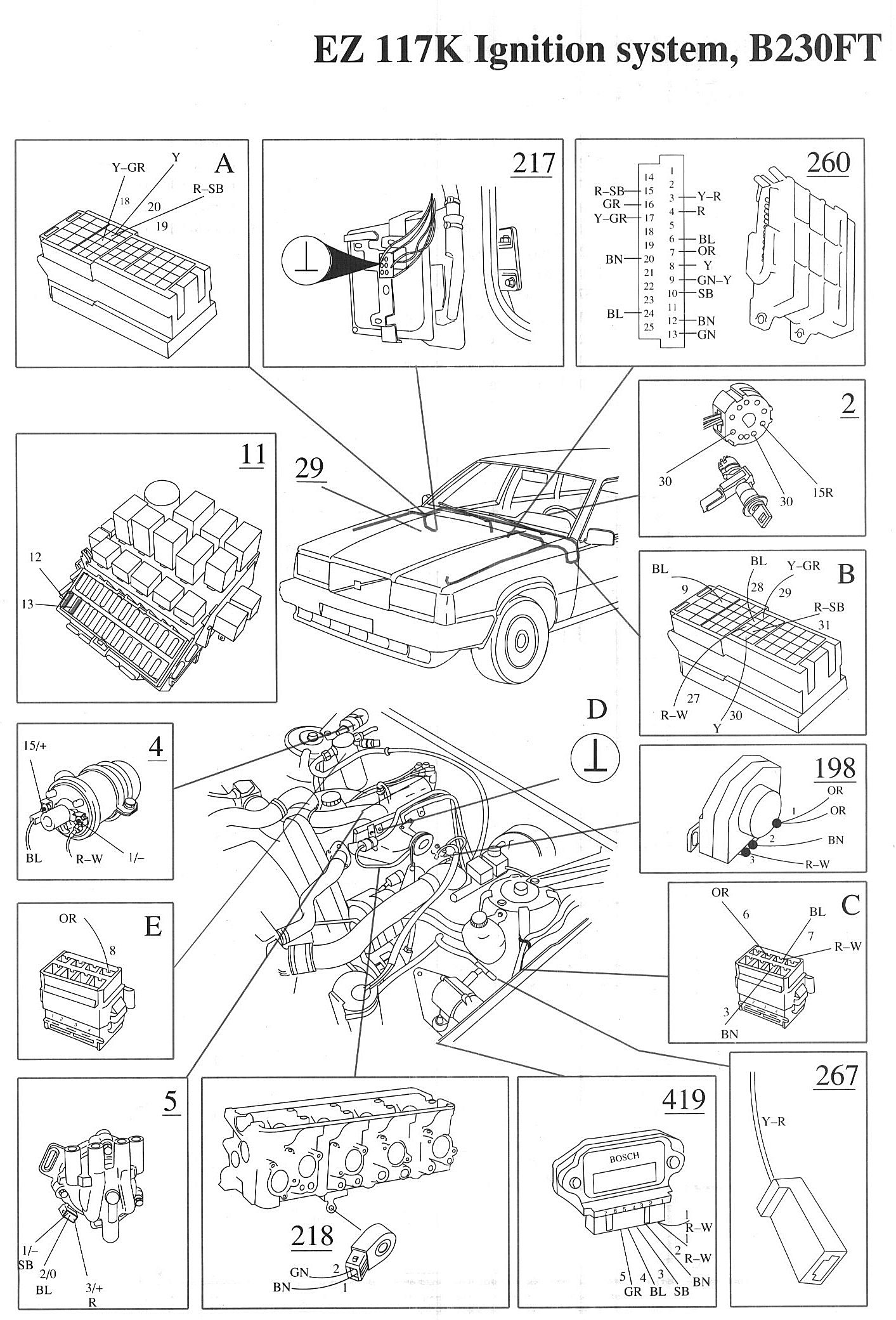

Component / Connector Locations:

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
4 Ignition coil
5 Distributor
6 Spark plug

11 Fusebox
29 Positive terminal
81 AC pressure sensor
86 Tachometer

198 Throttle switch
200 AC compressor solenoid
202 Climate control panel
217 Fuel system control unit
218 Knock sensor
260 Control unit
267 Test socket
293 Relay, idle speed compensation
419 Power stage
