Electrical Diagrams

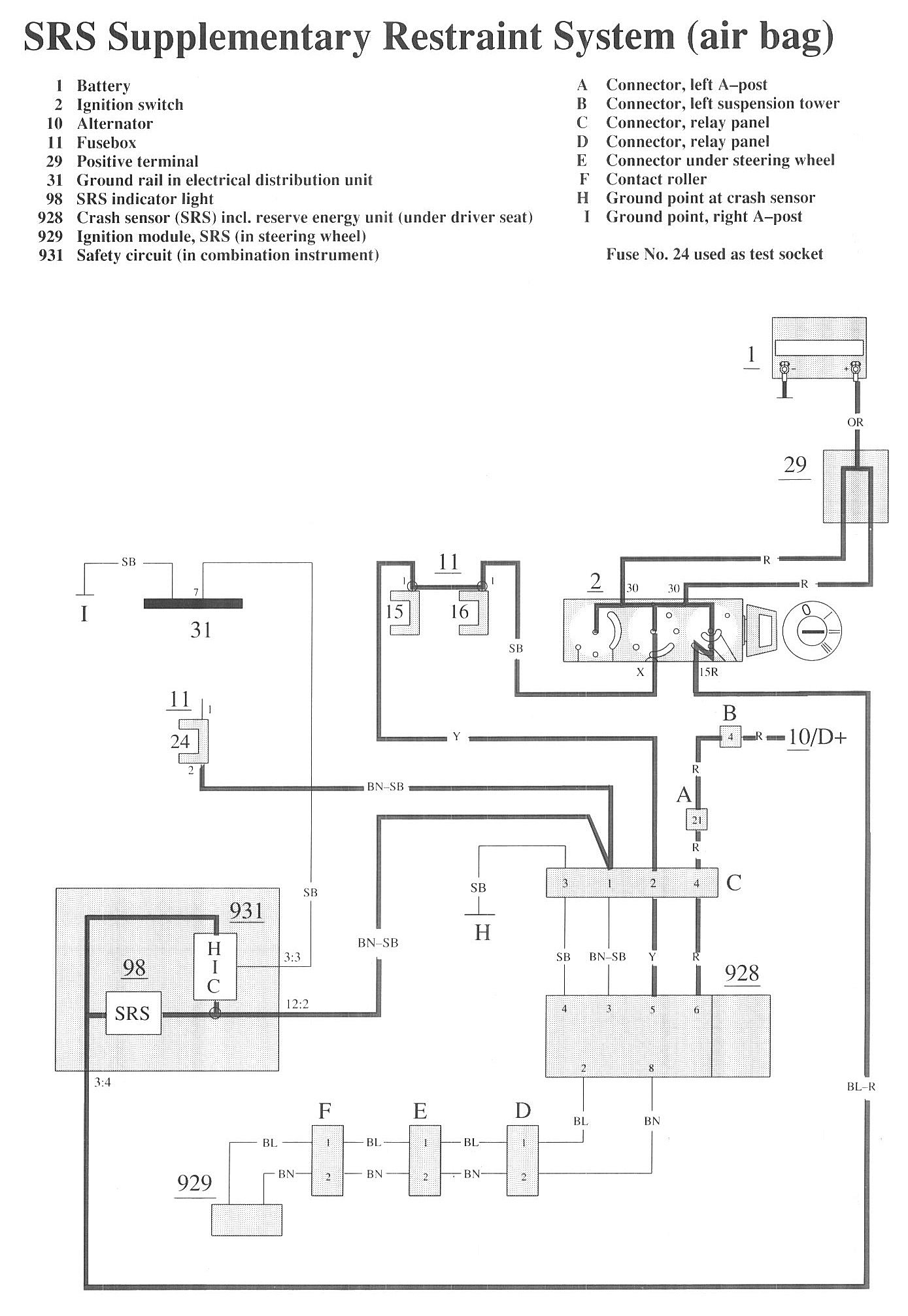

Wiring Diagrams:




Component / Connector Locations:




LEGEND
1 Battery
2 Ignition switch

10 Alternator
11 Fusebox
29 Positive terminal
31 Ground rail in electrical distribution unit
98 SRS indicator light

928 Crash sensor (SRS) incl. reserve energy unit (under driver seat)
929 Ignition module, SRS (in steering wheel)
931 Safety circuit (in combination instrument)
