Tailgate Window Wash/Wipe (Interval Relay)

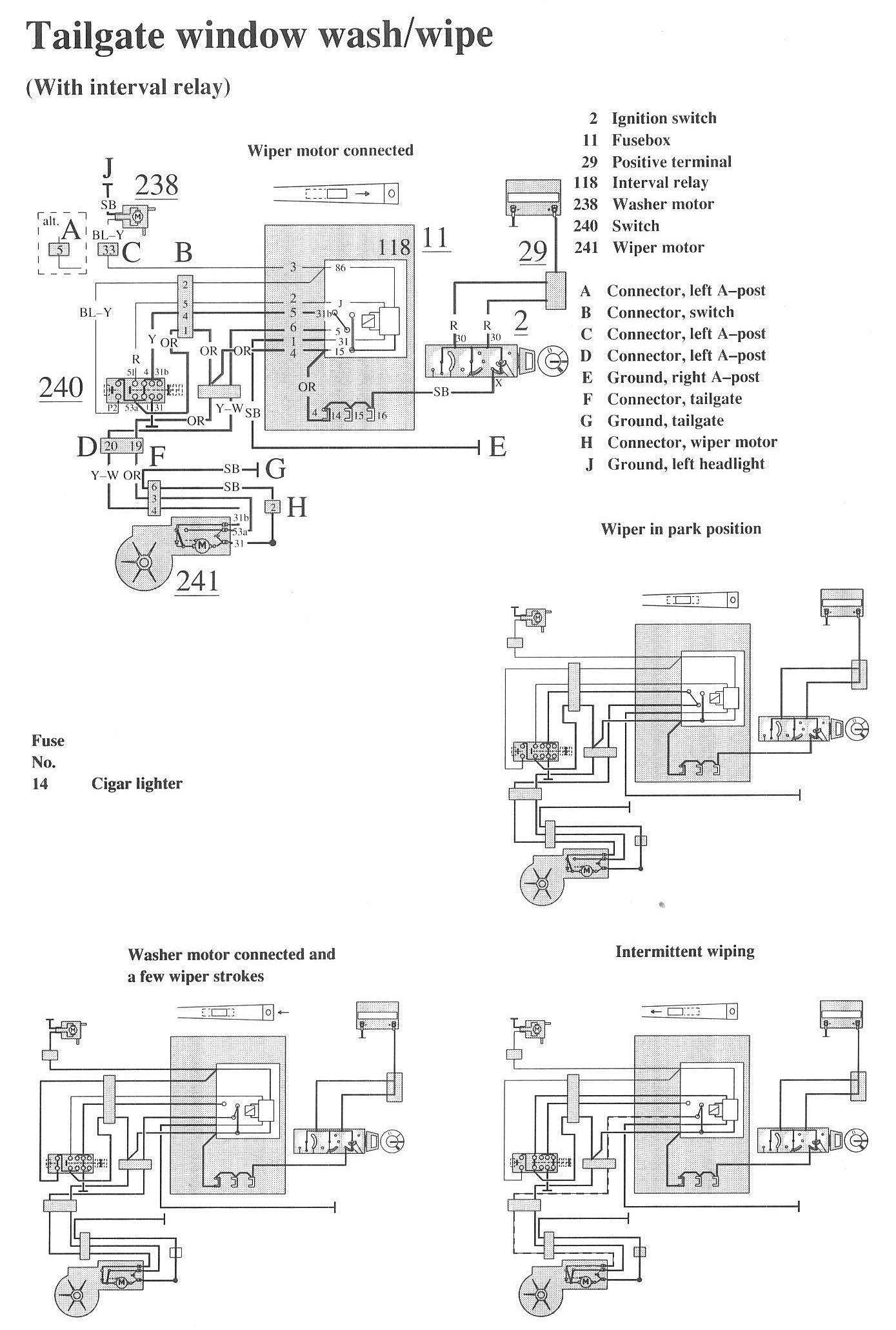

Wiring Diagrams:

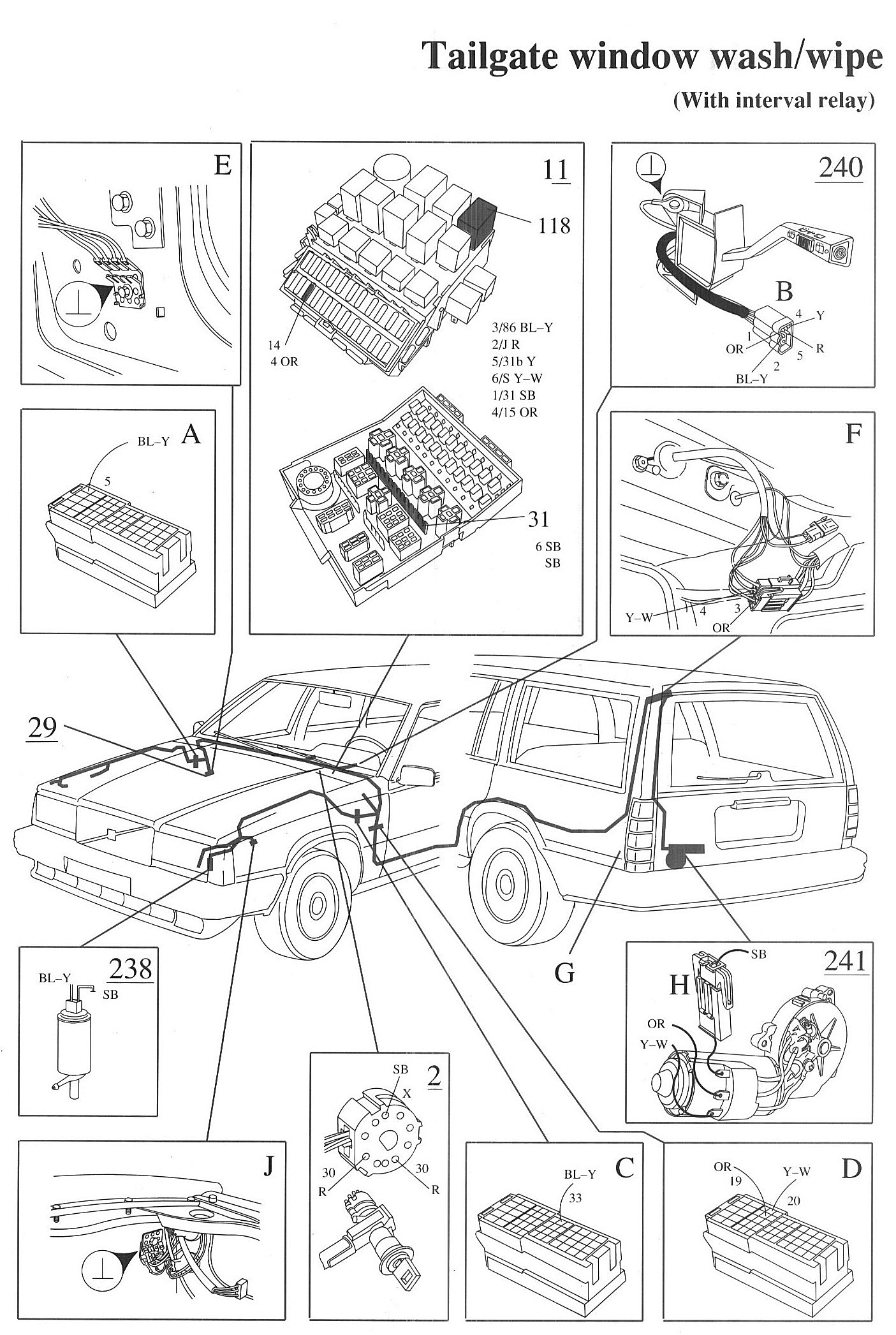

Component / Connector Locations:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal

118 Interval relay
238 Washer motor
240 Switch
241 Wiper motor
