Sunroof / Moonroof: Locations

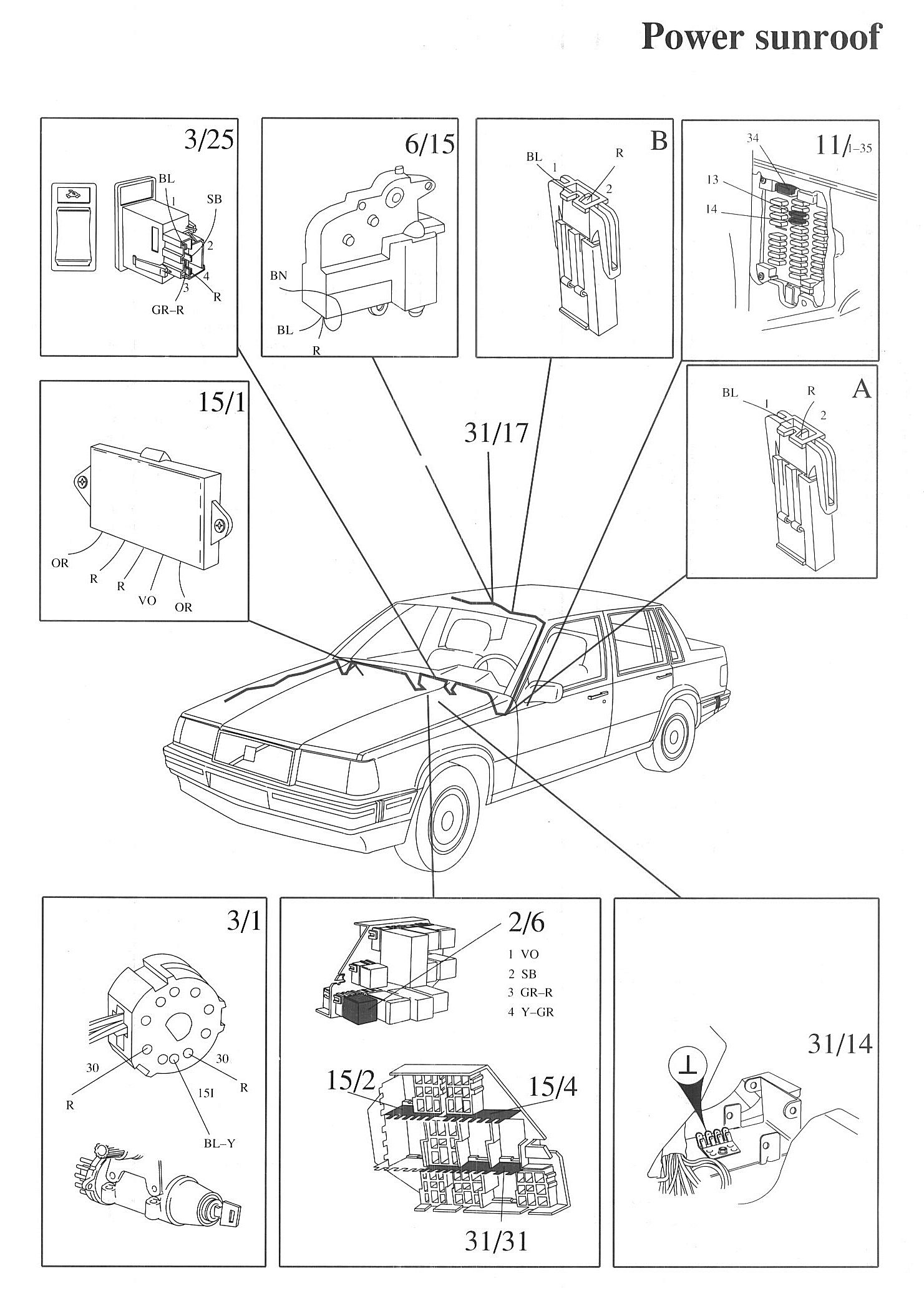

Component / Connector Locations:

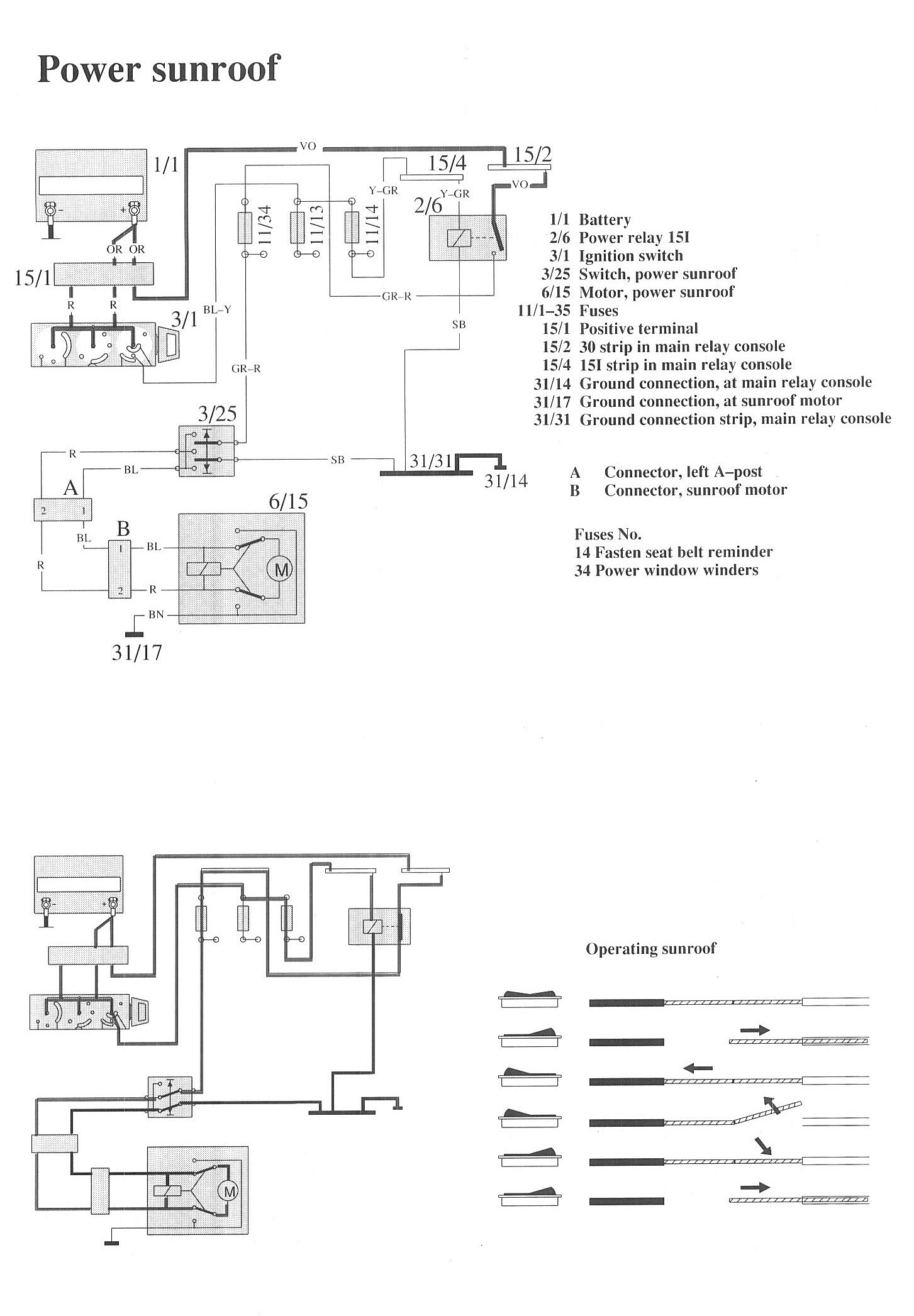

Wiring Diagrams:

LEGEND
1/1 Battery
2/6 Power relay 15I
3/1 Ignition switch
3/25 Switch, power sunroof
6/15 Motor, power sunroof

11/1-35 Fuses
15/1 Positive terminal
15/2 30 strip in main relay console
15/4 15I strip in main relay console
31/14 Ground connection, at main relay console
31/17 Ground connection, at sunroof motor
31/31 Ground connection strip, main relay console
