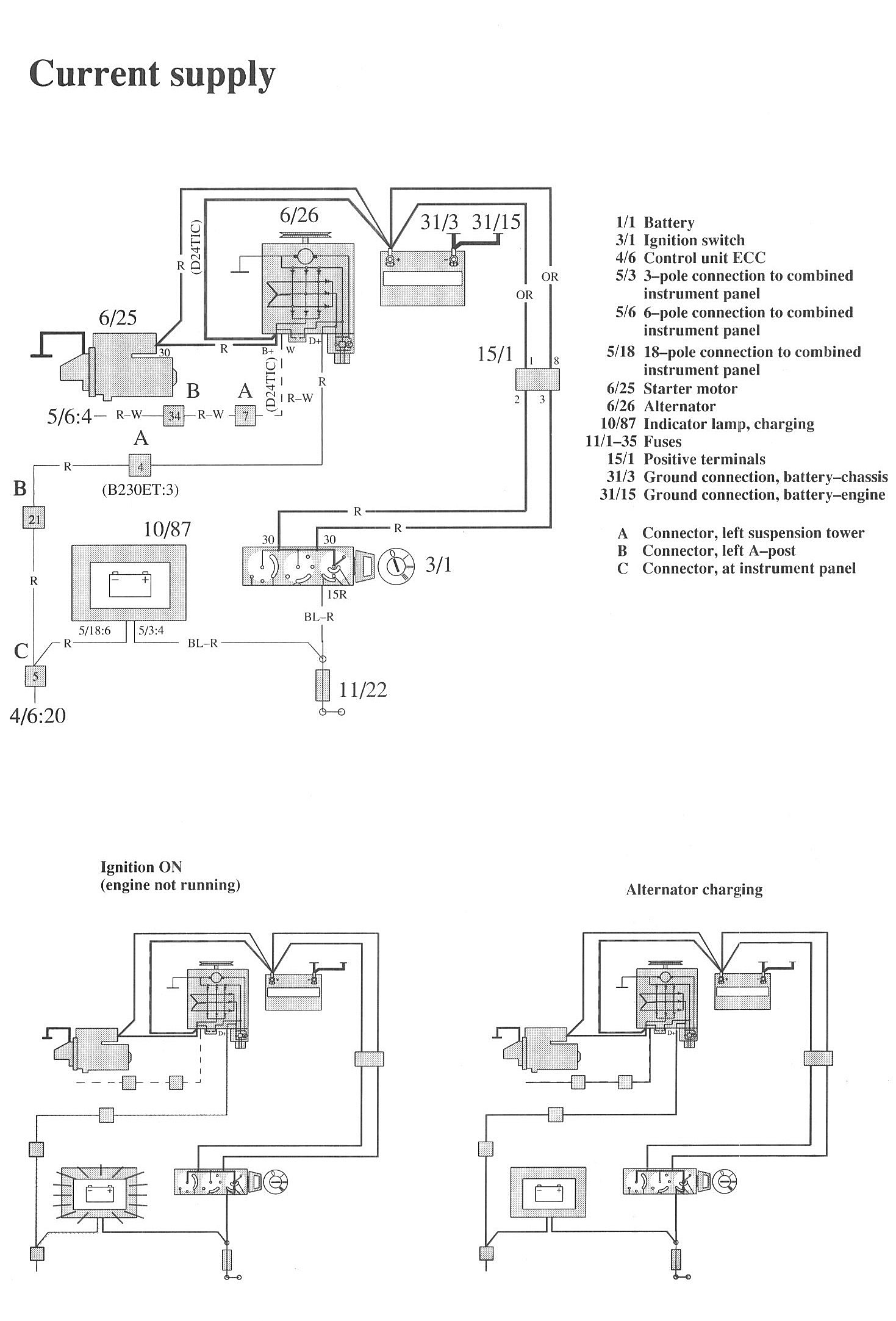

System Diagram

Wiring Diagrams:

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition switch
4/6 Control unit ECC
5/3 3-pole connection to combined instrument panel
5/6 6-pole connection to combined instrument panel
5/18 18-pole connection to combined instrument panel
6/25 Starter motor
6/26 Alternator

10/87 Indicator lamp, charging
11/1-35 Fuses
15/1 Positive terminals
31/3 Ground connection, battery-chassis
31/15 Ground connection, battery-engine
