Backup Lamp

Wiring Diagrams:

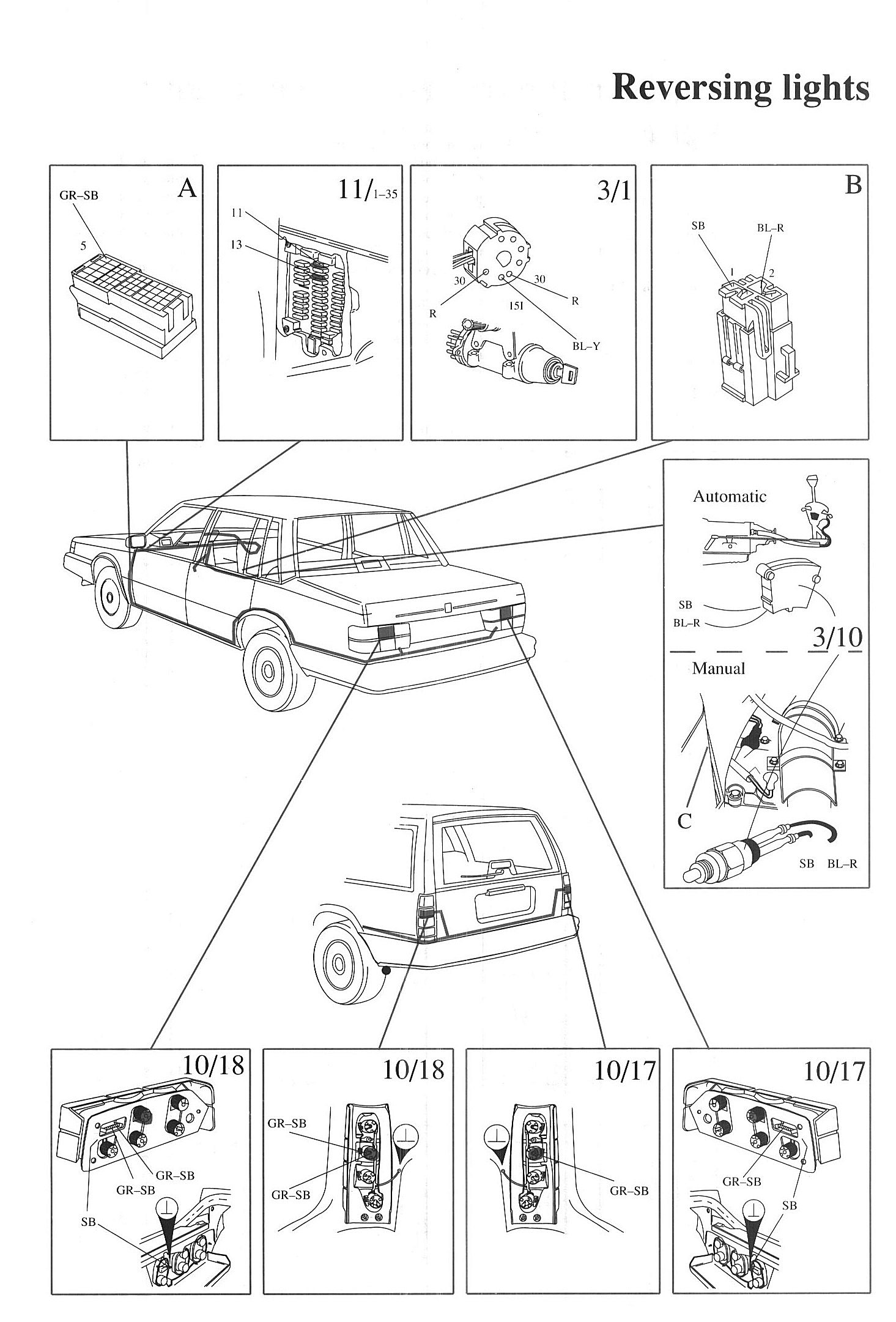

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition switch
3/10 Reversing light switch

10/17 Right tail light
10/18 Left tail light
10/48 Right reversing light
10/55 Left reversing light
11/1-35 Fuses
15/1 Positive terminal
31/11 Ground connection, left tail light
31/12 Ground connection, right tail light
