Heated Rear Window

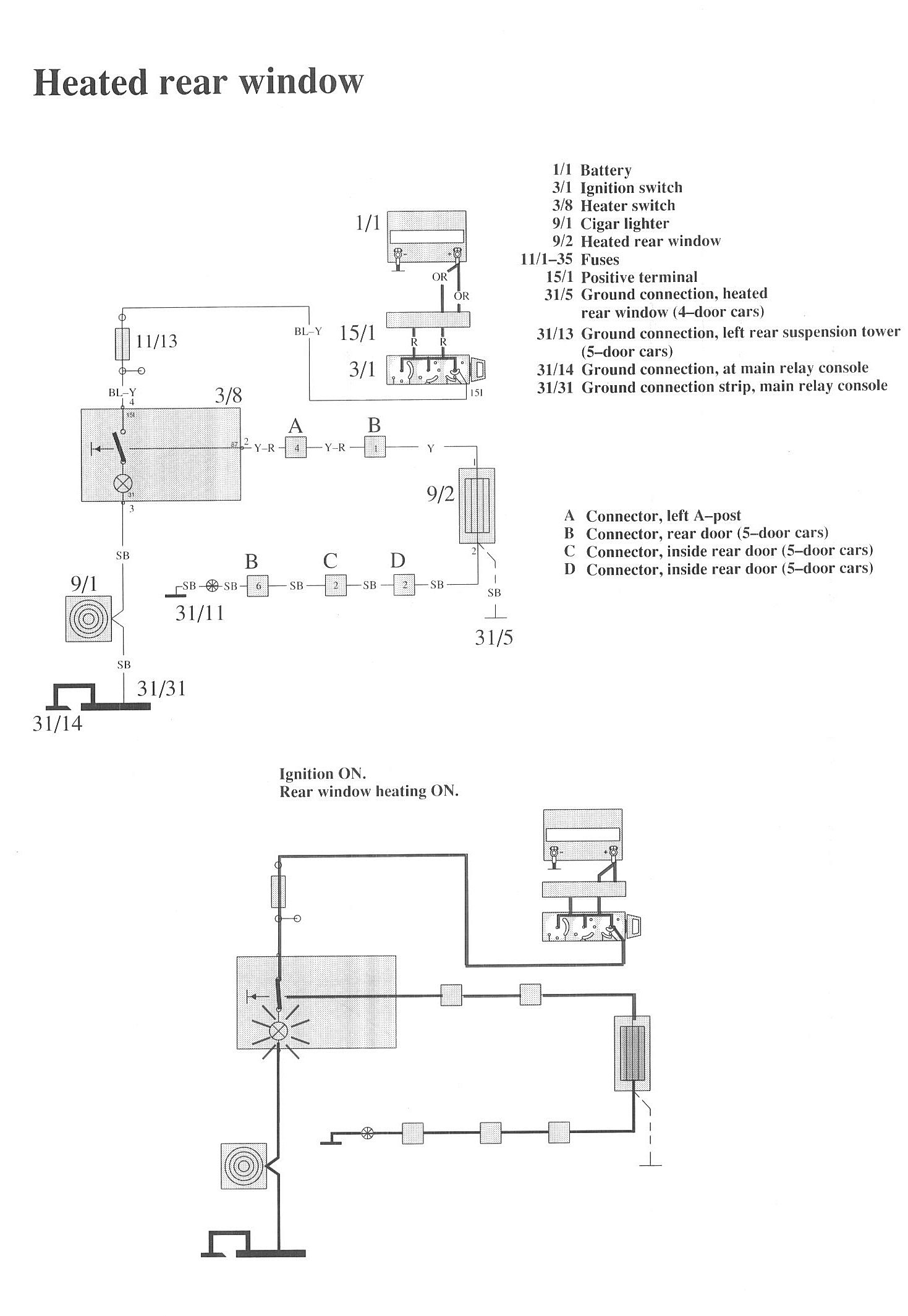

Wiring Diagrams:

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition switch
3/8 Heater switch
9/1 Cigar lighter
9/2 Heated rear window

11/1-35 Fuses
15/1 Positive terminal
31/5 Ground connection, heated rear window (4-door cars)
31/13 Ground connection, left rear suspension tower (5-door cars)
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console
