Headlamp Wiper/Washer

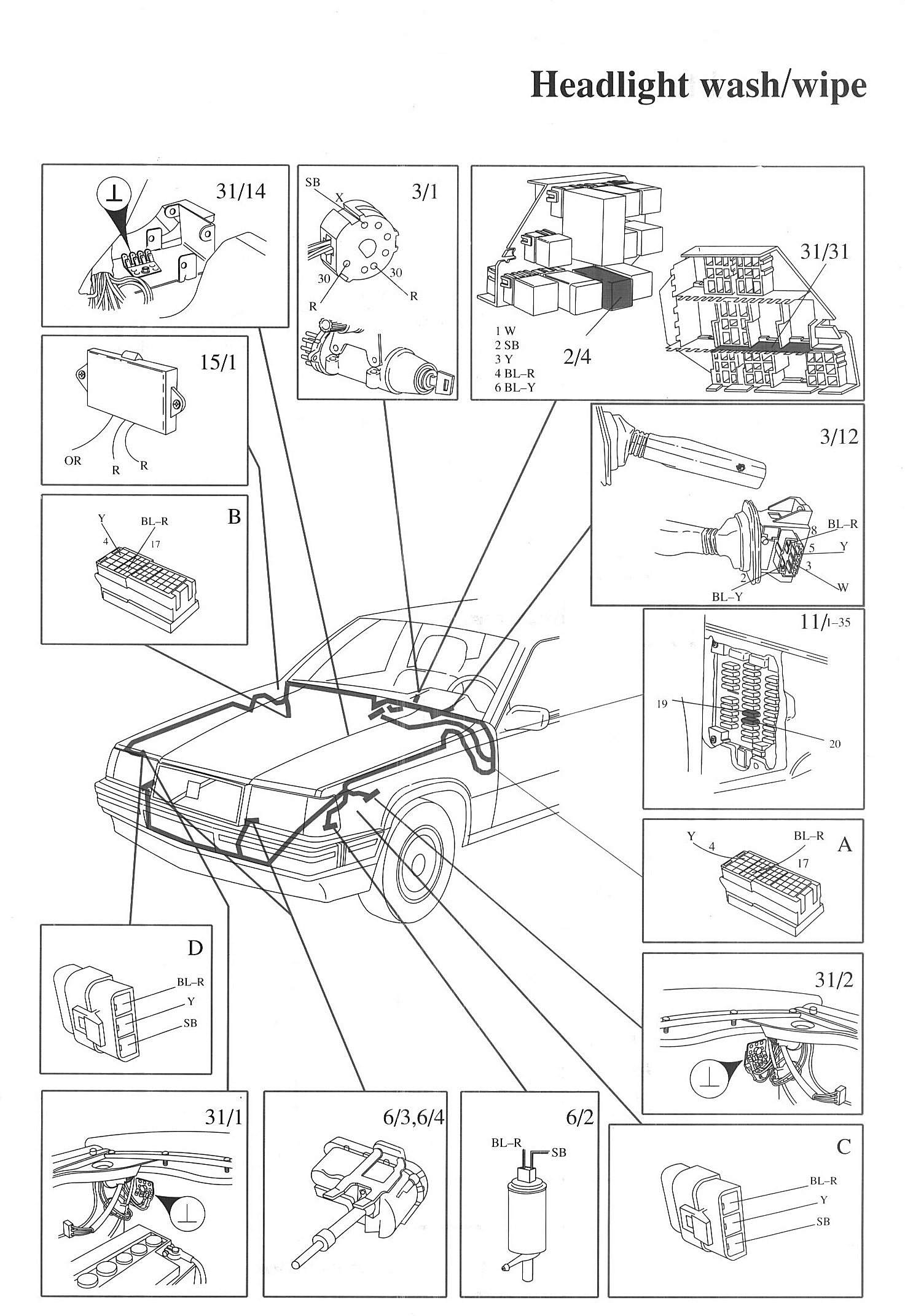

Component / Connector Locations:

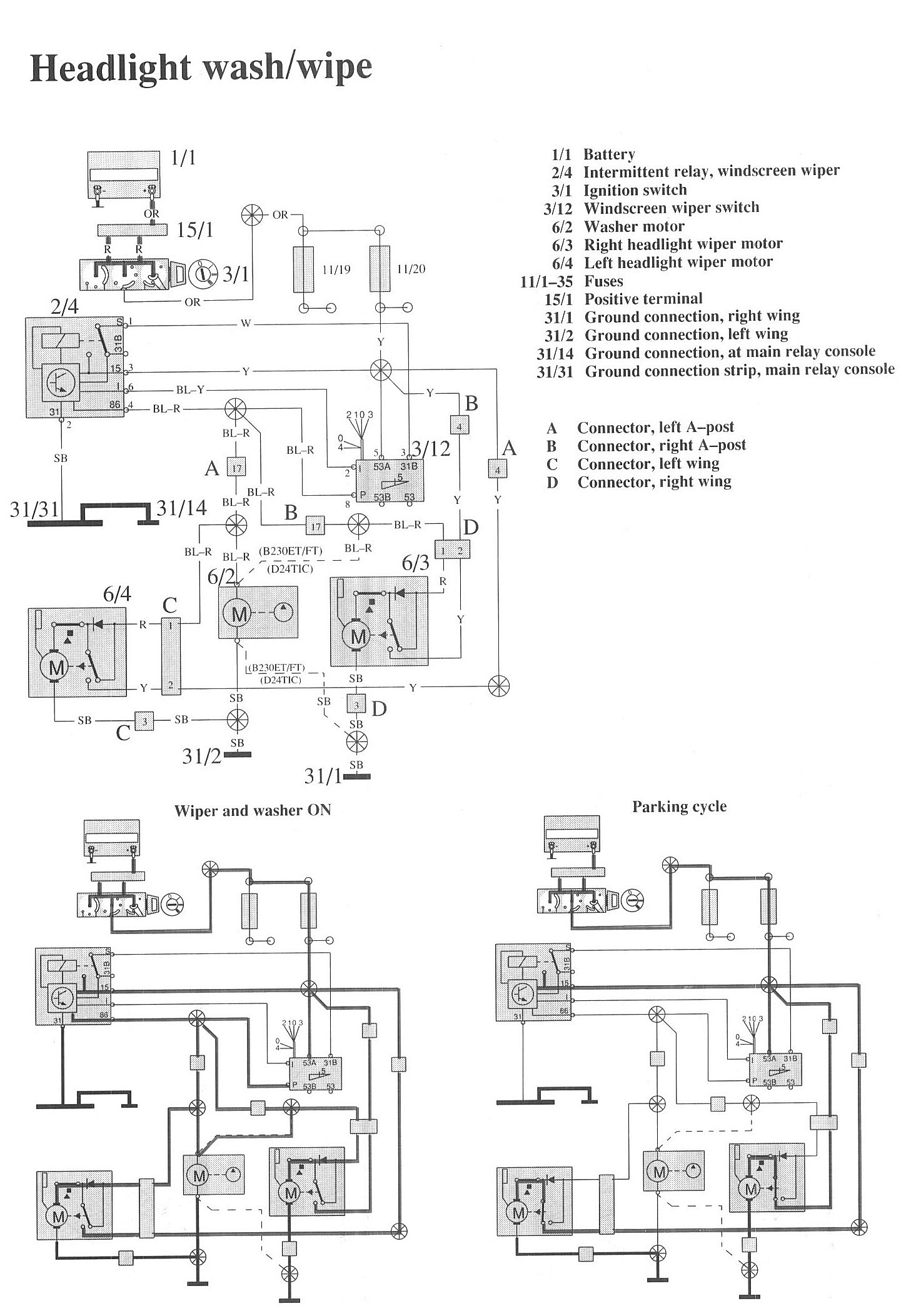

Wiring Diagrams:

LEGEND
1/1 Battery
2/4 Intermittent relay, windscreen wiper
3/1 Ignition switch
3/12 Windscreen wiper switch
6/2 Washer motor
6/3 Right headlight wiper motor
6/4 Left headlight wiper motor

11/1-35 Fuses
15/1 Positive terminal
31/1 Ground connection, right wing
31/2 Ground connection, left wing
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console
