Lighting, Instrument and Controls

Wiring Diagrams:

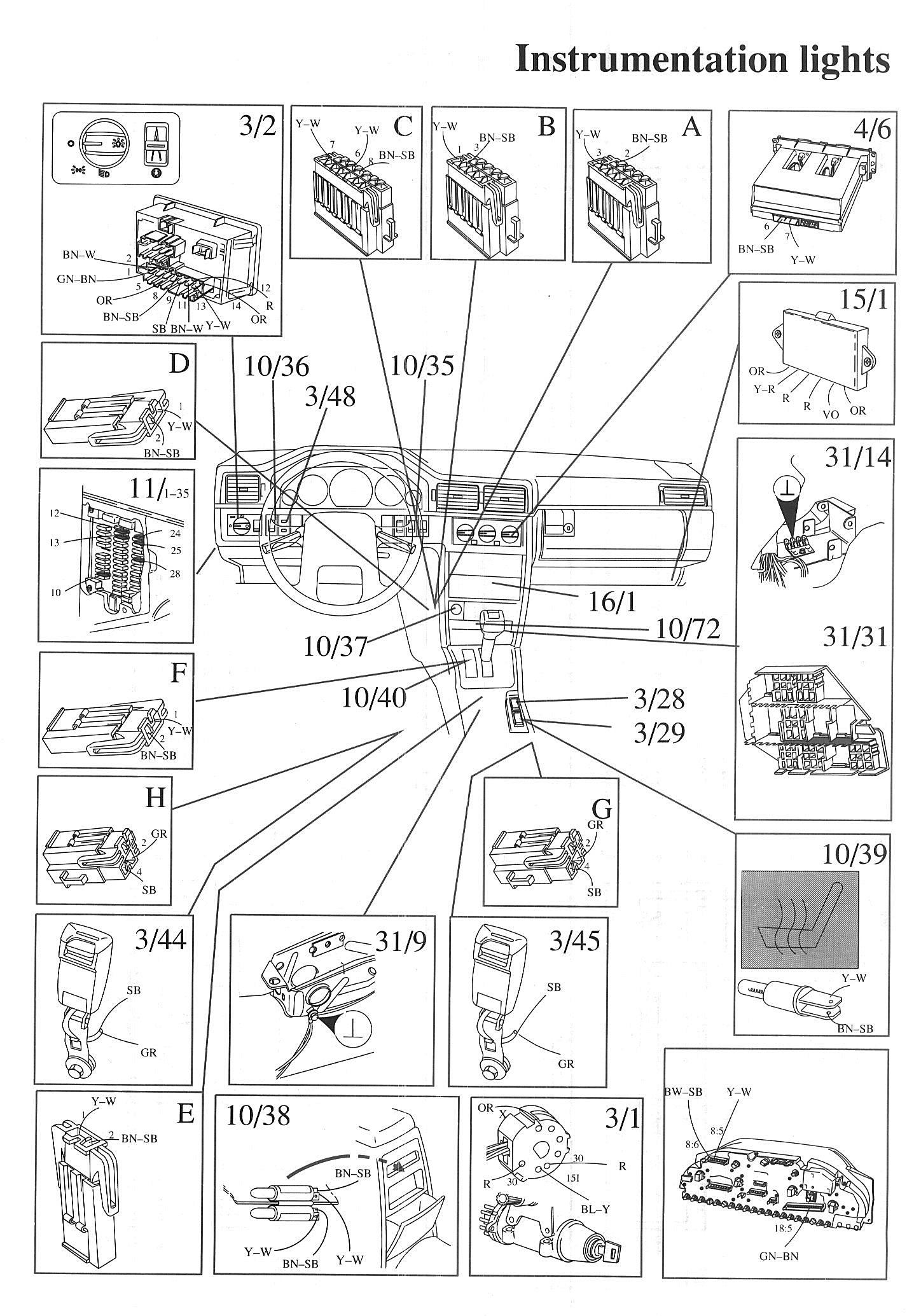

Component / Connector Locations:

LEGEND
1/1 Battery
371 Ignition switch
3/2 Headlight switch
3/28 Switch, heated driver seat
3/29 Switch, heated passenger seat
3/44 Seat belt lock, driver
3/45 Seat belt lock, passenger
3/48 Clock adjustment
4/6 Control unit, ECC
5/8 8-pole connection to combined instrument panel
5/18 18-pole connection to combined instrument panel

10/35 Indicator lamp, switch, power sunroof
10/36 Control, dashboard lights
10/37 Cigar lighter light
10/38 Ashtray light, rear
10/39 Indicator lamp, switch, heated seat
10/40 Indicator lamp, gear selector position
10/72 Ashtray light, front
11/1-35 Fuses
15/1 Positive terminal
16/1 Radio
31/9 Ground connection, at handbrake handle
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console
