Interior, Engine Compartment, Trunk and Door Open Lights

Wiring Diagrams:

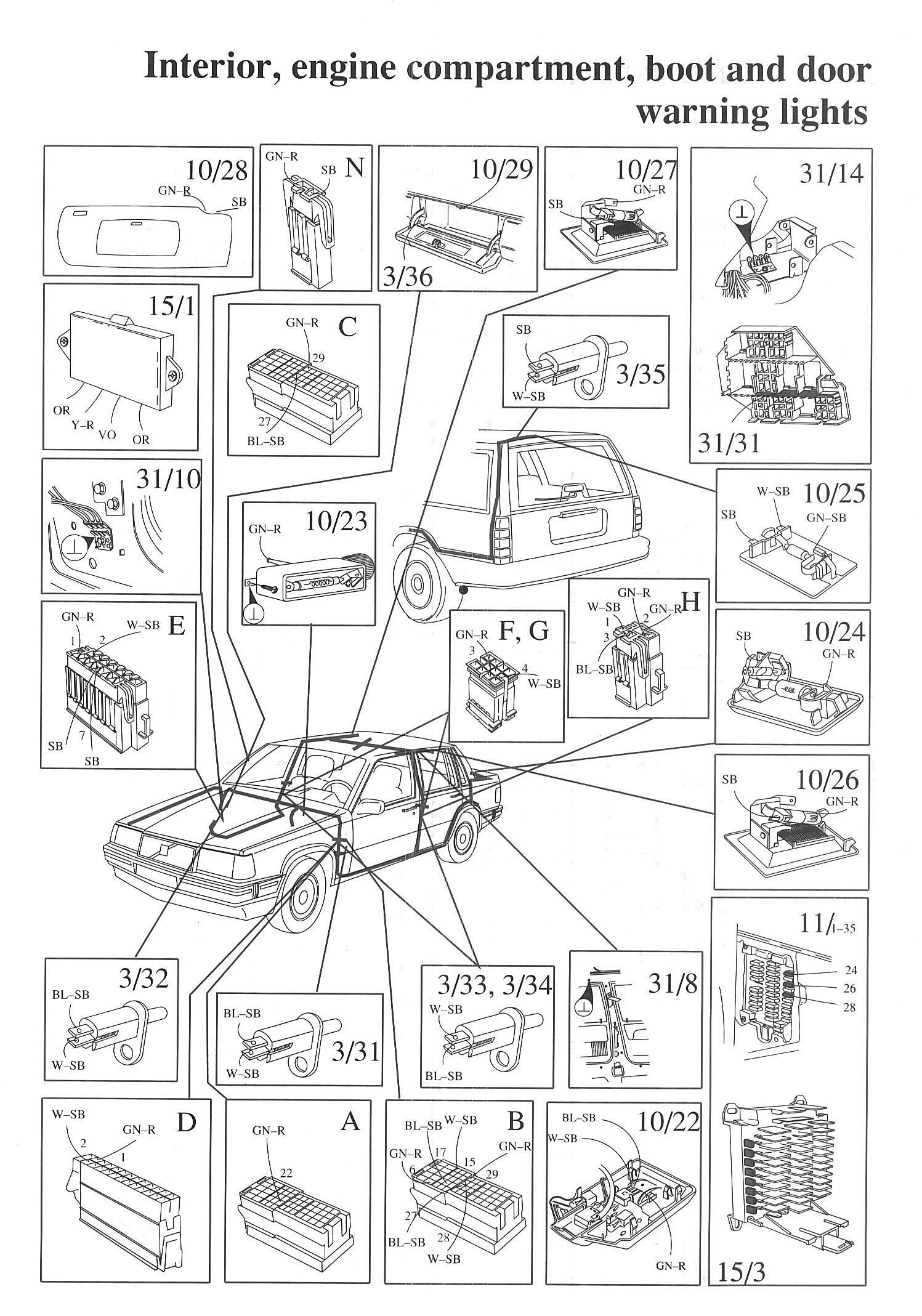

Component / Connector Locations:

LEGEND
1/1 Battery
3/31 Door switch, driver side
3/32 Door switch, passenger side
3/33 Door switch, driver side - rear
3/34 Door switch, passenger side - rear
3/35 Door switch, rear door (5-door cars only)
3/36 Glove compartment light switch

10/22 Courtesy light
10/23 Engine compartment lights
10/24 Boot light
10/25 Courtesy light rear (5-door cars only)
10/26 Reading lamp left rear
10/27 Reading lamp right rear
10/28 Vanity mirror light
10/29 Glove compartment light
10/30 Open door warning light, driver door
10/31 Open door warning light, passenger door
19/32 Open door warning light, driver side - rear
10/33 Open door warning light, passenger side - rear
11/1-35 Fuses
15/1 Positive terminal
15/3 30 strip in main relay console
31/8 Ground connection, left B-post
31/10 Ground connection, right A-post
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console
131/34 Ground connection, tailgate switch
