Home >> Volvo >> 1989 >> 780 L4-2320cc 2.3L SOHC Turbo VIN 87 B230FT >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Parking Lamp

Parking Lamp

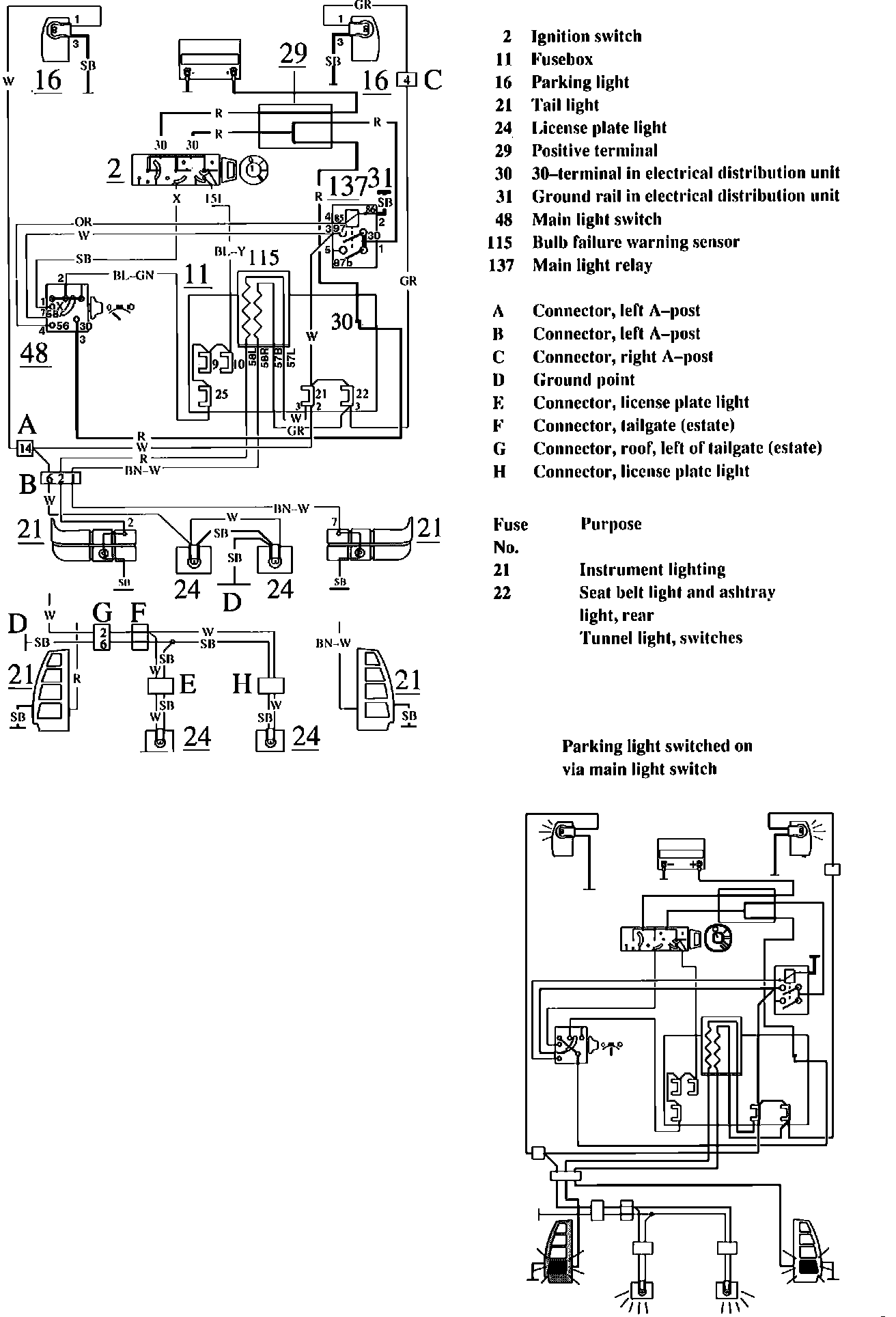

Parking, Tail and License Plate Lights:
