Electrical Diagrams

SRS AND SEAT BELT TENSIONER

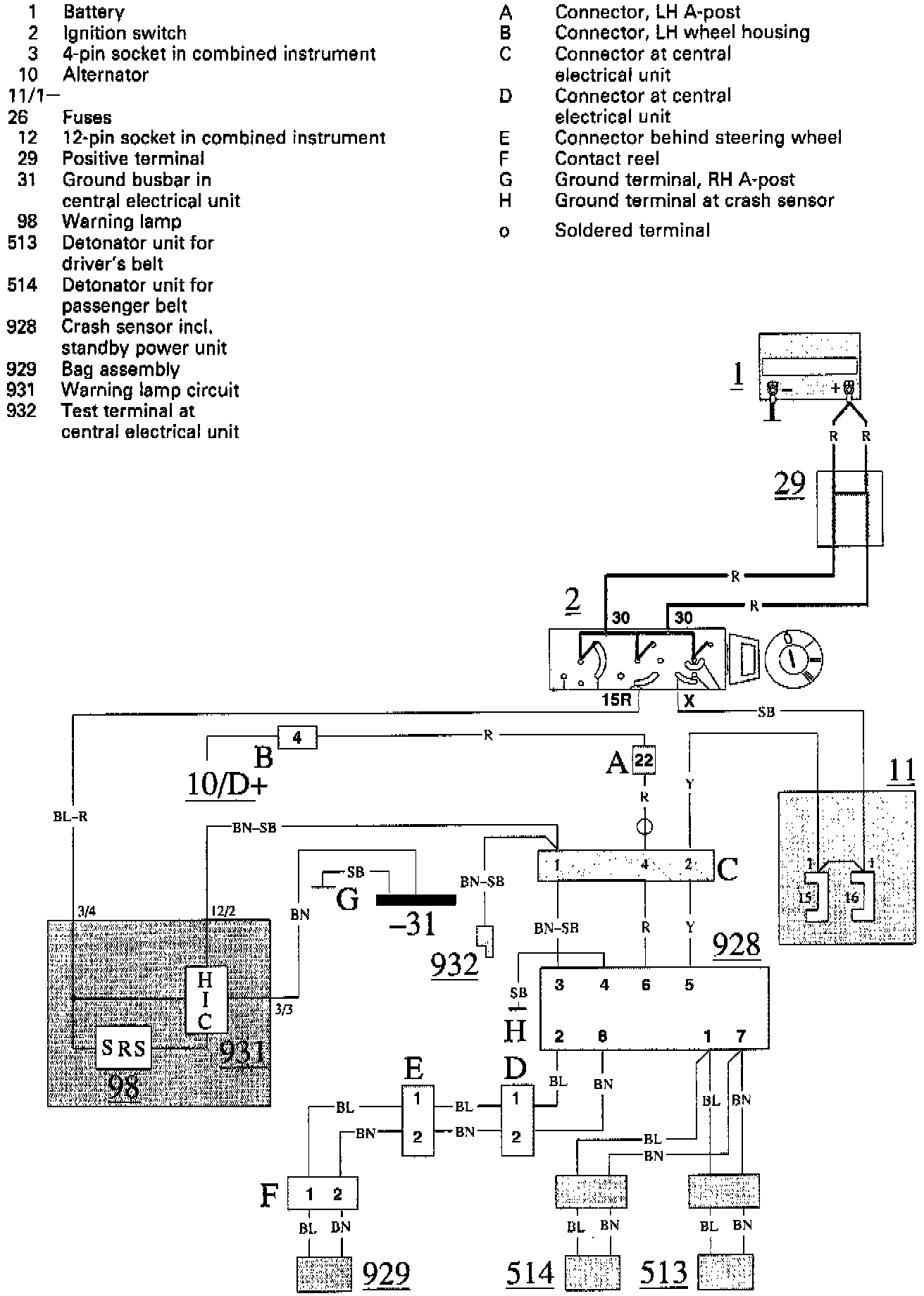

SRS Wiring Diagram:





Wiring Diagram

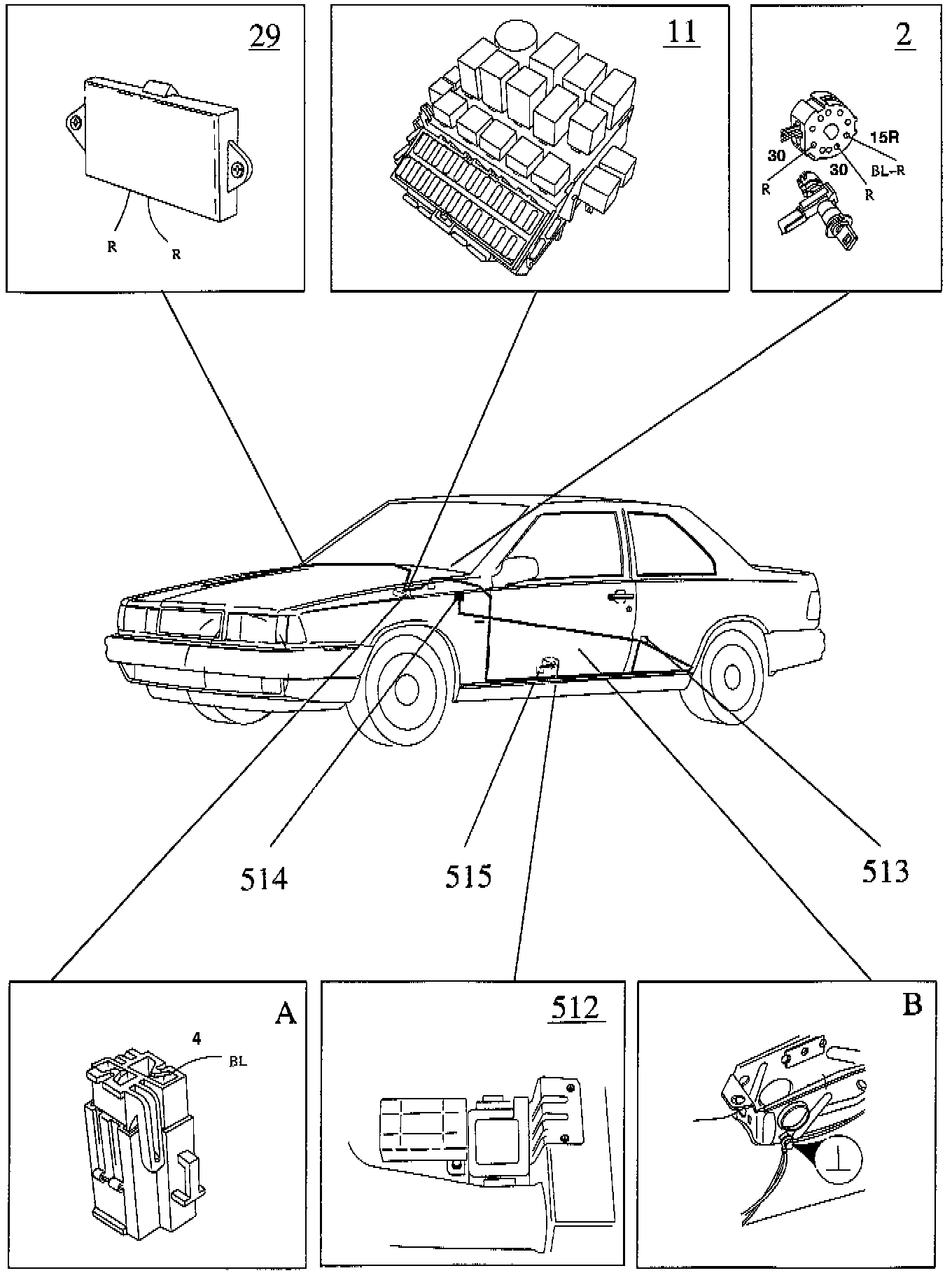

SRS Component I.D. And Location:





Component I.D. and Location


SEAT BELT TENSIONER ONLY

SRS Wiring Diagram:





Wiring Diagram

SRS Component I.D. And Location:





Component I.D. and Location
