Lamp Out Sensor
>>
Less High-Level Brake Light
Less High-Level Brake Light

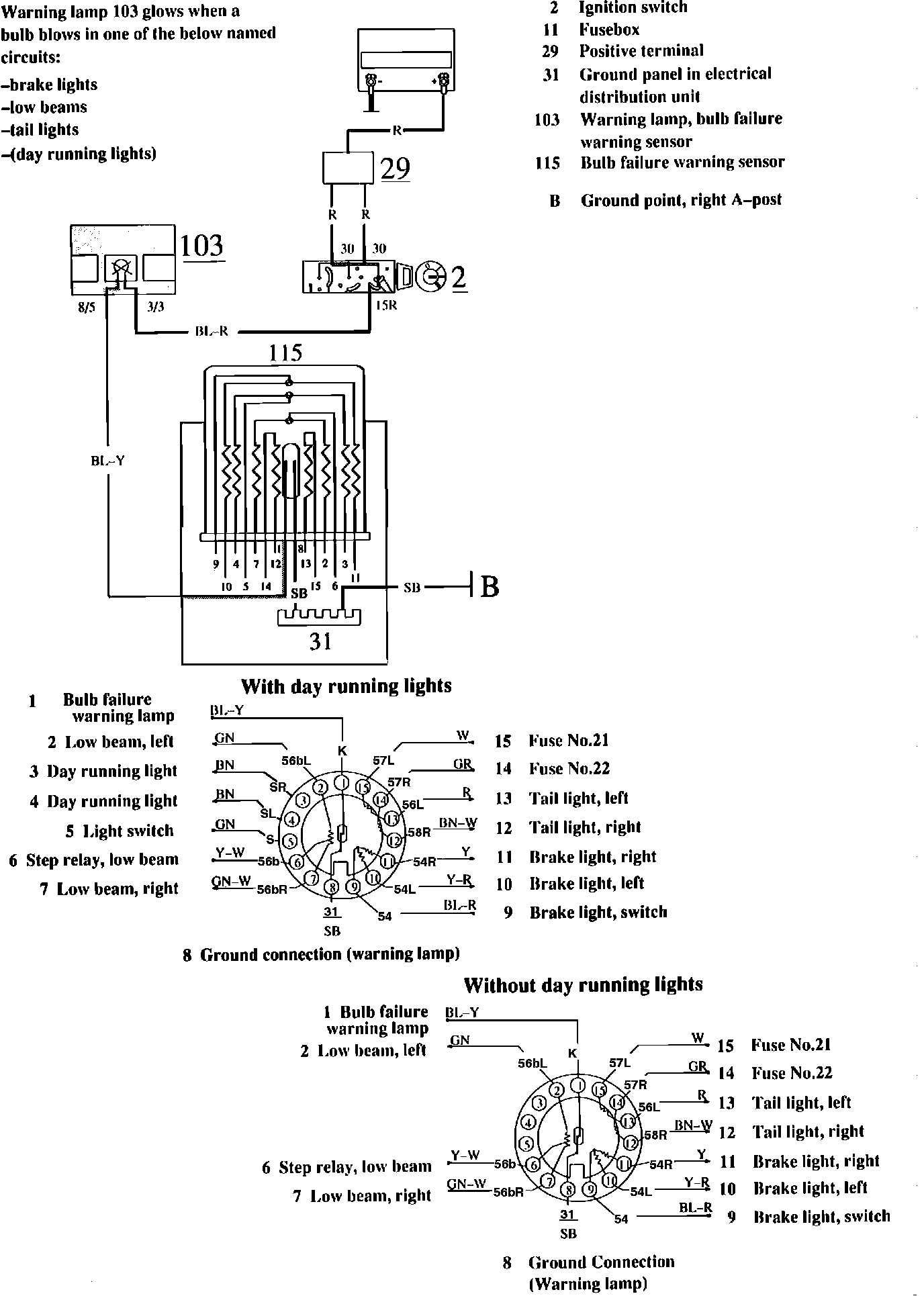

Bulb Failure Warning Sensor. Without High Level Brake Light:
