Rear Window Defroster & Heated Door Mirrors With Delay Relay

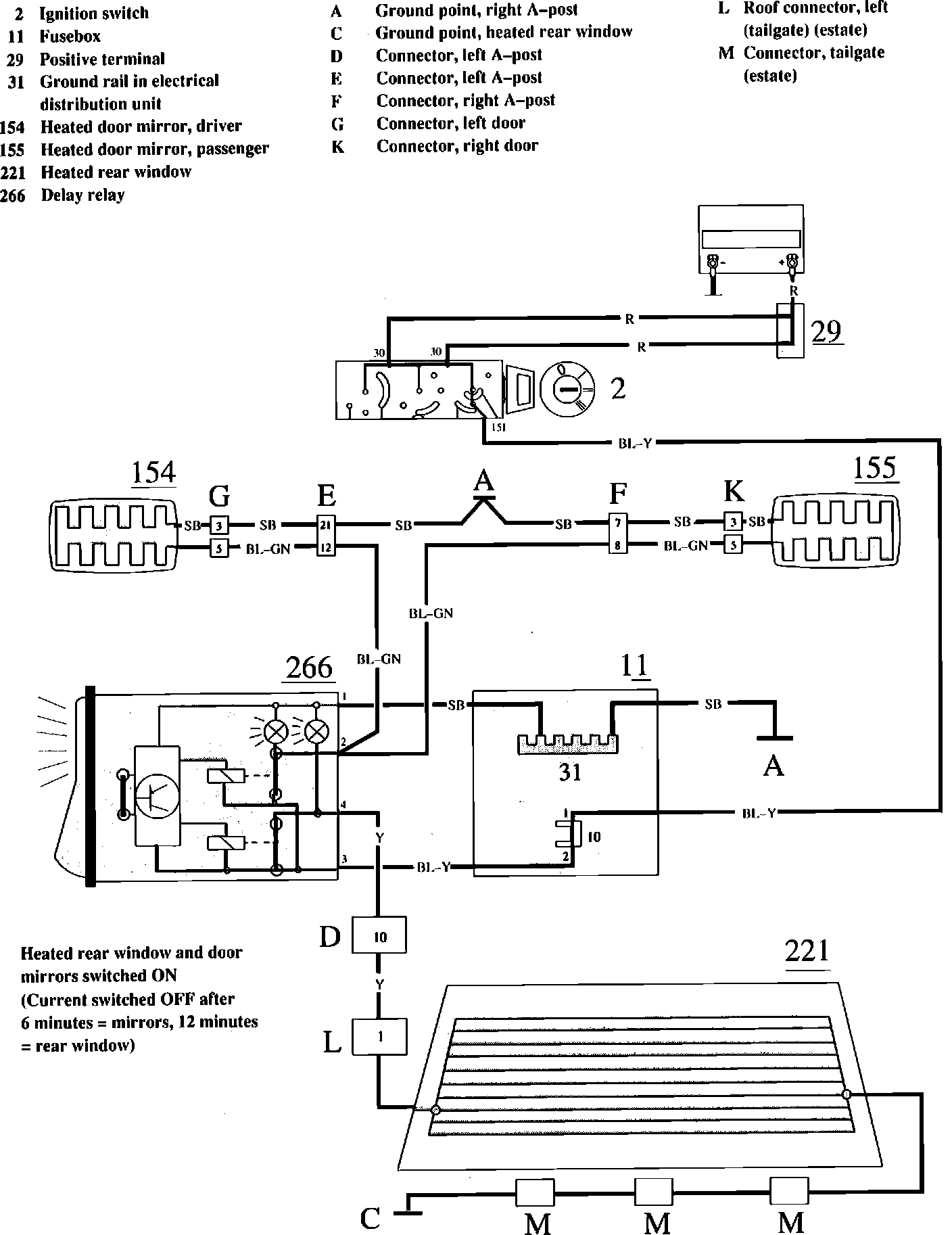

Heated Rear Window and Door Mirrors With Delay Relay:
