Power Locks: Locations

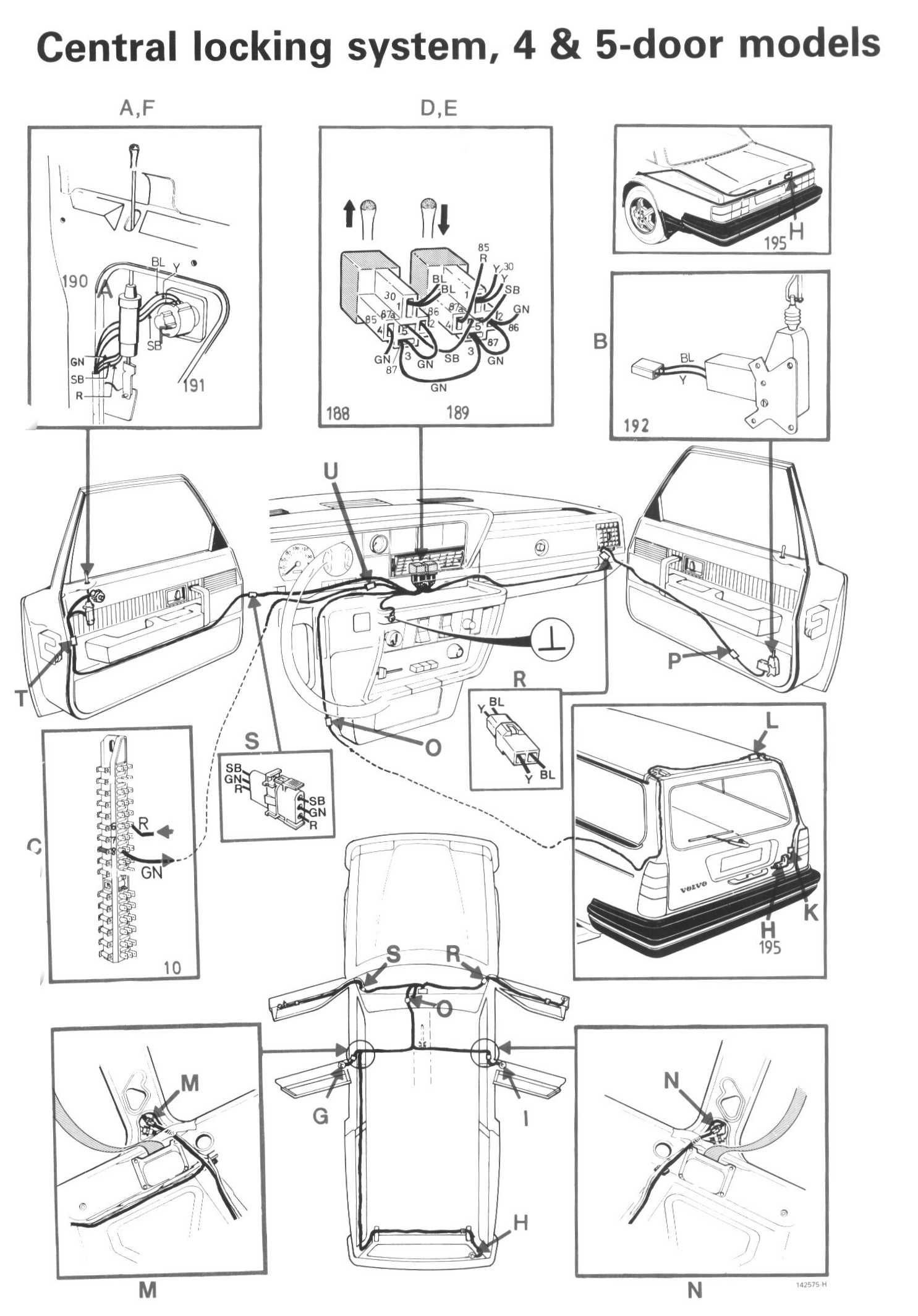

Component / Connector Views:

Wiring Diagrams:

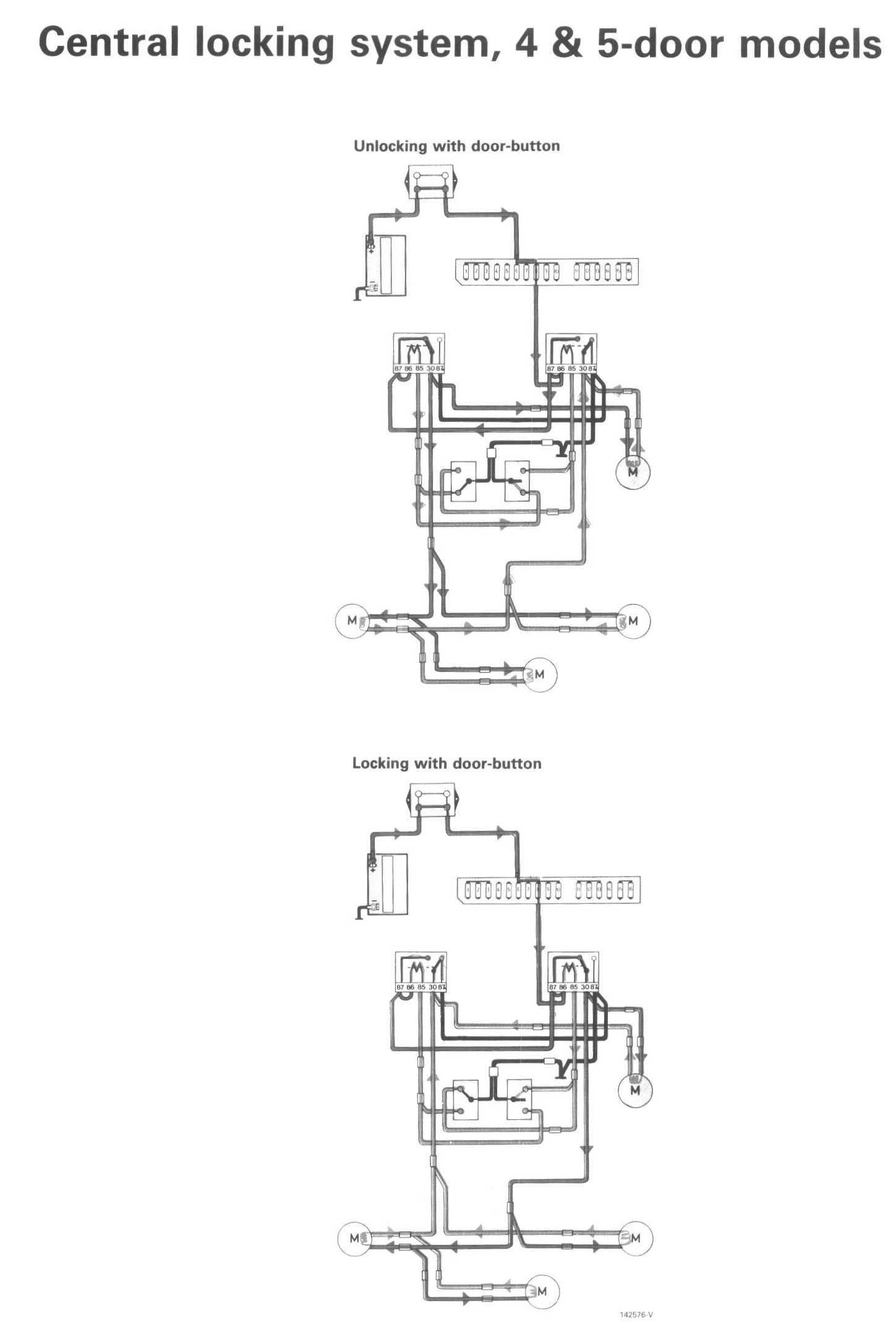

Unlocking / Locking With Door-button:

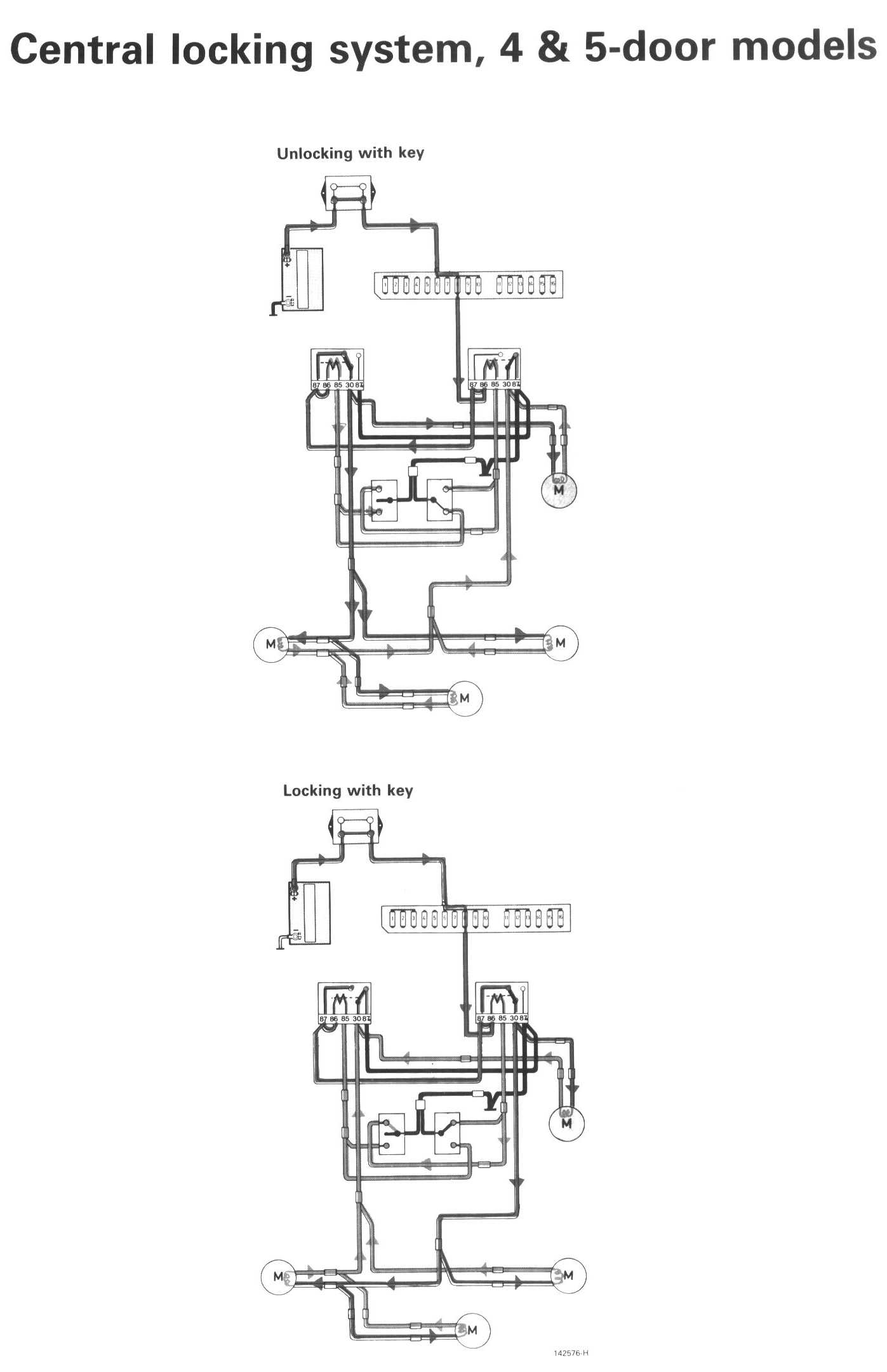

Unlocking / Locking With Key:

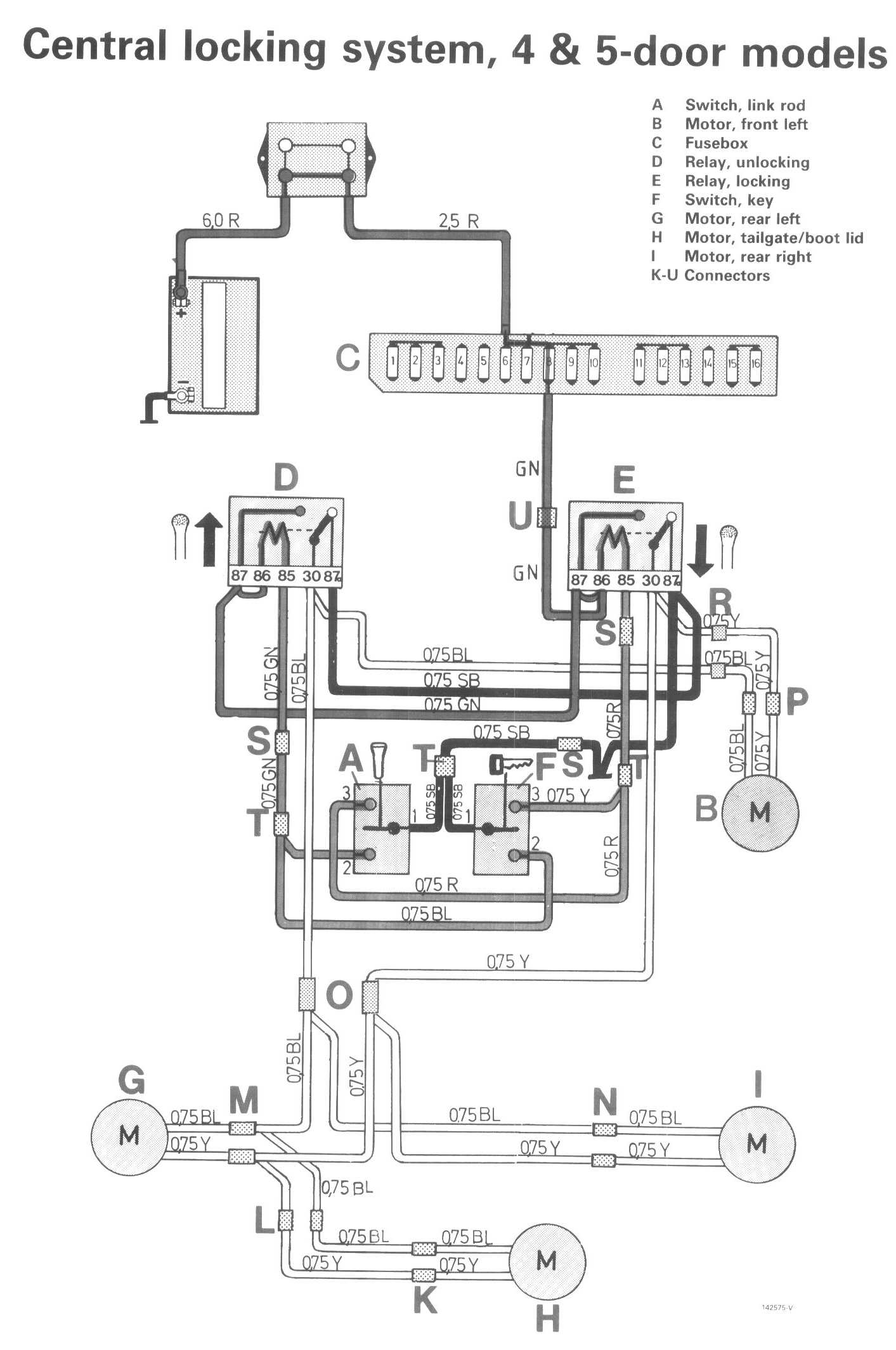

LEGEND
A Switch, link rod
B Motor, front left
C Fusebox
D Relay, unlocking
E Relay, locking
F Switch. key
G Motor, rear left
H Motor, tailgate/boot lid
I Motor, rear right
K-U Connectors
