Fuse/Relay Identification and Location
Fuse/Relay Identification and Location
Fuse/Relay Identification and Location

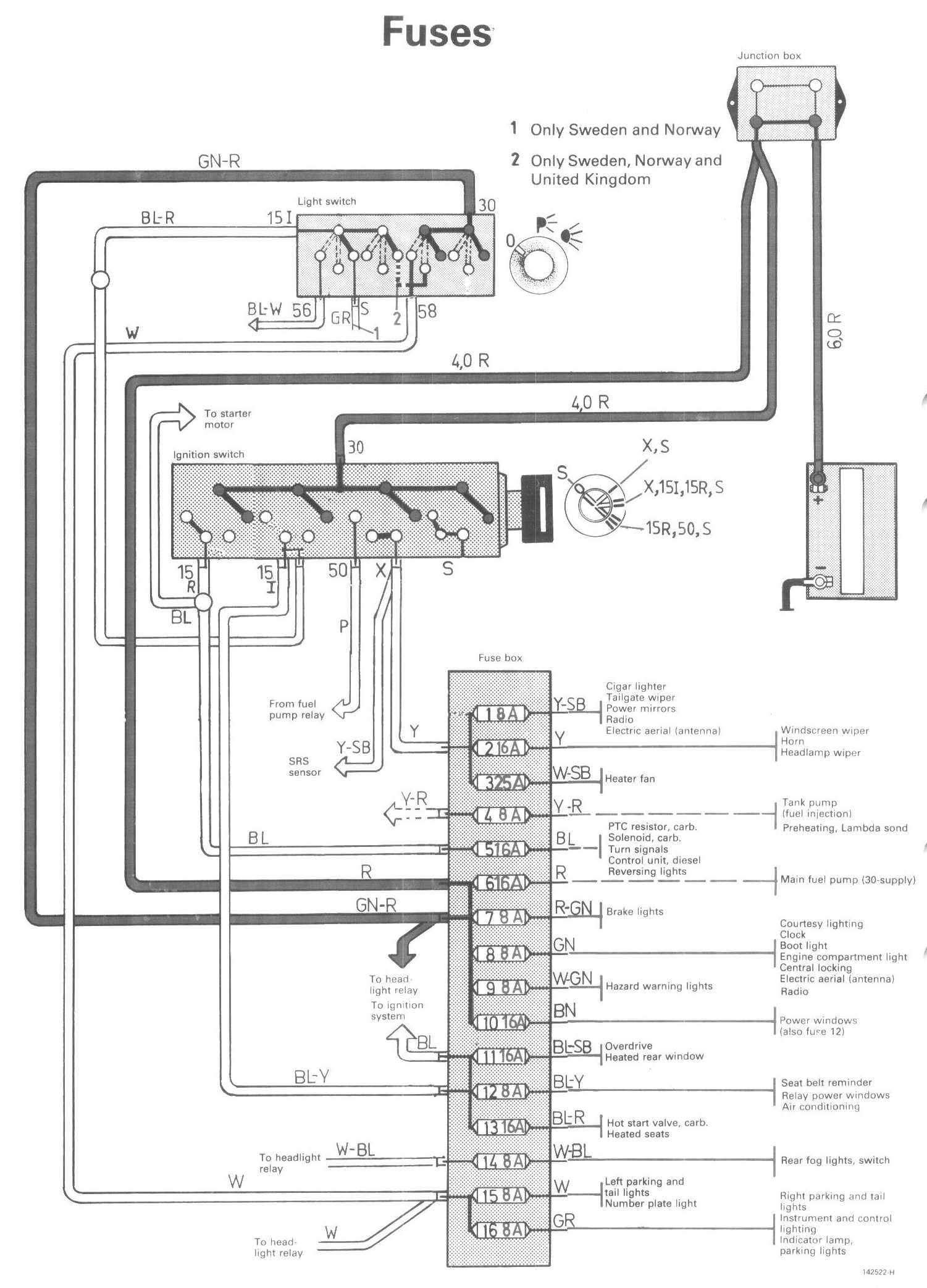

Fuses:

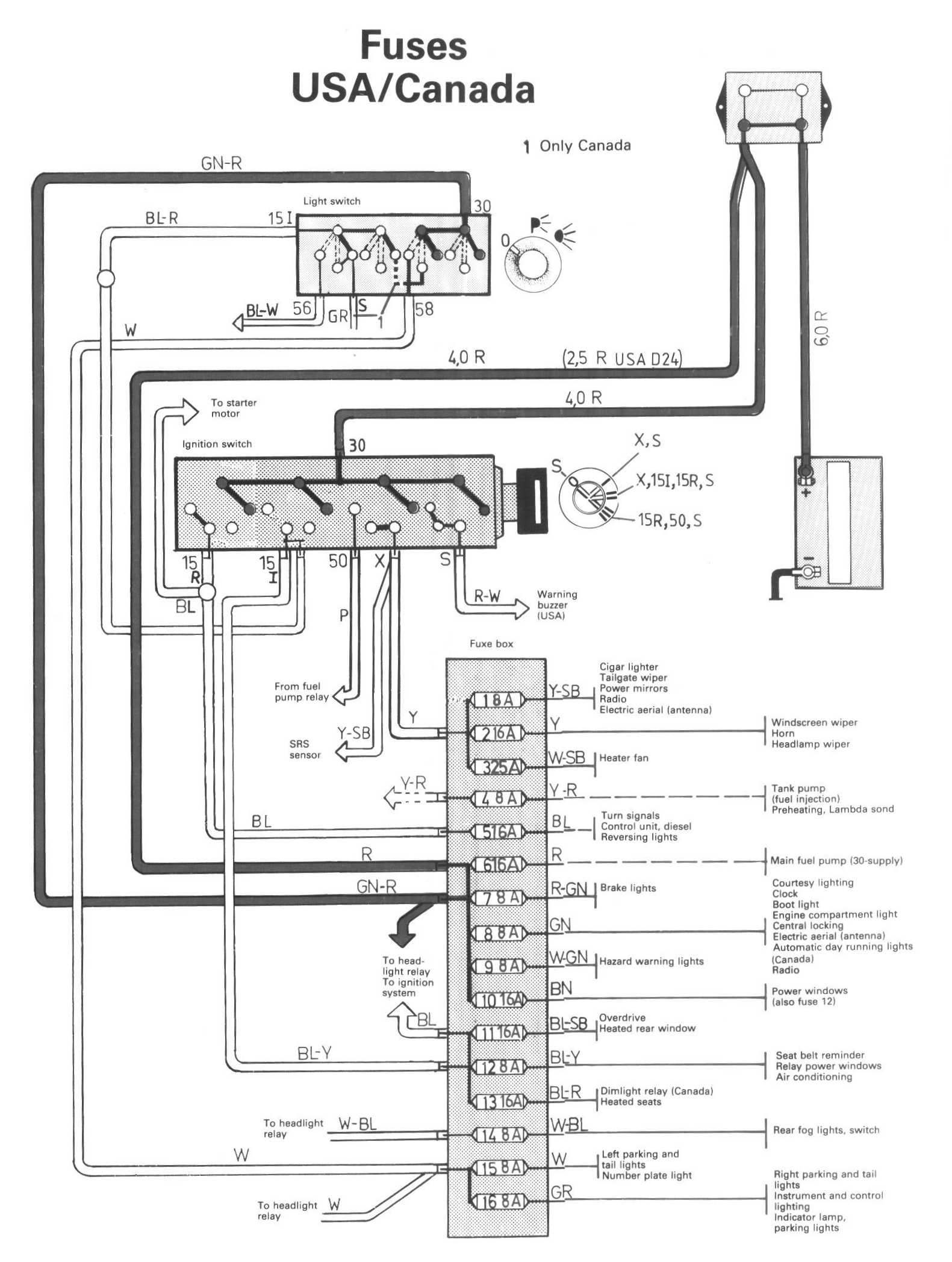

Fuses USA/Canada:

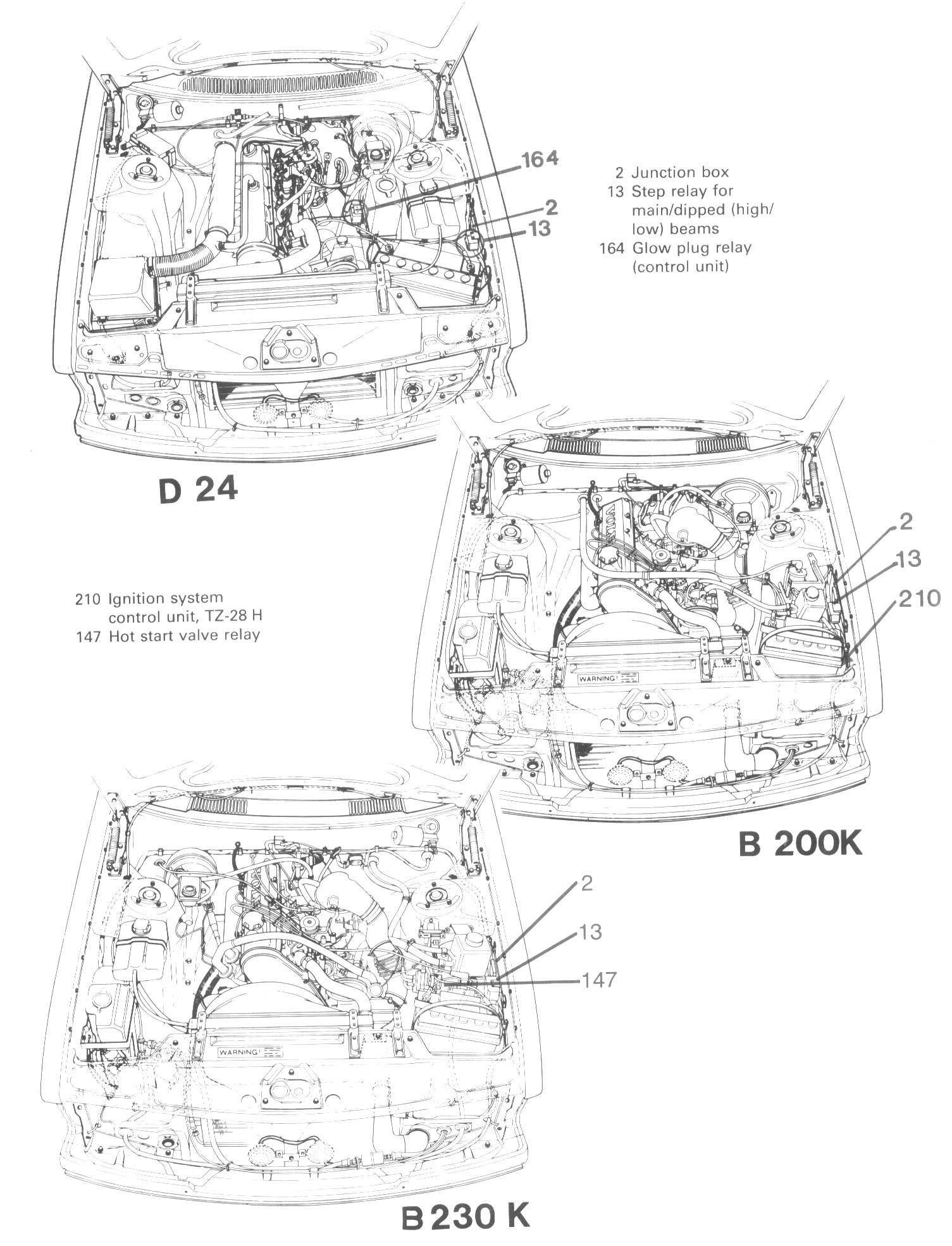

Relay Locations:
Relay Identification:
