System Diagram

Wiring Diagrams:

Component / Connector Views:

Setting / Maintaining Speed:

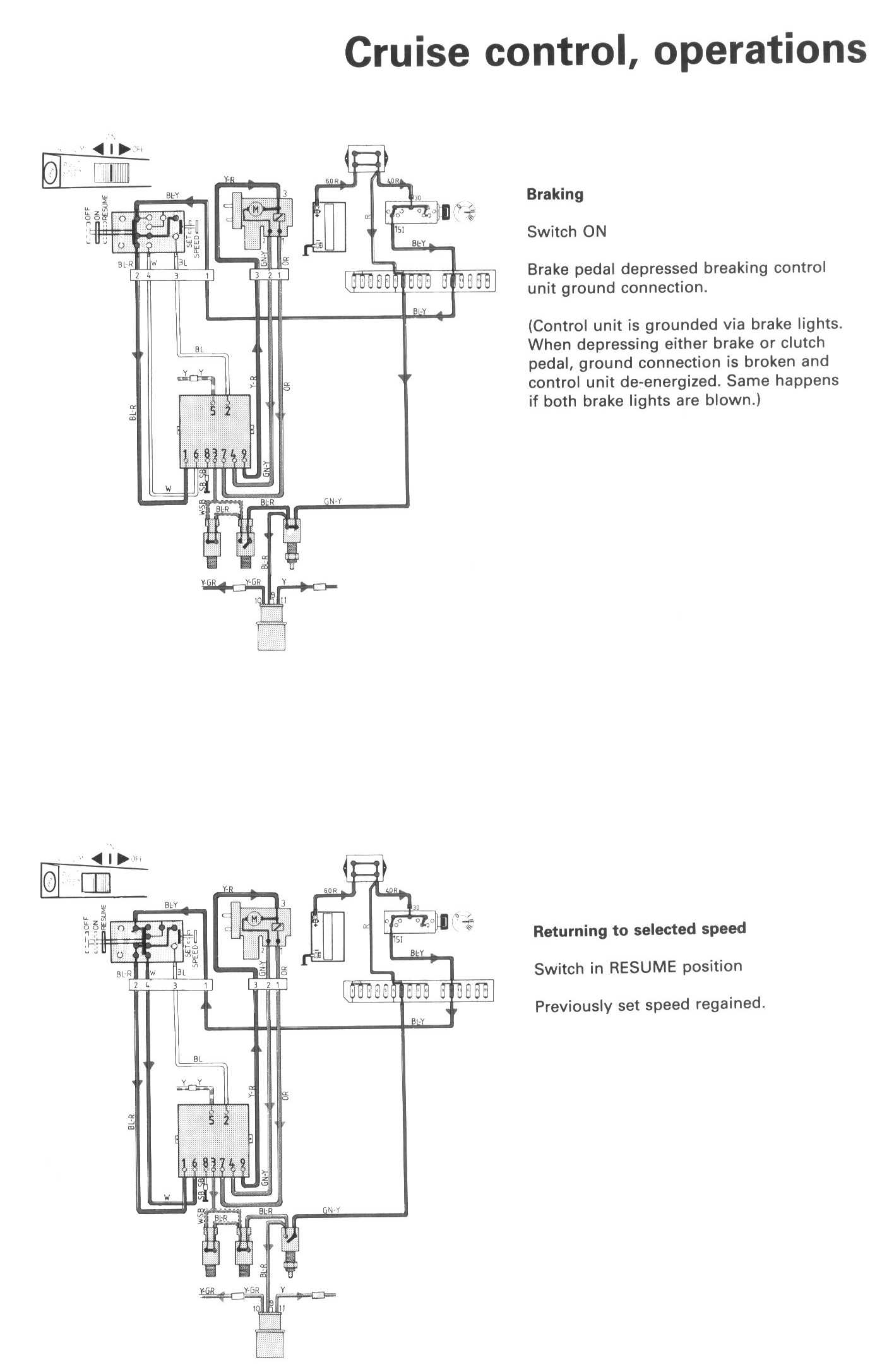

Breaking / Return To Speed:

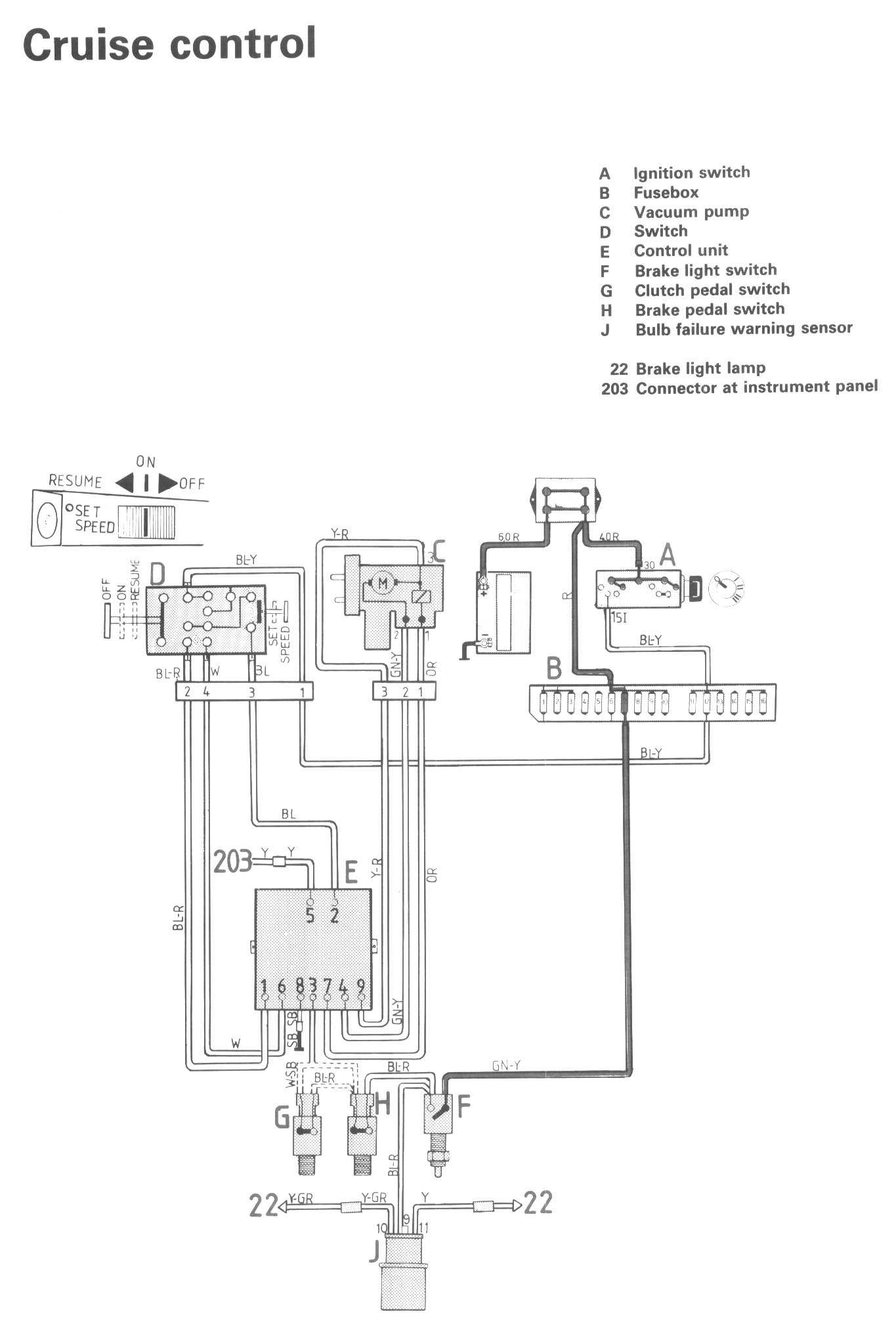

LEGEND
A Ignition switch
B Fusebox
C Vacuum pump
D Switch
E Control unit
F Brake light switch
G Clutch pedal switch
H Brake pedal switch
J Bulb failure warning sensor
22 Brake light lamp
203 Connector at instrument panel
