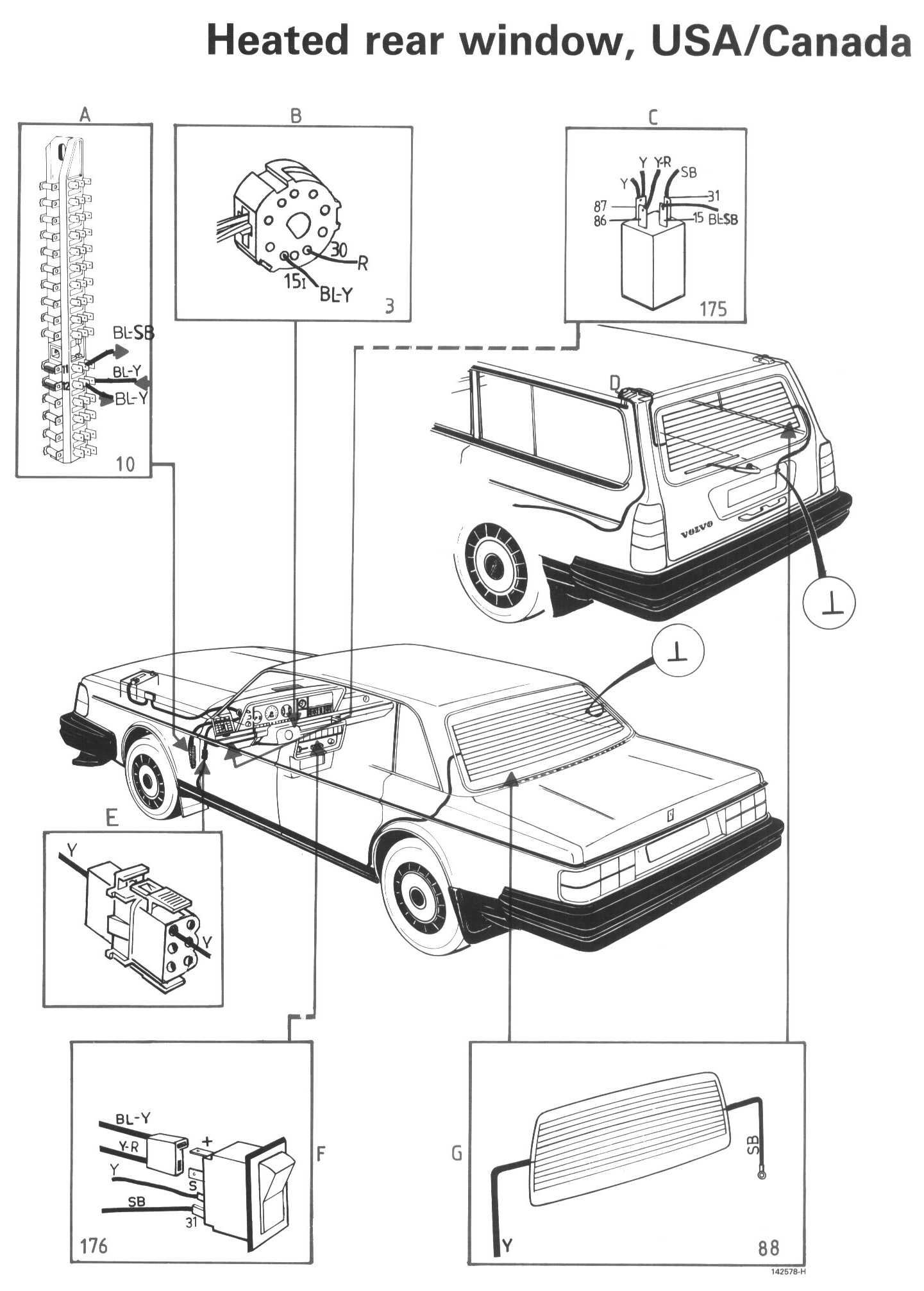

Heated Rear Window, USA/CAN

Wiring Diagrams:

Component / Connector Views:

LEGEND
A Fusebox
B Ignition switch
C Time delay relay
D Connector
E Connector
F Switch for heated rear window
G Heated rear window
