Air Conditioning

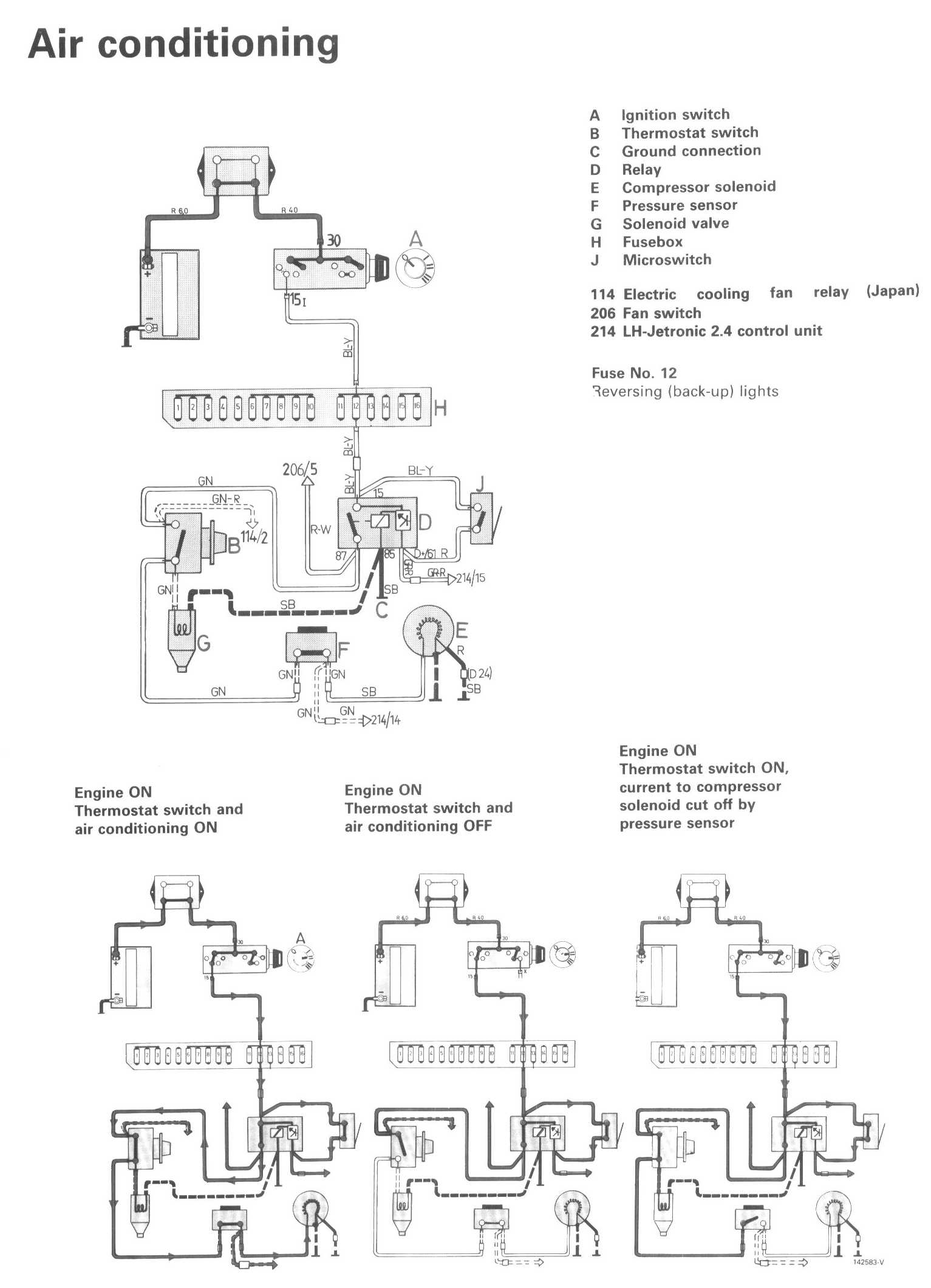

Wiring Diagrams:

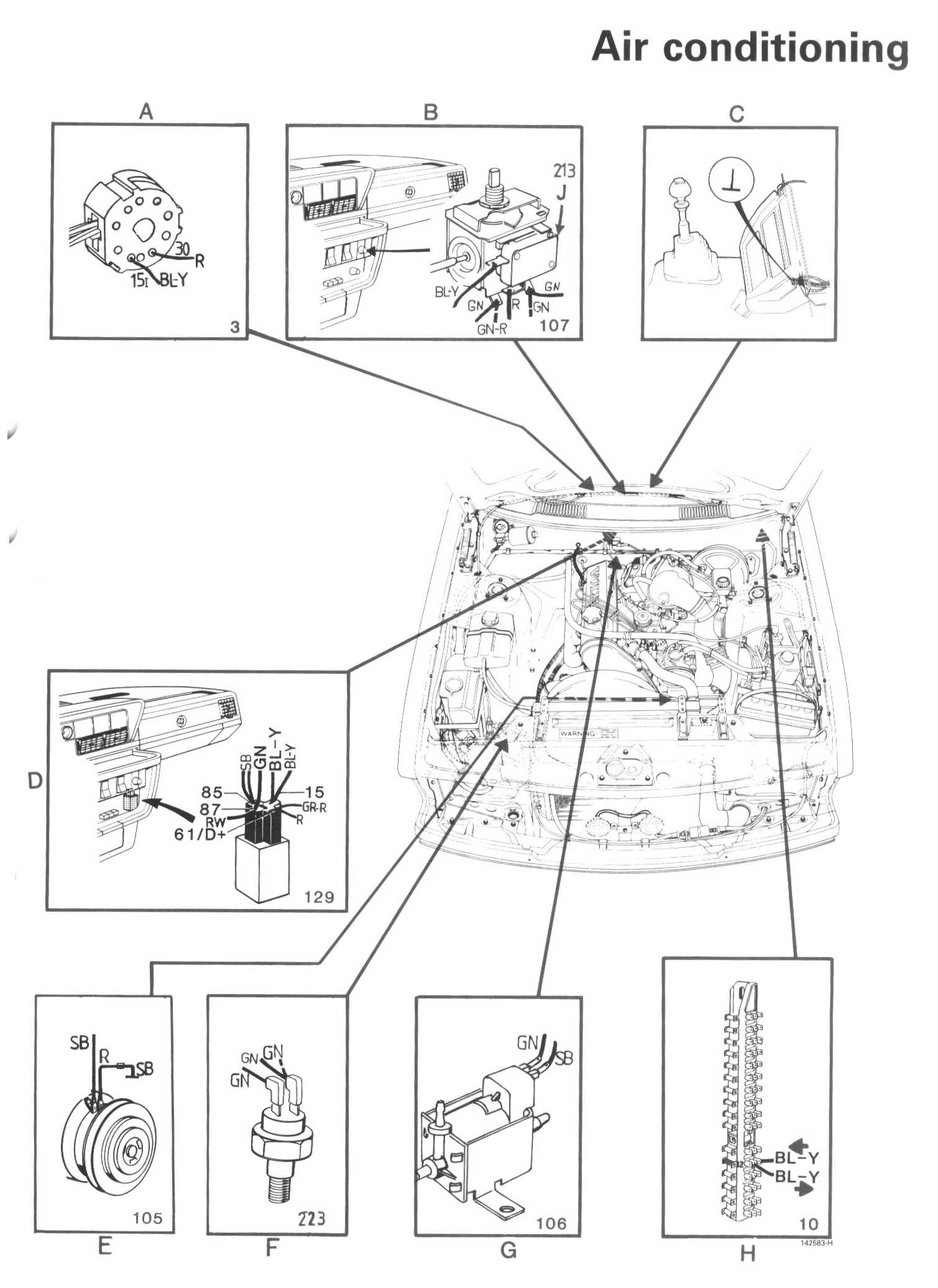

Component / Connector Views:

LEGEND
A Ignition switch
B Thermostat switch
C Ground connection
D Relay
E Compressor solenoid
F Pressure sensor
G Solenoid
H Fusebox
J Microswitch

114 Electric cooling fan relay (Japan)
206 Fan switch
214 LH-Jetronic 2.4 control unit
