Courtesy Light

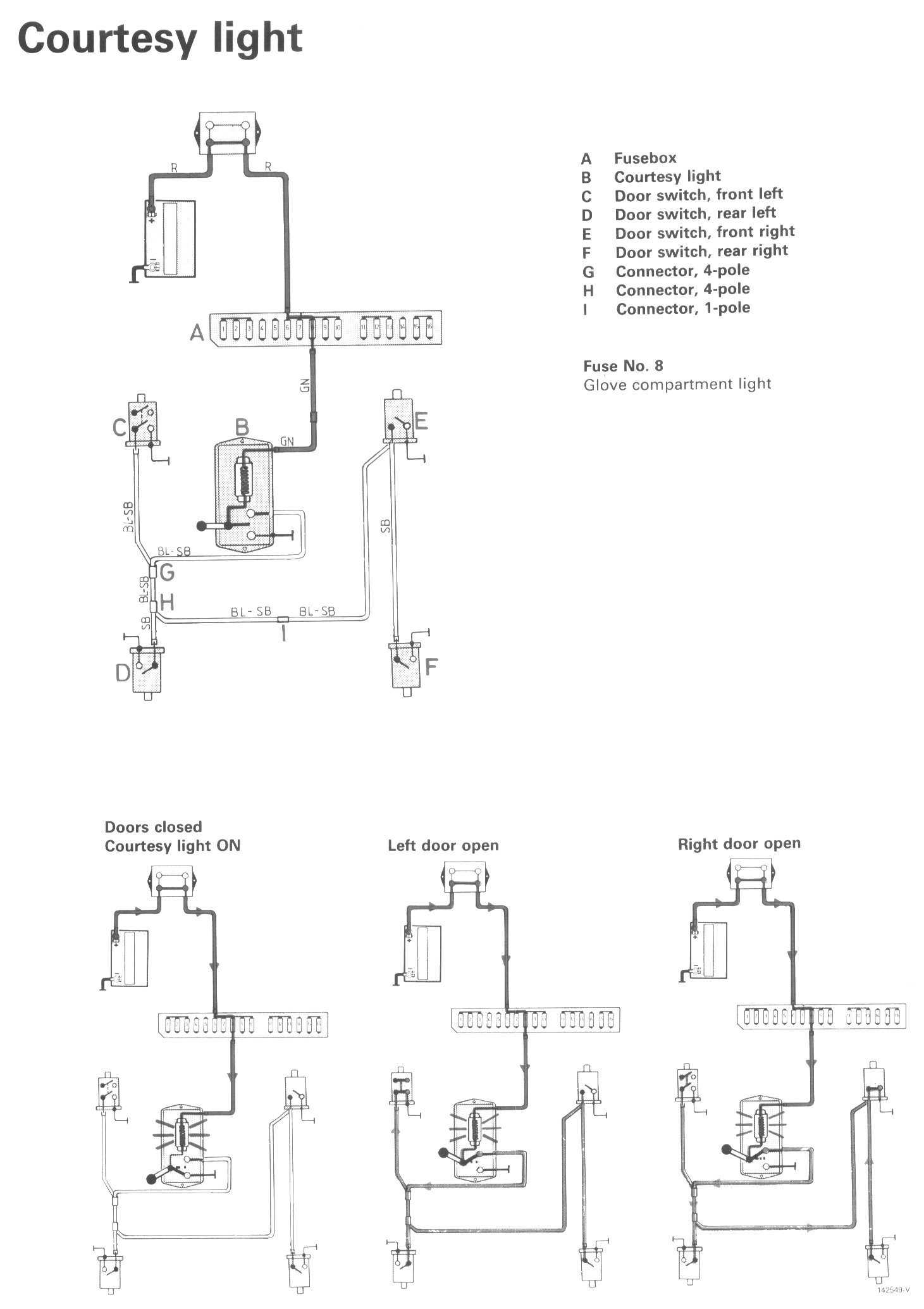

Wiring Diagrams:

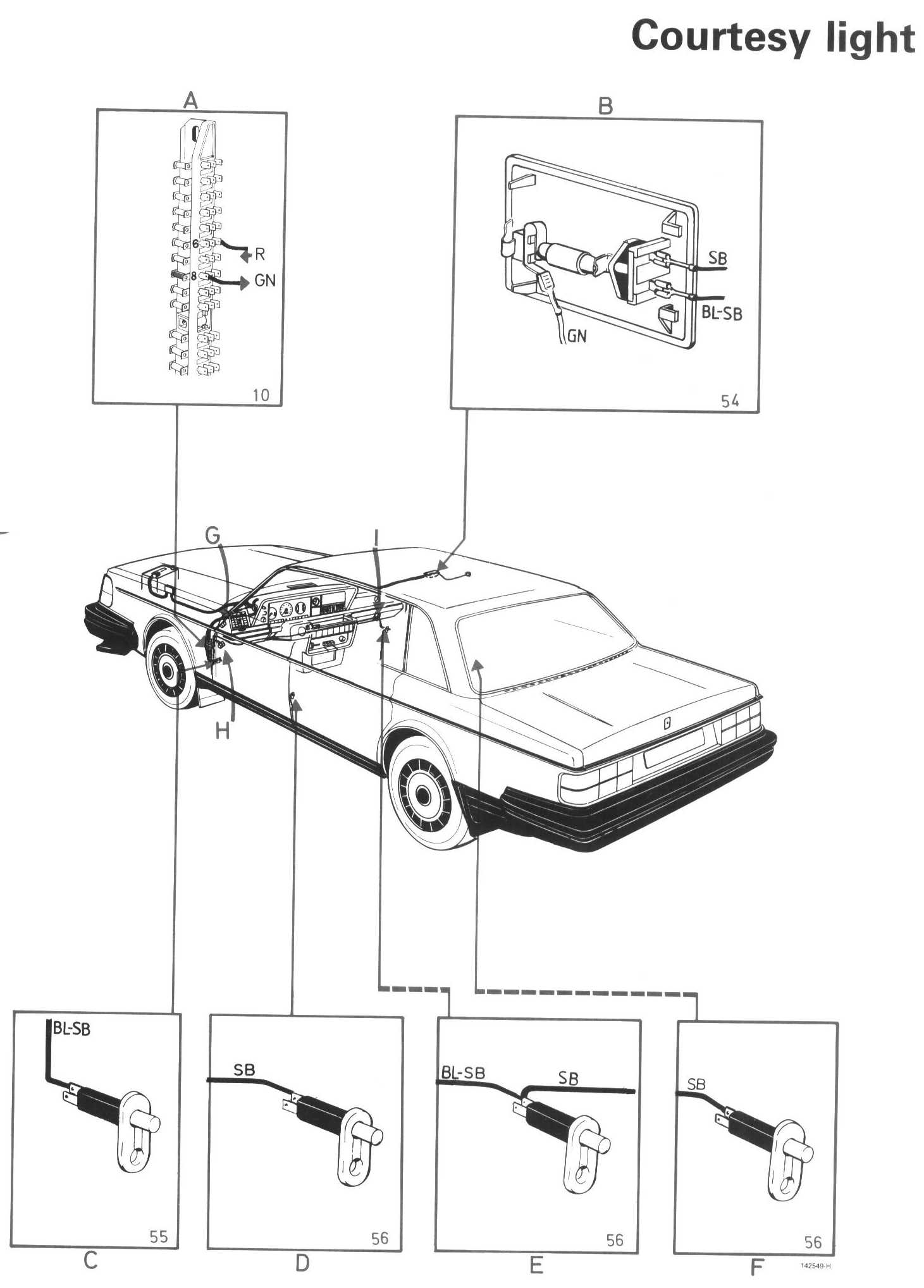

Component / Connector Views:

LEGEND
A Fusebox
B Courtesy light
C Door switch, front left
D Door switch. rear left
E Door switch, front right
F Door switch, rear right
G Connector, 4-pole
H Connector, 4-pole
I Connector, 1-pole
