Volvo
>>
1990
>>
240 L4-2.3L SOHC VIN 88 B230F
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Compartment Light and Boot (Trunk) Light
Engine Compartment Light and Boot (Trunk) Light

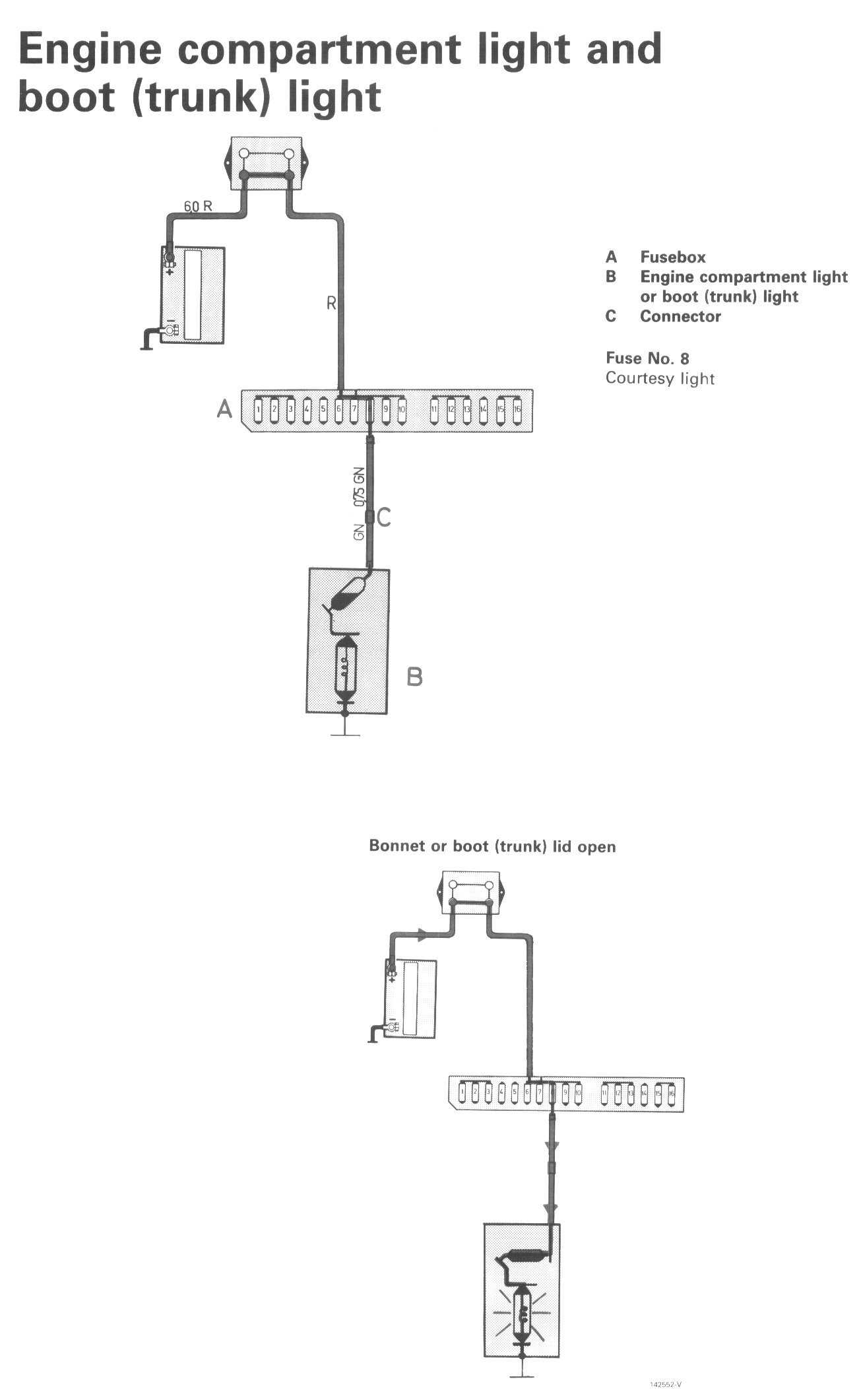

Wiring Diagrams:
Component / Connector Views:
LEGEND
A
Fusebox
B
Engine compartment light or boot (trunk) light
C
Connector
