Main/Dipped Beams

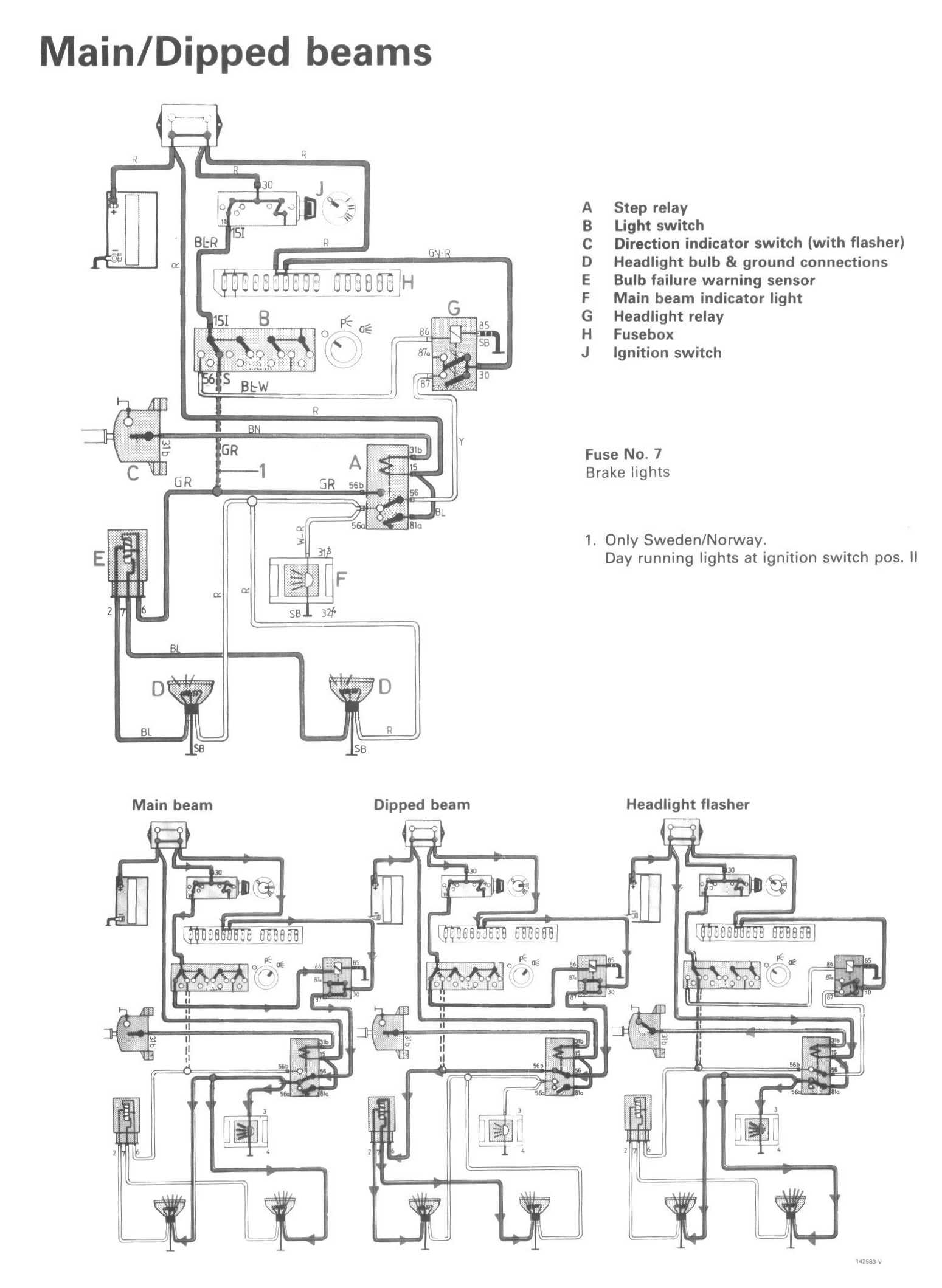

Wiring Diagrams:

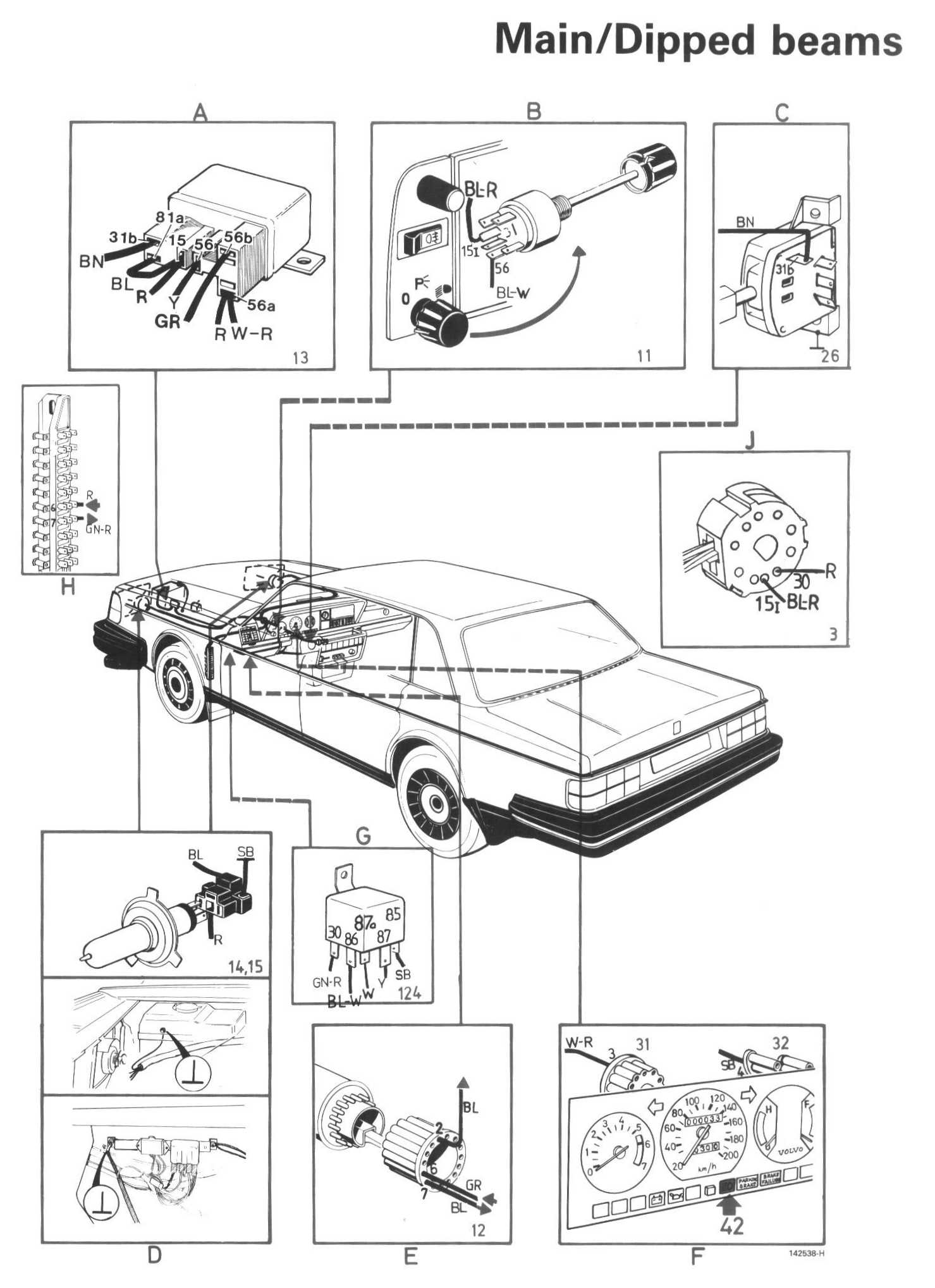

Component / Connector Views:

LEGEND
A Step relay
B Light switch
C Direction indicator switch (with flasher)
D Headlight bulb & ground connections
E Bulb failure warning sensor
F Main beam indicator light
G Headlight relay
H Fusebox
J Ignition switch
