Reversing (Back-Up) Lights, Automatic Transmission

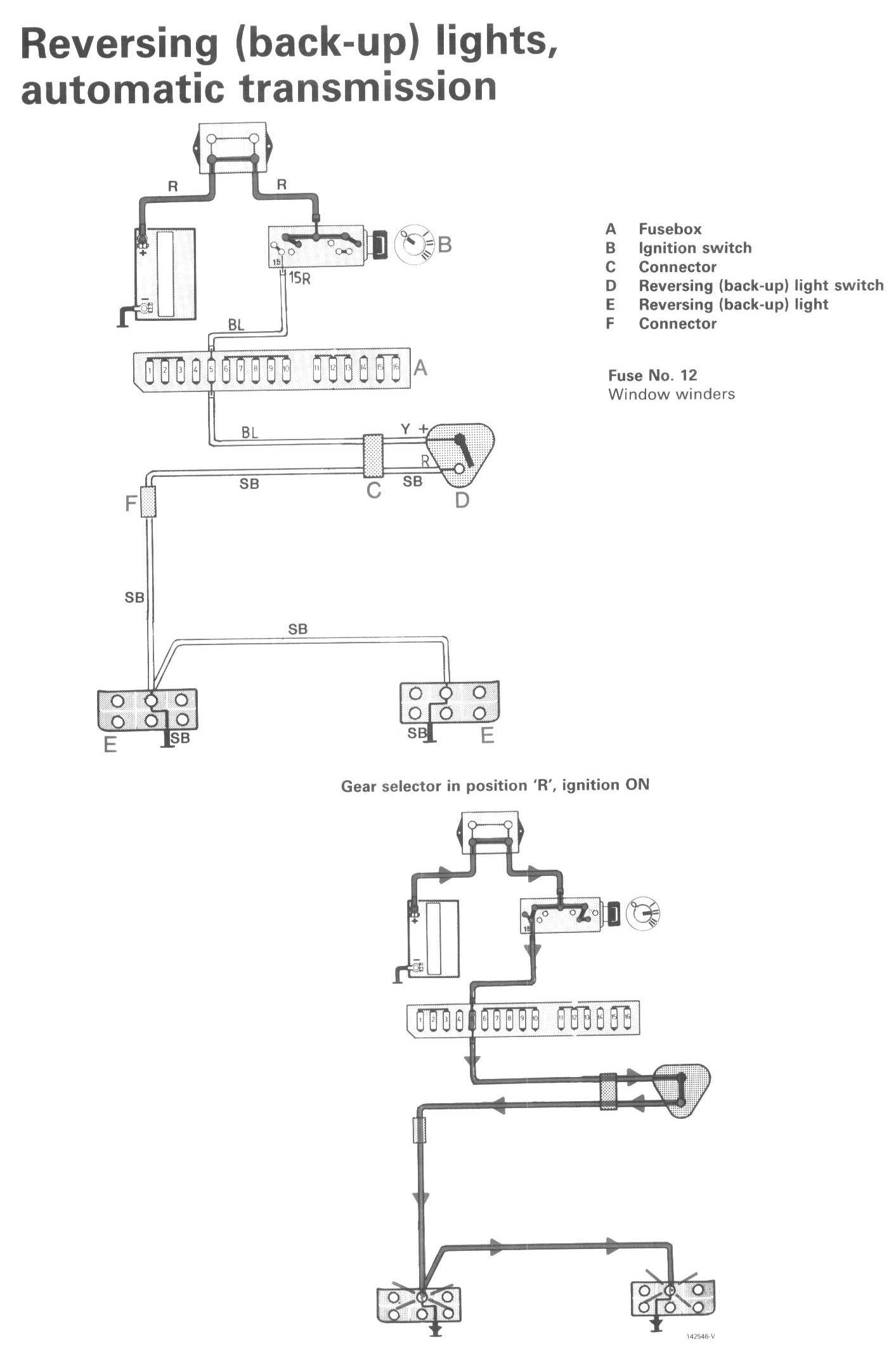

Wiring Diagrams:

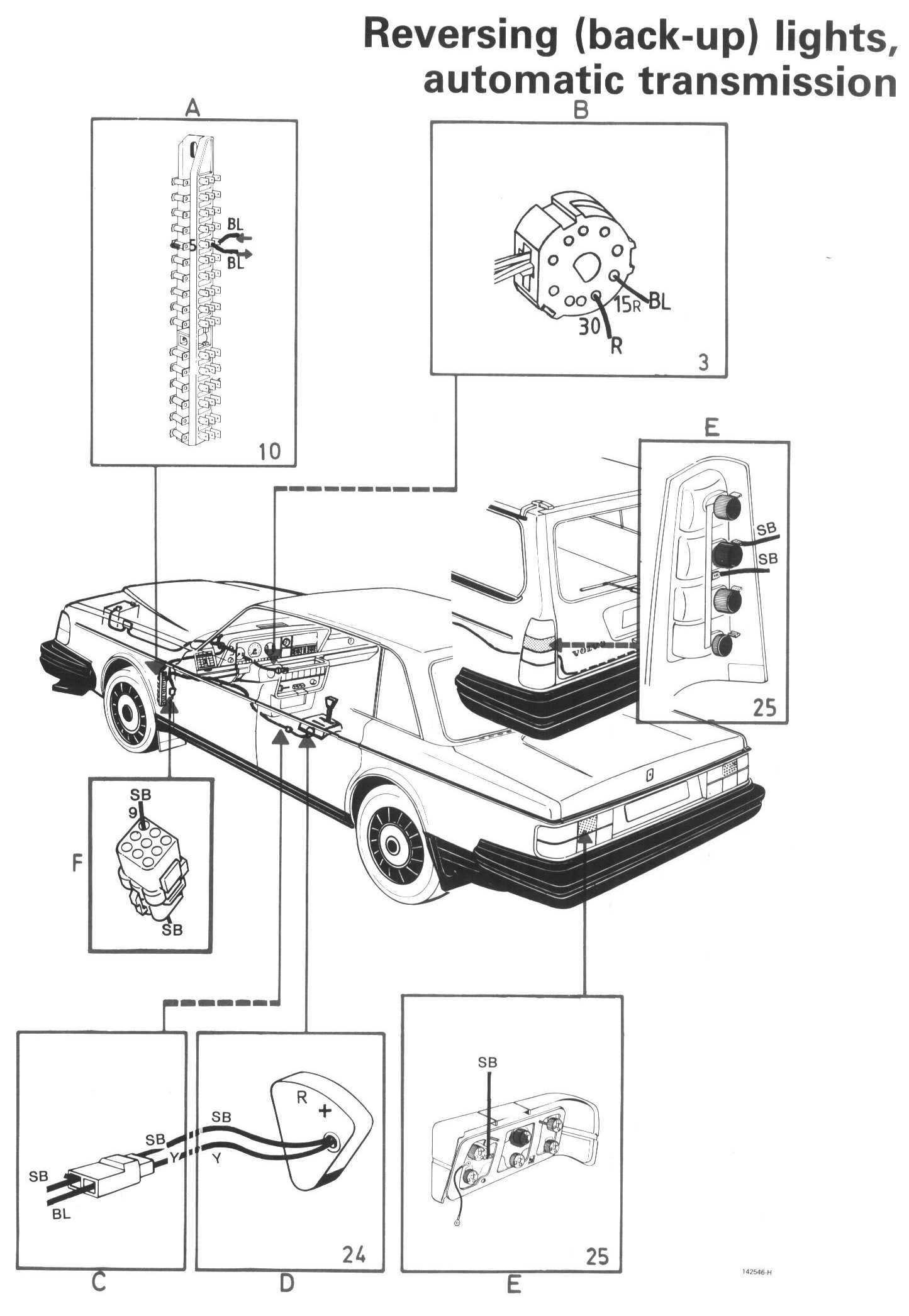

Component / Connector Views:

LEGEND
A Fusebox
B Ignition switch
C Connector
D Reversing (back-up) light switch
E Reversing (back-up) light
F Connector
