Powertrain Management: Locations

BD.Location Of Components

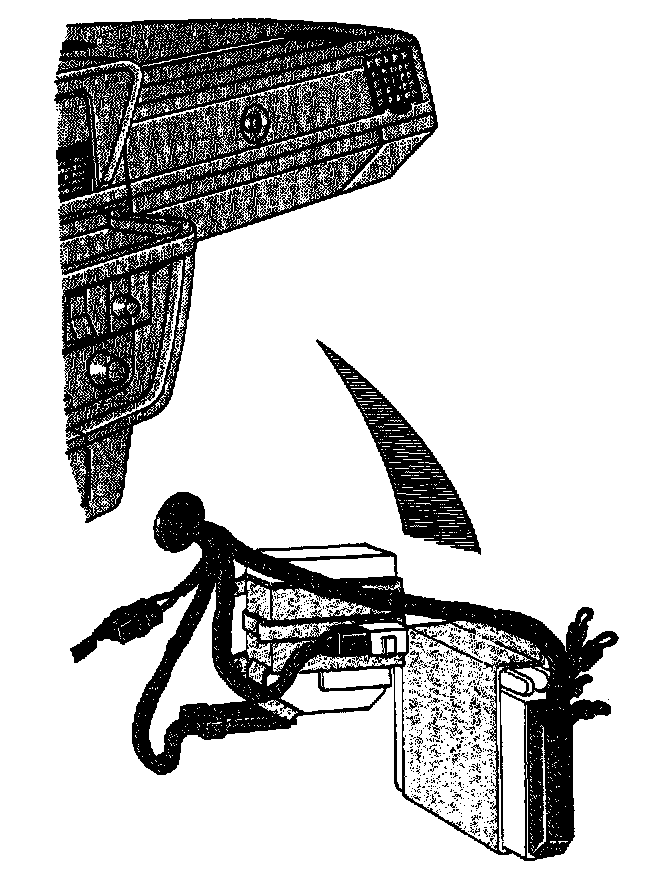

MFI LH 2.4/3.1 Control Module, DI EZ 116 K Control Module, And System Relay

Dashboard, right-hand side, inside trim.

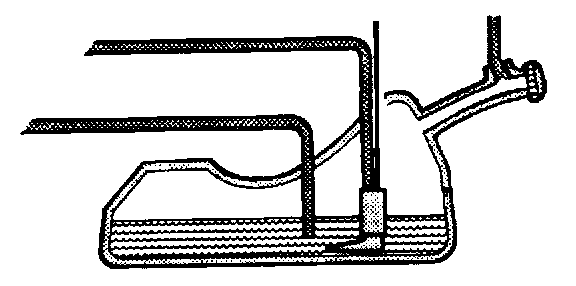

Tank Pump:

In the fuel tank.

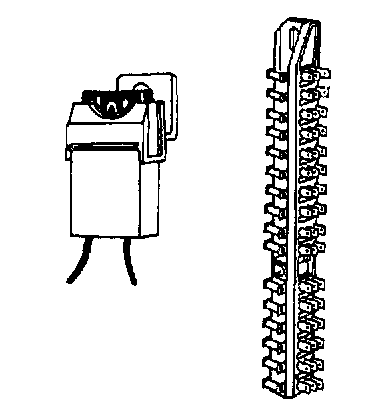

Heated Oxygen Sensor (HO2S)

1989-1990: In the front pipe before the TWC.

1991: In the TWC.

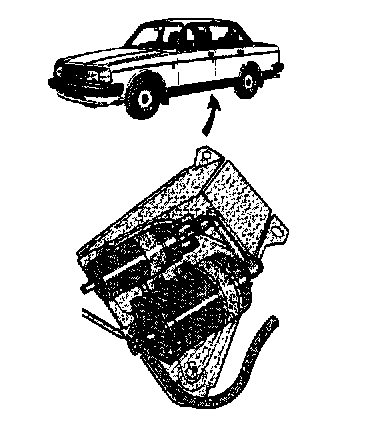

Fuel Pump (FP) And Fuel Filter:

On a shelf below the back seat, beneath the car.

Fuses:

Left-hand side of driver's kick panel.

System fuse located in left hand side of engine compartment, next to the battery.

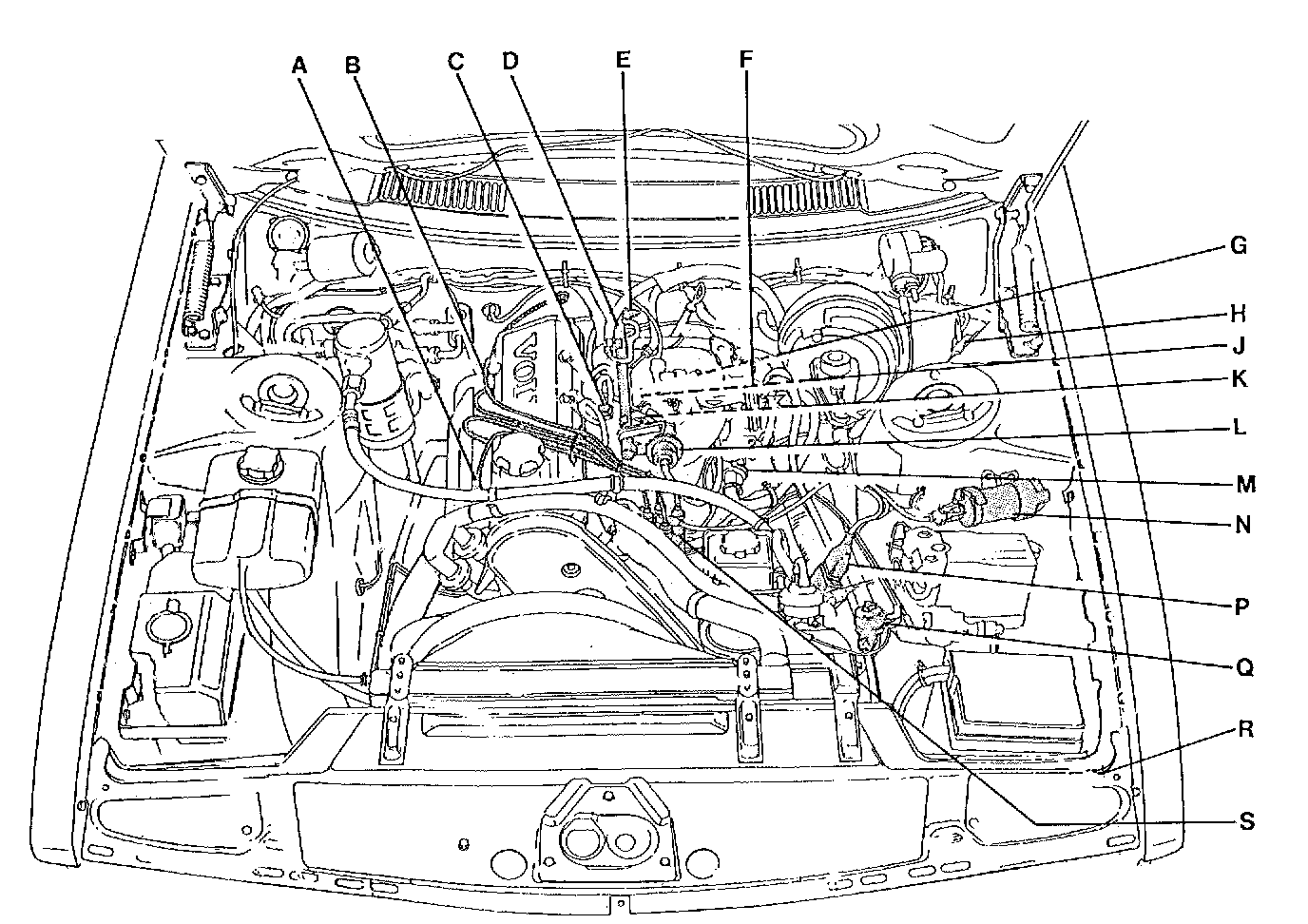

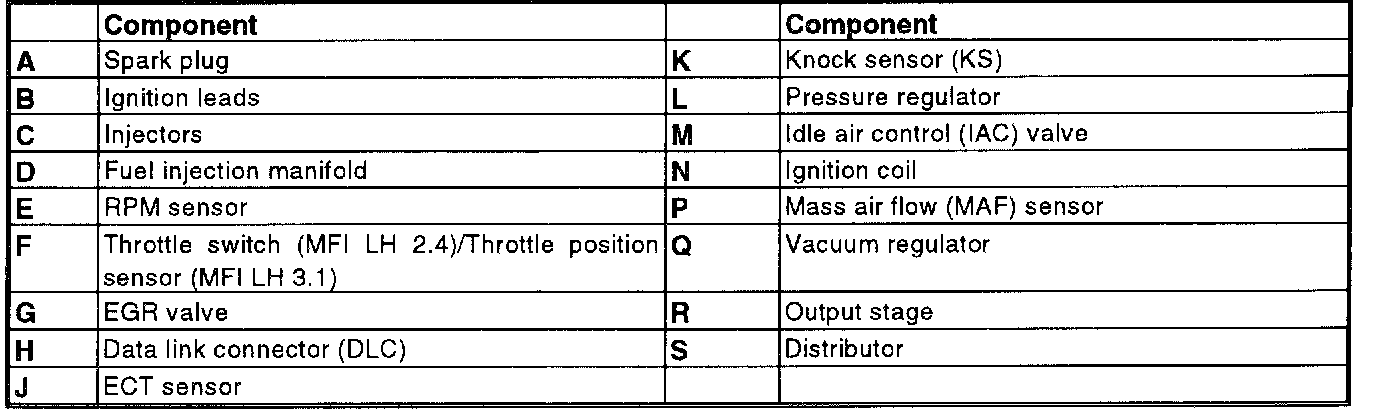

ENGINE COMPARTMENT
