Windscreen Wash/Wipe

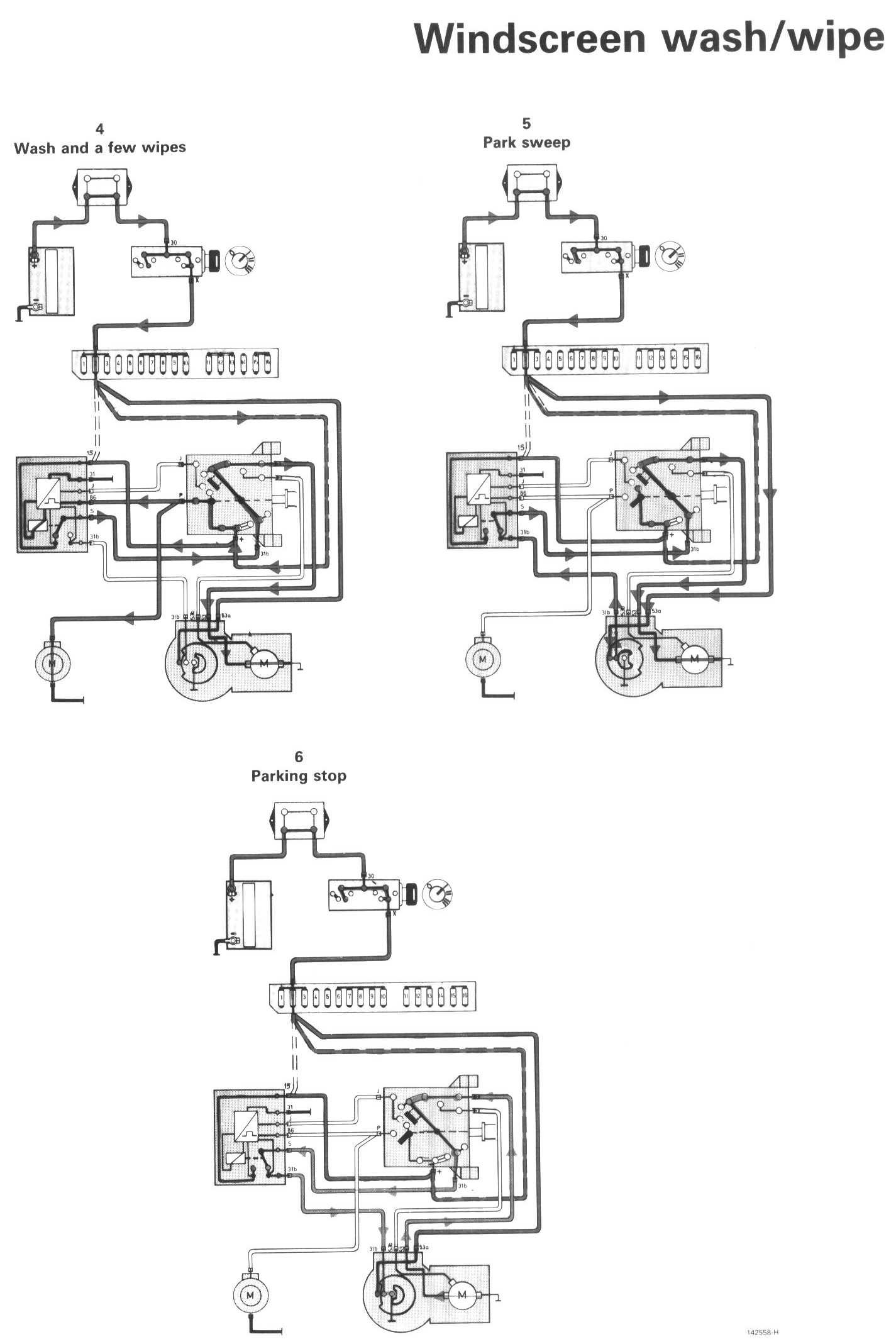

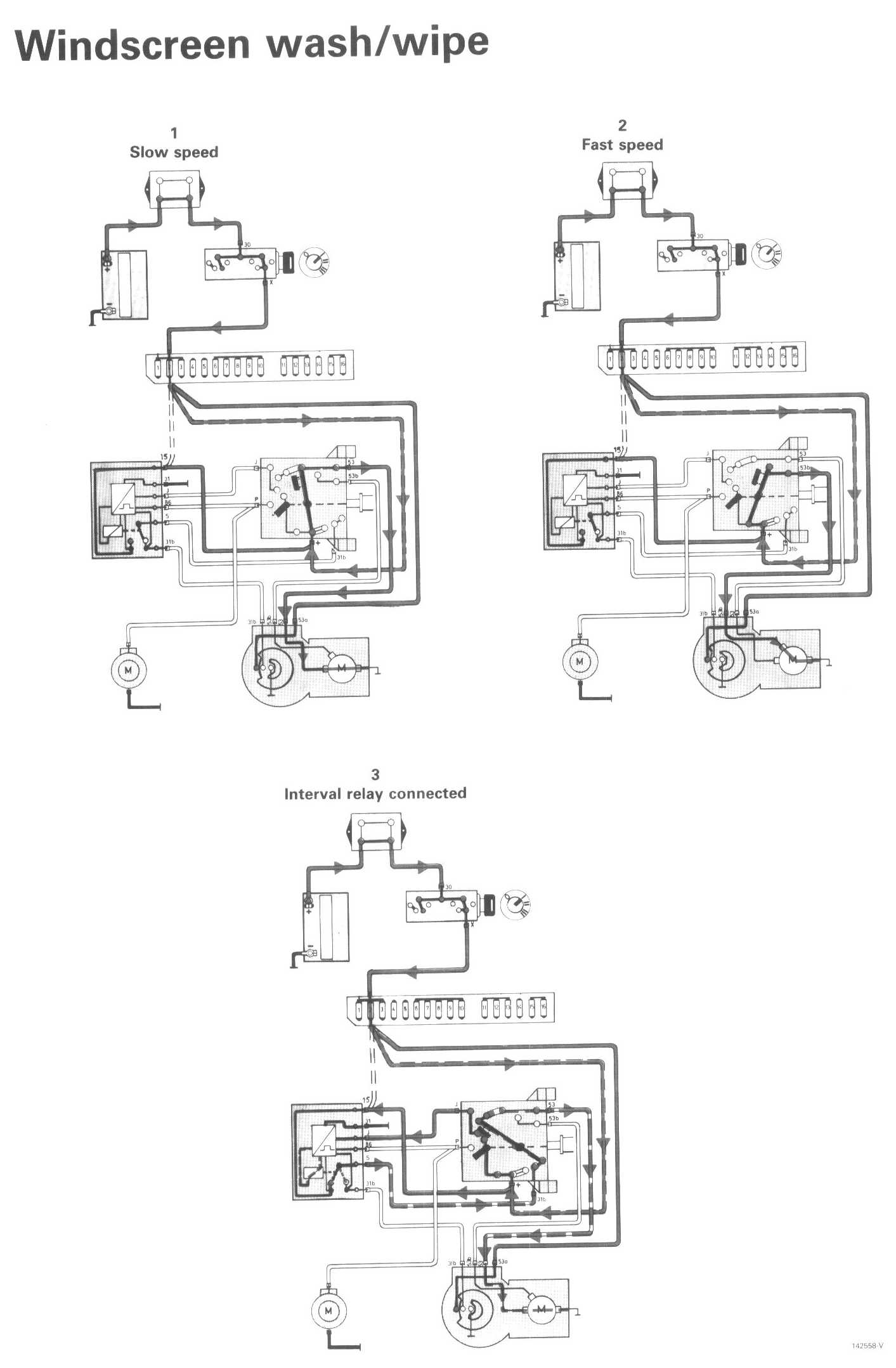

Wiring Diagrams:

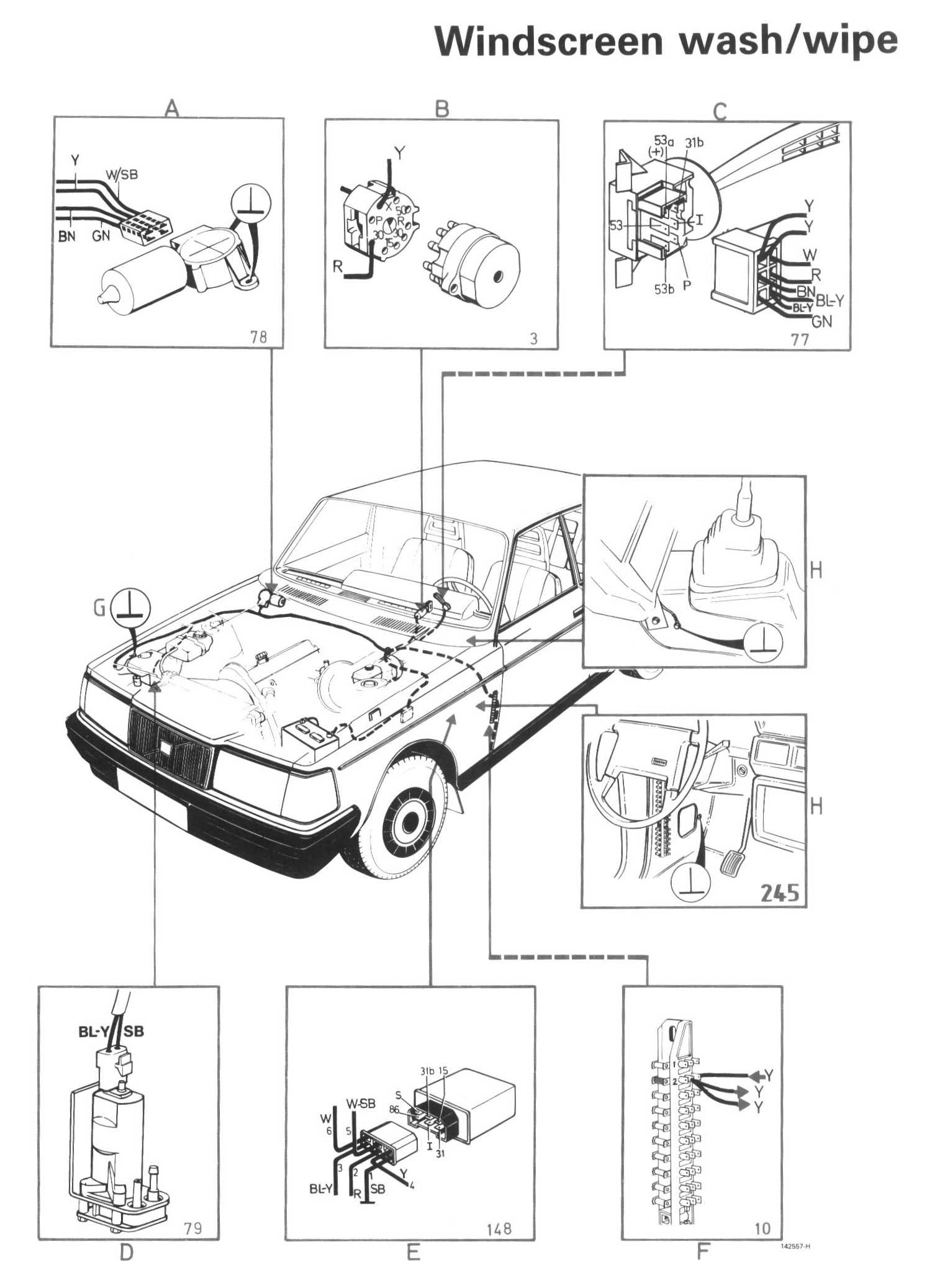

Component / Connector Views:

Conditions:

Conditions:

LEGEND
A Wiper motor
B Ignition switch
C Stalk for windscreen wash/wipe
D Washer motor
E Interval relay
F Fusebox
G Ground connection
H Ground connection
