Power Locks: Locations

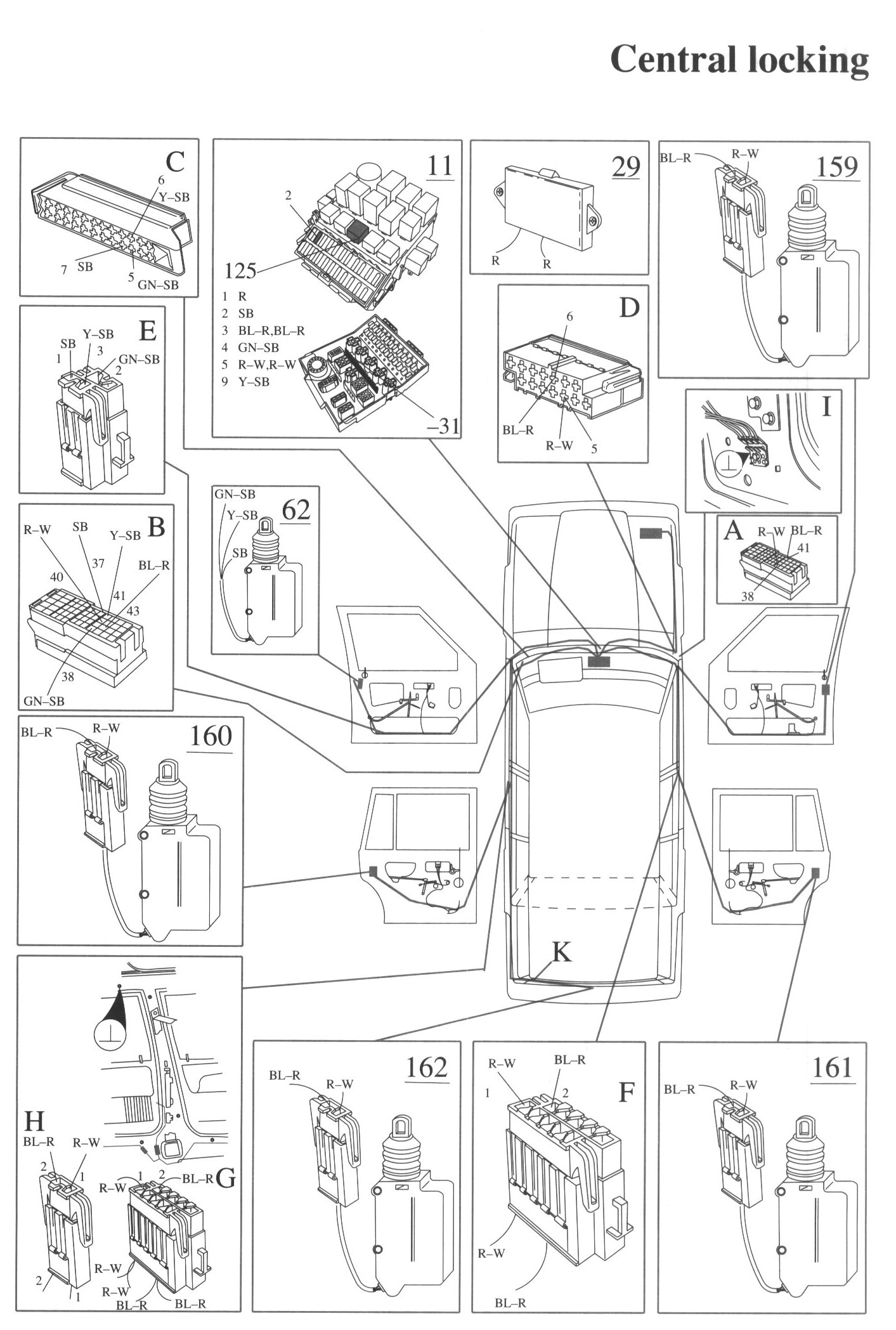

Component / Connector Views:

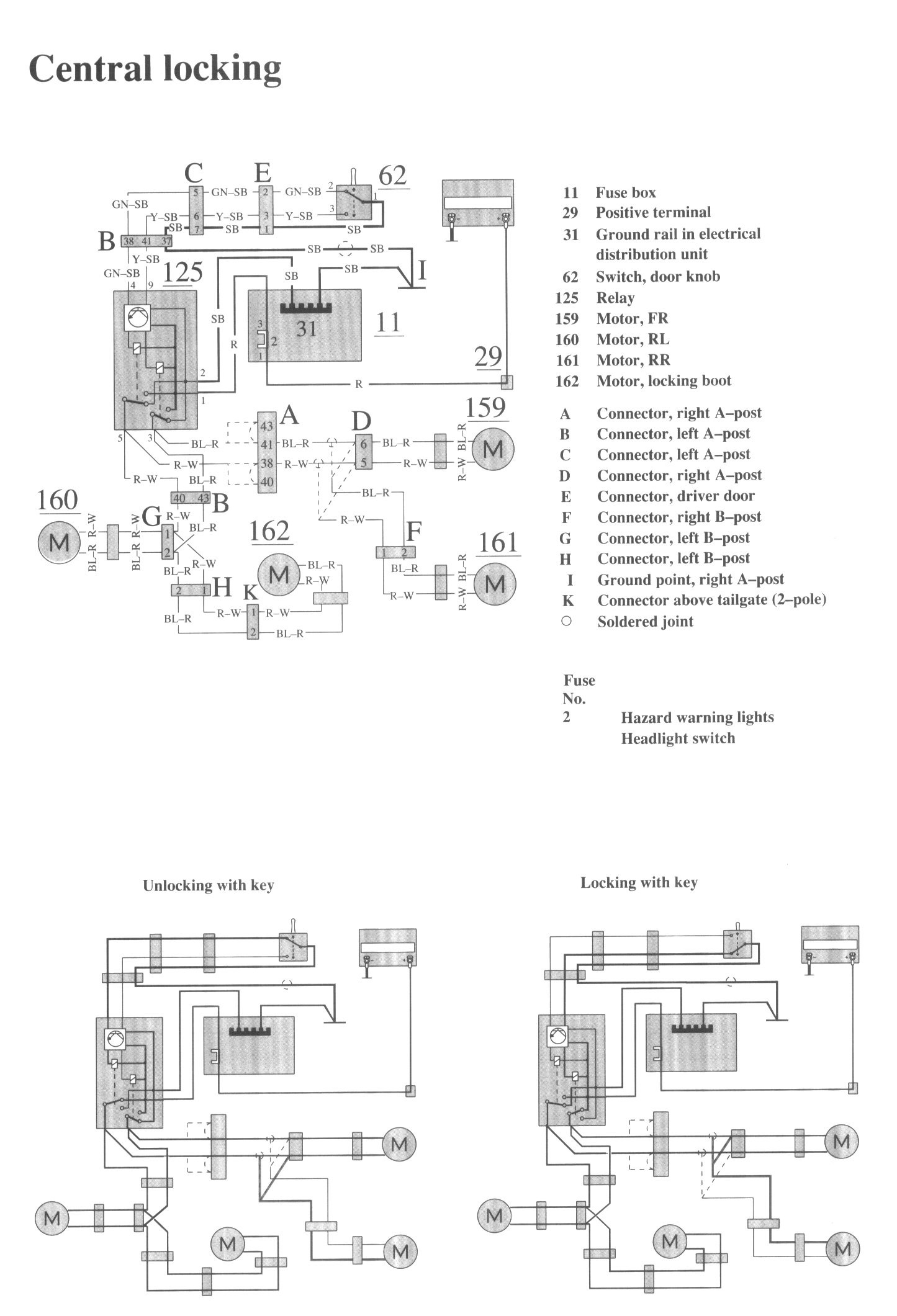

Wiring Diagrams:

LEGEND
11 Fusebox

29 Positive terminal
31 Ground rail in electrical distribution unit
62 Switch, door knob

125 Relay
159 Motor, FR
160 Motor, RL
161 Motor, RR
162 Motor, locking boot

A Connector, right A-post
B Connector, left A-post
C Connector, left A-post
D Connector, right A-post
E Connector, driver door
F Connector, right B-post
G Connector, left B-post
H Connector, left B-post
I Ground point, right A-post
K Connector above tailgate (2-pole)
