Sunroof / Moonroof: Locations

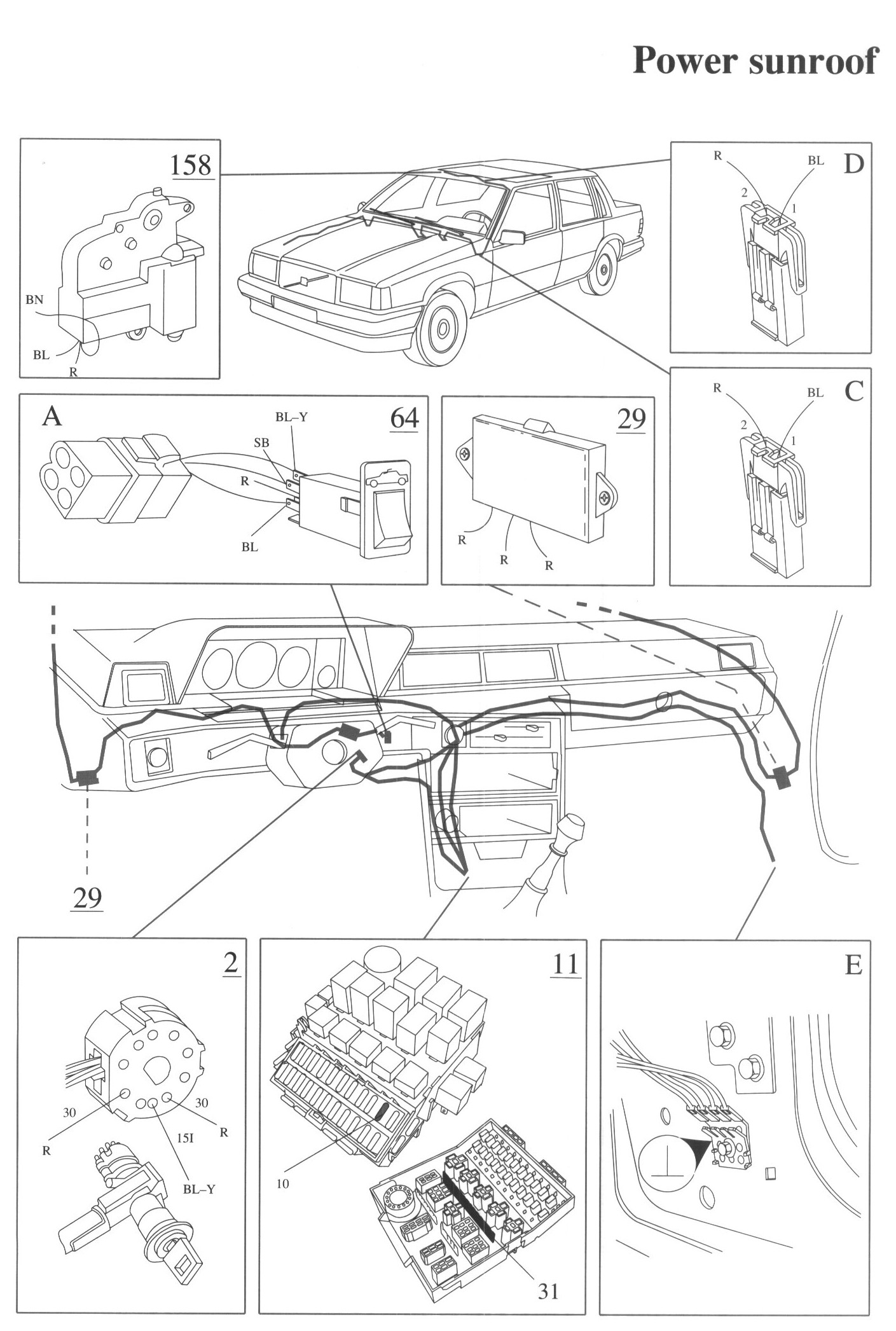

Component / Connector Views:

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
31 Ground panel in electrical distribution unit
64 Switch, power sunroof

158 Motor, power sunroof

A Connector, 4-pole
C Connector, left A-post
D Connector, motor
E Ground point, right A-post
