Heated Seats (Single Output)

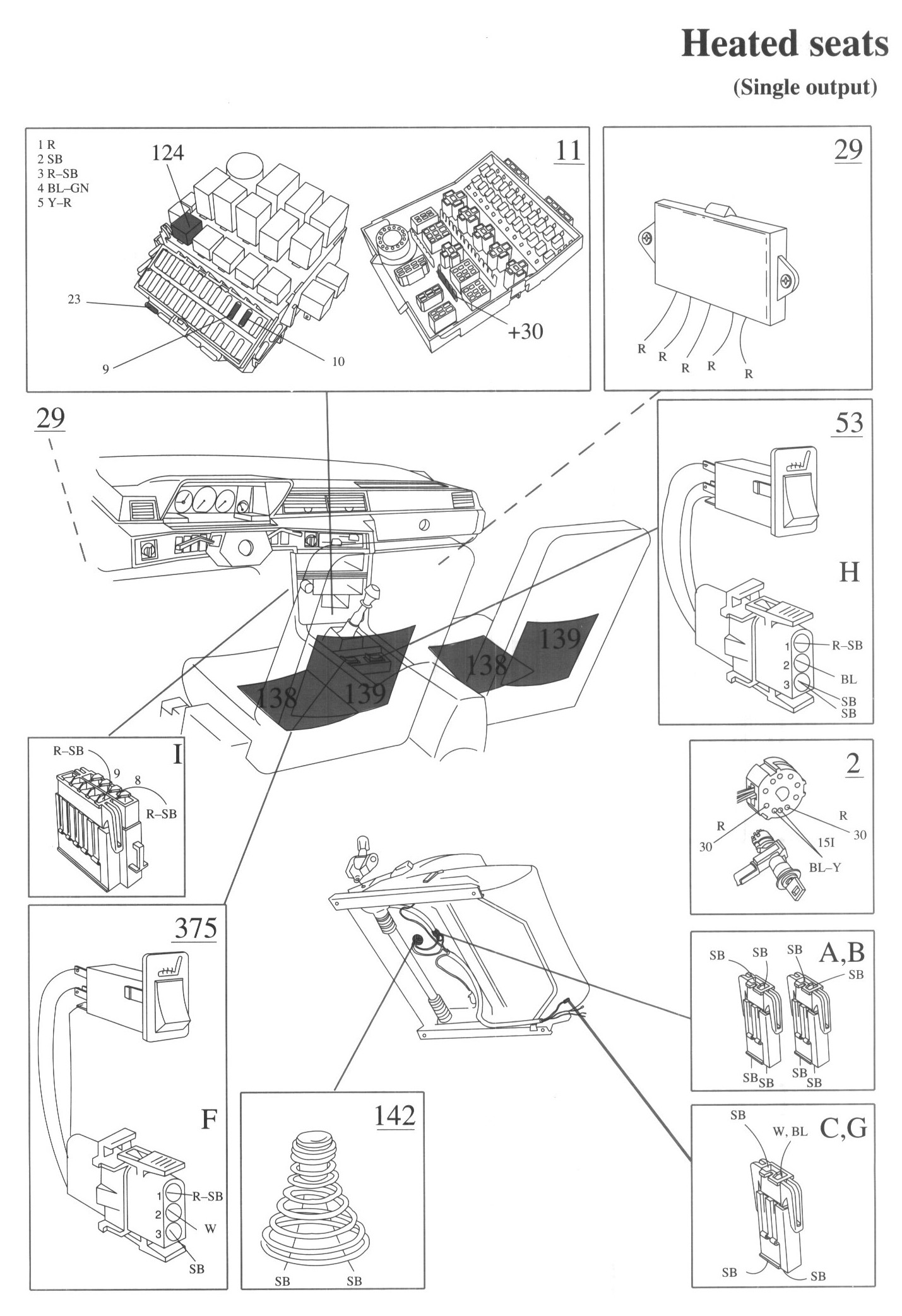

Component / Connector Views:

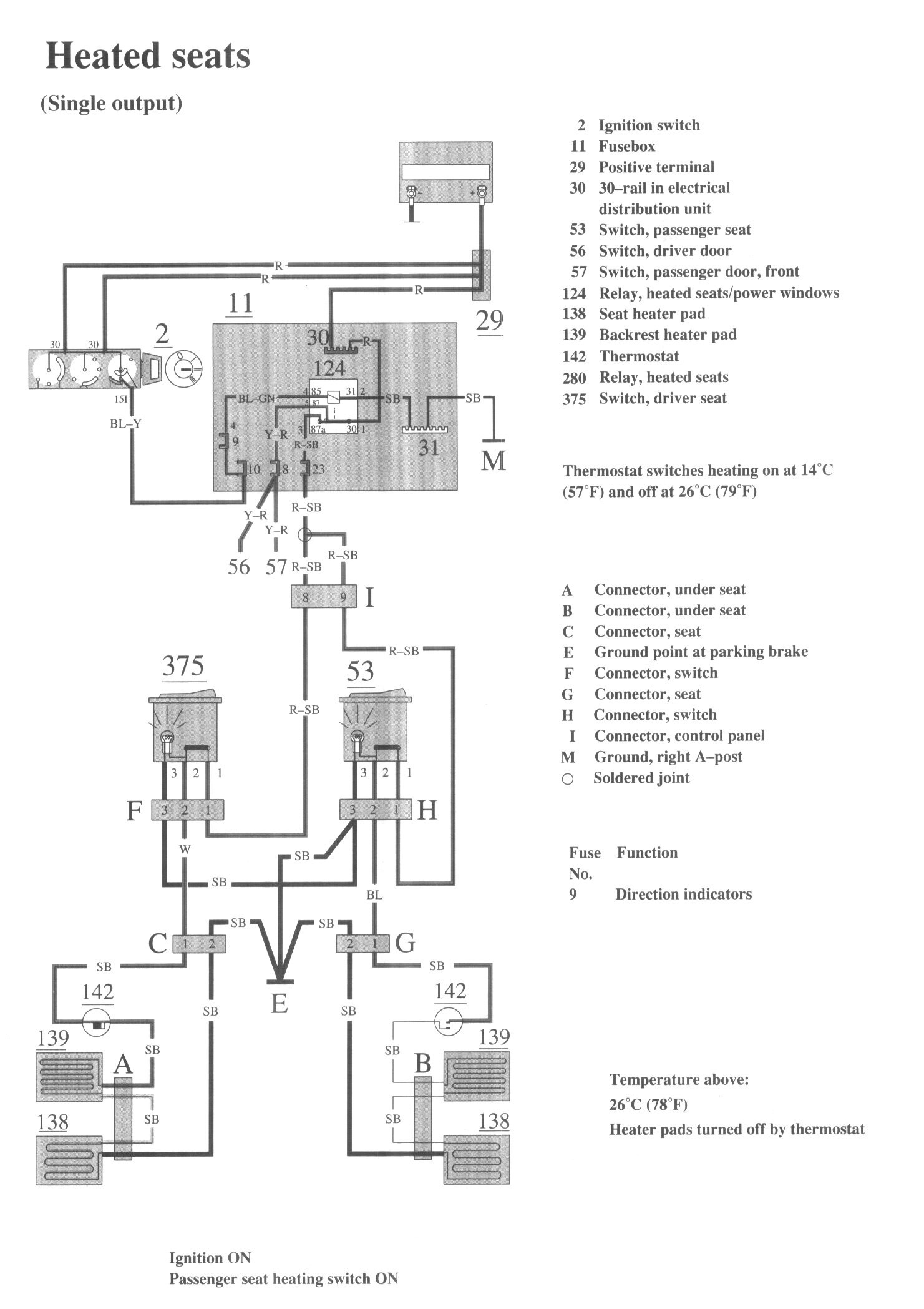

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
30 30-rail in electrical distribution unit
53 Switch, passenger seat
56 Switch, driver door
57 Switch, passenger door, front

124 Relay, heated seats/power windows
138 Seat heater pad
139 Backrest heater pad
142 Thermostat
280 Relay, heated seats
375 Switch, driver seat

A Connector, under seat
B Connector, under seat
C Connector, seat
E Ground point at parking brake
F Connector, switch
G Connector, seat
H Connector, switch
I Connector, control panel
M Ground, right A-post
